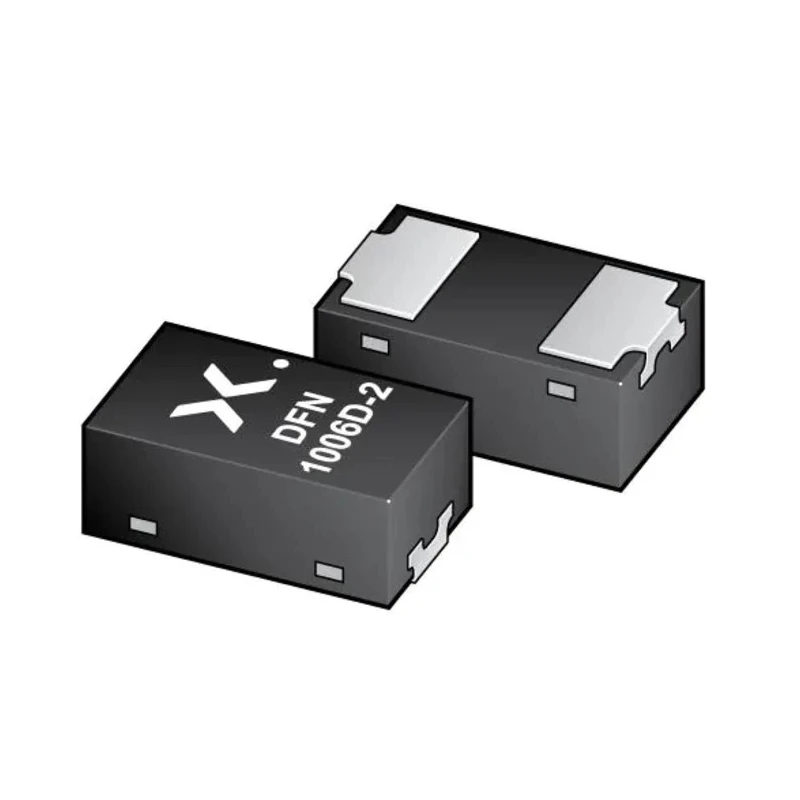

Nexperia Bi-Directional ESD Protection Diode 2-Pin DFN1006BD-2 PESD1ETH1G-LSYL

Nexperia PESD1ETH1G-LSYL Bi-Directional ESD Protection Diode in a 2-Pin DFN1006BD-2 surface mount package offers effective protection against electrostatic discharge events and transient voltage spikes. Designed for high-speed automotive and industrial communication lines, it safeguards sensitive electronics from damage caused by ESD, enhancing device reliability and longevity.

This device supports bi-directional protection, enabling it to clamp voltage spikes in both directions. With a maximum reverse stand-off voltage of 24 volts and a low clamping voltage of 3.3 volts, it limits transient voltages effectively, preventing component failure during surges.

Its compact dimensions (1 mm x 0.6 mm x 0.47 mm) allow integration in space-constrained applications while providing robust protection. The maximum peak pulse current rating of 2.3 amps supports withstand of high transient currents during ESD events. Maximum reverse leakage current remains low at 100 nA, ensuring minimal impact on circuit operation.

Compliant with AEC-Q101 automotive qualification standards and supporting IEC 61000-4-2 ESD protection up to 30 kV, the diode is suited for automotive network protection including IEEE 100/1000BASE-T1 Ethernet and Low-Voltage Differential Signaling (LVDS) use cases. It is ideal for protecting vehicle bus lines from electrostatic and transient damage in harsh environments.

The device operates reliably across a wide temperature range from -55°C to 150°C. Low capacitance below 1.8 pF allows usage in high-frequency data lines without signal degradation. The PESD1ETH1G-LSYL series from Nexperia provides essential transient voltage suppression to enhance system robustness.

The device supports bi-directional ESD protection for sensitive circuit components. Maximum reverse stand-off voltage is 24V ensuring reliable clamping under surge conditions. Compact DFN1006BD-2 package allows efficient board space utilization with dimensions of 1mm length, 0.6mm width, and 0.47mm height.

Maximum peak pulse current rating is 2.3A for transient suppression. Clamping voltage is rated at 3.3V for effective voltage limiting during ESD events. Operates over wide temperature range from -55°C to 150°C ensuring durability in automotive environments.

IEC 61000-4-2 ESD protection up to 30 kV and meets AEC-Q101 standard for automotive application robustness. Optimized low capacitance below 1.8 pF supports high-speed data transmission lines such as Ethernet and LVDS. Designed specifically for protection of automotive in-vehicle network bus lines and IEEE 100/1000BASE-T1 Ethernet compliance.

Features maximum reverse leakage current of 100 nA minimizing power loss in circuits. Automotive standard not applied; device is advised for automotive systems requiring ESD protection.
