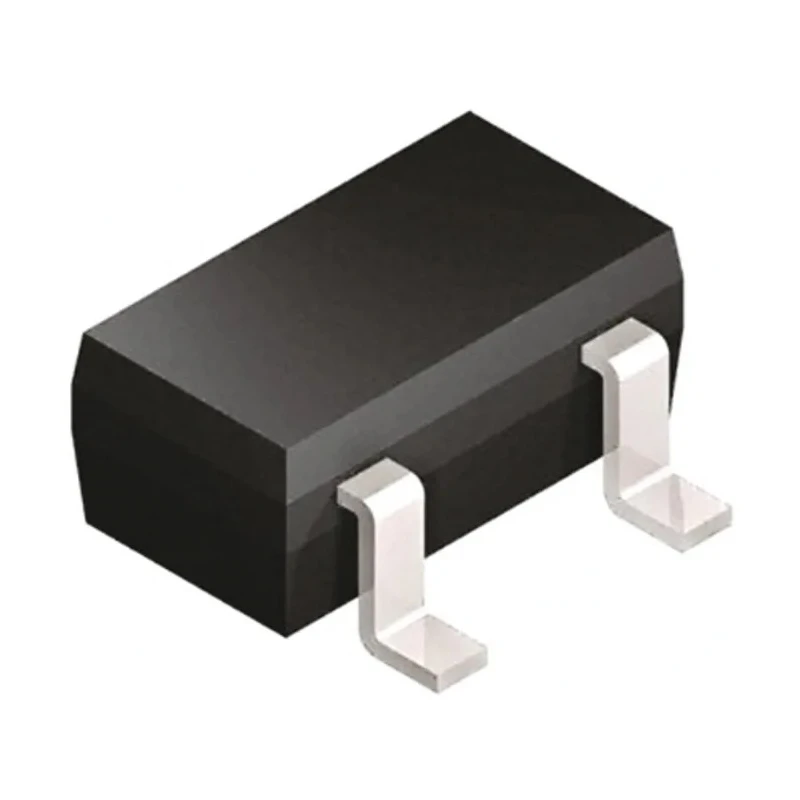

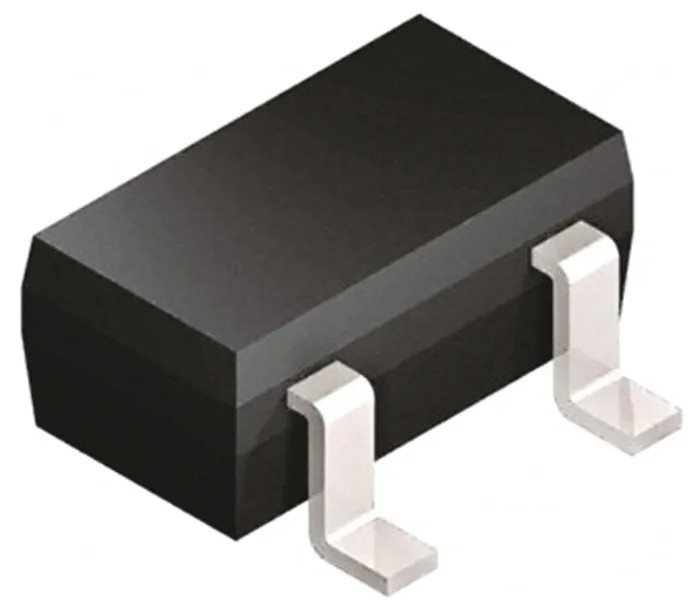

Vishay 30 V 200 mA Schottky Diode 3-Pin SOT-23 Package BAT54S-E3-08

Free Delivery in India | Lowest Global Shipping Charges

Vishay 30 V 200 mA Schottky Diode 3-Pin SOT-23 Package BAT54S-E3-08

Name: Vishay 30 V 200 mA Schottky Diode 3-Pin SOT-23 Package BAT54S-E3-08
Brand: Vishay
SKU: 376260
Price: 0.06 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	1.05mm
Length	3.1mm
Model	BAT54S-E3-08
Width	1.43mm
Mount Type	Surface
Series	BAT54
Maximum Operating Temperature	125°C
Package Type	SOT-23
Minimum Operating Temperature	-55°C
Pin Count	3
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	200mA
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Series
Rectifier Type	Schottky
Peak Reverse Current Ir	2μA
Peak Non-Repetitive Forward Surge Current Ifsm	600mA
Maximum Forward Voltage Vf	800mV
Peak Reverse Recovery Time trr	5ns

Key Features

Features a fast switching action with very low forward voltage drop for high efficiency.
Peak reverse repetitive voltage of 30 V ensures robust voltage handling.
Maximum forward voltage is 800 mV for low power dissipation.
Compact SOT-23 surface mount package with dimensions 3.1 x 1.43 x 1.05 mm.
Wide operating temperature range from -55°C to 125°C suited for various environments.
Peak reverse current limited to 2 µA for minimal leakage losses.
Peak non-repetitive forward surge current of 600 mA supports transient conditions.
Automotive standard AEC-Q101 qualified for reliability in automotive applications.

Product Description

Vishay BAT54S-E3-08 is a small signal Schottky diode designed for fast switching and low forward voltage drop in electronic and semiconductor applications. It is supplied in a 3-Pin SOT-23 package that is compact and suitable for surface mount technology to optimize PCB space.

This diode features a maximum continuous forward current of 200 mA and peak reverse repetitive voltage of 30 V, making it suitable for low voltage rectification and switching circuits. Its low maximum forward voltage of 800 mV reduces power dissipation and increases efficiency.

The device can operate reliably in extreme thermal environments with a minimum operating temperature of -55°C and a maximum of 125°C, ensuring stability across industrial and automotive conditions.

With a very low peak reverse current of 2 µA and a very fast switching time of 5 ns, this Schottky diode minimizes leakage and switching losses. It also withstands peak non-repetitive forward surge currents up to 600 mA, providing transient robustness.

The diode meets the AEC-Q101 automotive standard, qualifying it for demanding automotive electronics environments. Its compact height of 1.05 mm, width of 1.43 mm, and length of 3.1 mm facilitate easy integration into densely packed circuit boards.

Features fast switching and low forward voltage drop. Supports continuous forward current up to 200 mA. Peak reverse voltage rating of 30 V for reliable protection. Compact SOT-23 surface mount package dimensions. Wide operating temperature range from -55°C to 125°C.

AEC-Q101 automotive standard qualified for enhanced reliability. Low peak reverse current minimizes leakage losses. High surge current capability for transient conditions. Suitable for high-efficiency power and signal rectification in industrial, automotive, and consumer electronics.

The Vishay BAT54S-E3-08 Schottky diode is a reliable component for semiconductor switching, power rectification, and fast recovery applications. Its specifications and standards compliance make it ideal for use in automotive electronics, power supplies, signal processing circuits, and other demanding environments.

Explore more semiconductor and diode products at EnvMart to find components optimized for industrial, automotive, electronics manufacturing, and repair applications.

Explore more products in our Schottky Diodes & Rectifiers category.
