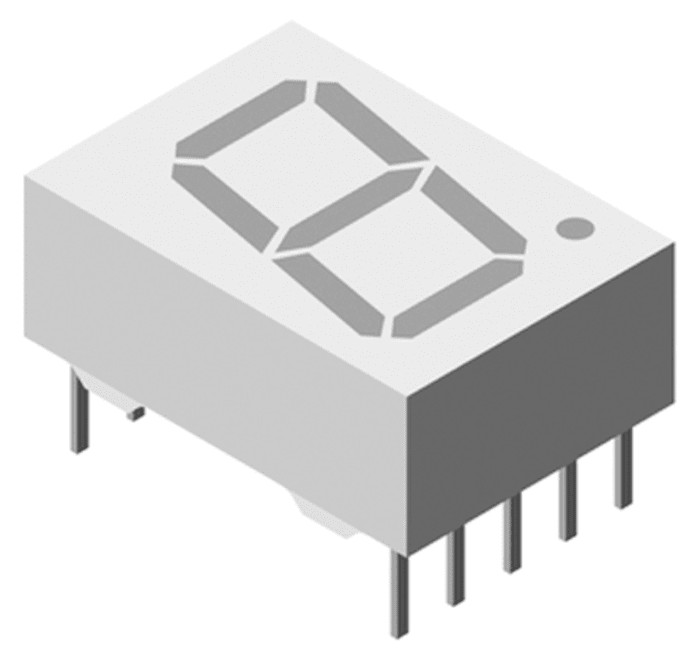

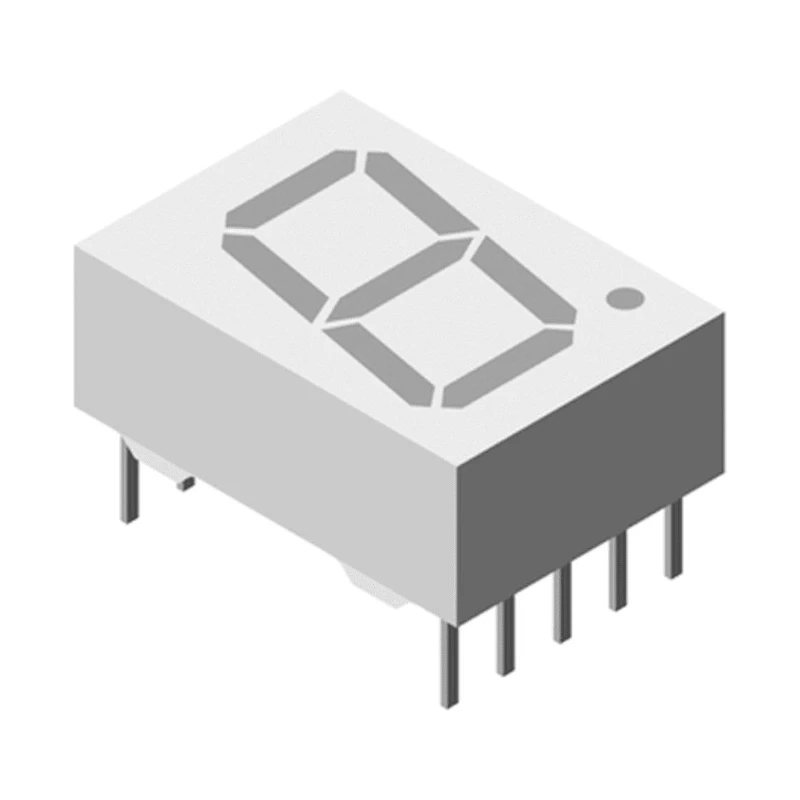

Vishay 1 7 Segment LED Display Anode Red 2mcd Right Side 13 mm TDSL5150

Free Delivery in India | Lowest Global Shipping Charges

Vishay 1 7 Segment LED Display Anode Red 2mcd Right Side 13 mm TDSL5150

Name: Vishay 1 7 Segment LED Display Anode Red 2mcd Right Side 13 mm TDSL5150
Brand: Vishay
SKU: 217627
Price: 1.64 USD
Availability: InStock



Category LED Displays Brand Vishay Condition New

Specifications

Country of Origin	India
Display Type	7 Segment
Brand	Vishay
Model	TDSL5150
Mount Type	Through Hole
Series	TDSL51.0
Character height	13mm
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number Of Segments	7
External Width	12.5mm
External Height	7mm
Power Dissipation	320mW
Luminous Intensity	2mcd
Standards/Approvals	WEEE 2002/96/EC, RoHS Directive 2002/95/EC
LED Colour	Red
Dominant Wavelength	625nm
Colour of Face	Grey
Forward Voltage	2.7V
Forward Current	15mA
Number of Characters	1
Character Width	7.4mm
Common Connection	Anode
Decimal Orientation	Right Side

Key Features

The LED color is red with a luminous intensity of 2 millicandela (mcd).
The character height is 13 mm with a width of 7.4 mm for clear visibility.
Common anode connection type supports easy circuit integration.
Operating temperature ranges from -40°C to 85°C ensuring durability in various environments.
Forward voltage is 2.7 volts with a power dissipation of 320 milliwatts.
The display has a grey face color and complies with WEEE 2002/96/EC and RoHS Directive 2002/95/EC standards.
The mount type is through-hole for secure PCB attachment.

Product Description

Vishay TDSL5150 is a 1-character, 7-segment LED display designed for industrial and electronic component applications requiring a rugged and clear numeric display solution. This LED display features a red LED color with a luminous intensity of 2mcd, making it suitable for clear visibility in control panels and instrumentation.

The character size measures 13 mm in height and 7.4 mm in width, with a right side decimal point orientation for enhanced readability in numerical readouts. It employs a common anode connection scheme and is designed for through-hole mounting, ensuring reliable electrical contact and physical stability on circuit boards.

Operating reliably between temperatures of -40°C and 85°C, the TDSL5150 is built to withstand harsh industrial environments. The display's forward voltage is rated at 2.7V with a maximum power dissipation of 320 mW, supporting efficient power management in embedded electronic systems.

The exterior dimensions of the display are 12.5 mm in width and 7 mm in height, with a grey face color giving it a professional appearance suitable for industrial and laboratory instruments.

The product complies with environmental standards including the WEEE 2002/96/EC and RoHS Directive 2002/95/EC, signaling its adherence to sustainability and hazardous material restrictions.

Red 7-segment LED with 2mcd luminous intensity for clear numeric display. Through-hole mount type offers mechanical stability on PCBs. Designed for industrial, laboratory, and commercial electronic displays. Wide operating temperature ensures suitability for diverse applications.

Compliance with major environmental directives.

This Vishay LED display is ideal for use in instrumentation panels, industrial control systems, and digital readout devices where clear, reliable numeric indication is required. Its construction and specifications align with rigorous industrial standards to deliver dependable performance.
