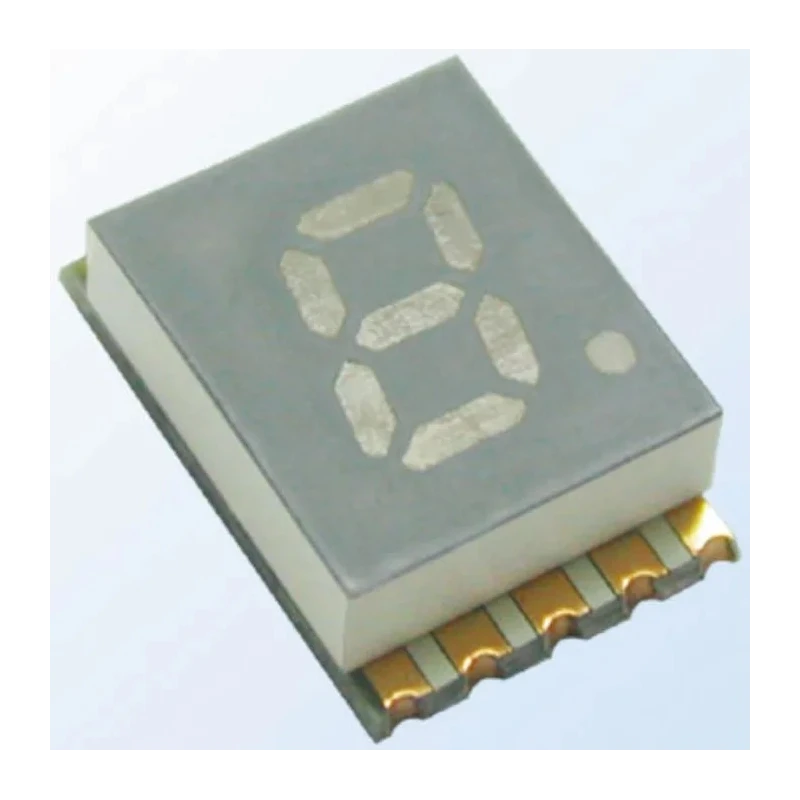

Kingbright 1 Digit 7 Segment LED Display Orange Cathode Surface Mount 601nm 37mcd 5.1mm KCSC02-106

Free Delivery in India | Lowest Global Shipping Charges

Kingbright 1 Digit 7 Segment LED Display Orange Cathode Surface Mount 601nm 37mcd 5.1mm KCSC02-106

Name: Kingbright 1 Digit 7 Segment LED Display Orange Cathode Surface Mount 601nm 37mcd 5.1mm KCSC02-106
Brand: Kingbright
SKU: 199093
Price: 3.64 USD
Availability: InStock



Category LED Displays Brand Kingbright Condition New

Specifications

Country of Origin	China
Display Type	7 Segment
Brand	Kingbright
Model	KCSC02-106
Mount Type	Surface
Character height	5.1mm
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number Of Segments	7
External Width	6.9mm
External Depth	3mm
External Height	10mm
Power Dissipation	75mW
Luminous Intensity	37mcd
Standards/Approvals	RoHS
LED Colour	Orange
Dominant Wavelength	601nm
Colour of Face	Grey
Forward Voltage	2.1V
Forward Current	30mA
Number of Characters	1
Character Width	3.2mm
Common Connection	Cathode
Decimal Orientation	Right Side

Key Features

The display features a character height of 5.1 mm and character width of 3.2 mm.
It uses a surface mount type for easy PCB integration.
Luminous intensity is rated at 37 millicandela with a dominant wavelength of 601 nm.
Designed for operation within -40°C to 85°C temperature range.
The display has a right side decimal orientation and grey face with white segments.
Forward voltage of 2.1 V and forward current of 30 mA ensure reliable performance.
Power dissipation is 75 mW, compliant with RoHS standards.

Product Description

Kingbright KCSC02-106 is a surface mount 1 digit 7 segment LED display featuring an orange LED colour and common cathode connection. It is engineered for electronic displays in various industrial, laboratory, and commercial applications where clear numeric representation is required.

The display has a character height of 5.1 mm and width of 3.2 mm, offering excellent visibility and contrast due to its grey face and white segment design. It is categorized for luminous intensity with 37 millicandela brightness at a dominant wavelength of 601 nm, ensuring vivid orange illumination.

This display supports a decimal point on the right side and is mechanically rugged, designed to operate reliably in ambient temperatures ranging from -40°C to 85°C. The forward voltage of 2.1 V and forward current of 30 mA make it suitable for low current operation, with power dissipation limited to 75 mW.

The product complies with RoHS standards, making it environmentally friendly. Its compact external dimensions of 6.9 mm width, 10 mm height, and 3 mm depth enable easy mounting on printed circuit boards or sockets in electronic assemblies.

Applications include electronic instrumentation, measurement devices, display modules for industrial and HVAC systems, and electronic signage. The product's durable build and standardized mounting facilitate integration into diverse systems.

The display features a character height of 5.1 mm and character width of 3.2 mm. It uses a surface mount type for easy PCB integration. Luminous intensity is rated at 37 millicandela with a dominant wavelength of 601 nm.

Designed for operation within -40°C to 85°C temperature range. The display has a right side decimal orientation and grey face with white segments. Forward voltage of 2.1 V and forward current of 30 mA ensure reliable performance.

Power dissipation is 75 mW, compliant with RoHS standards. Explore more industrial and electronic component solutions in EnvMart’s LED Displays category, featuring quality products from Kingbright and other trusted brands.
