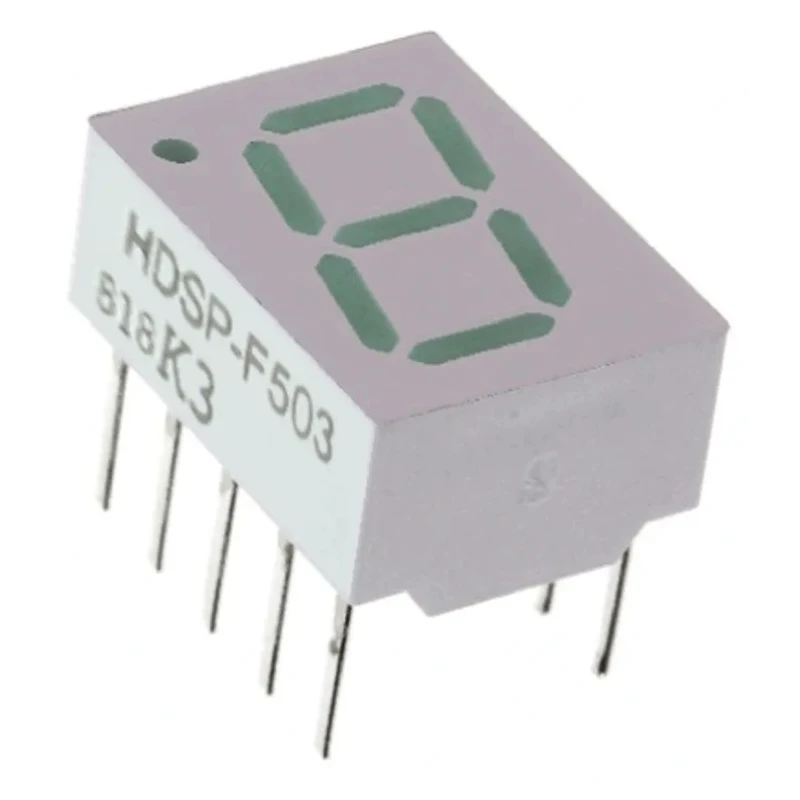

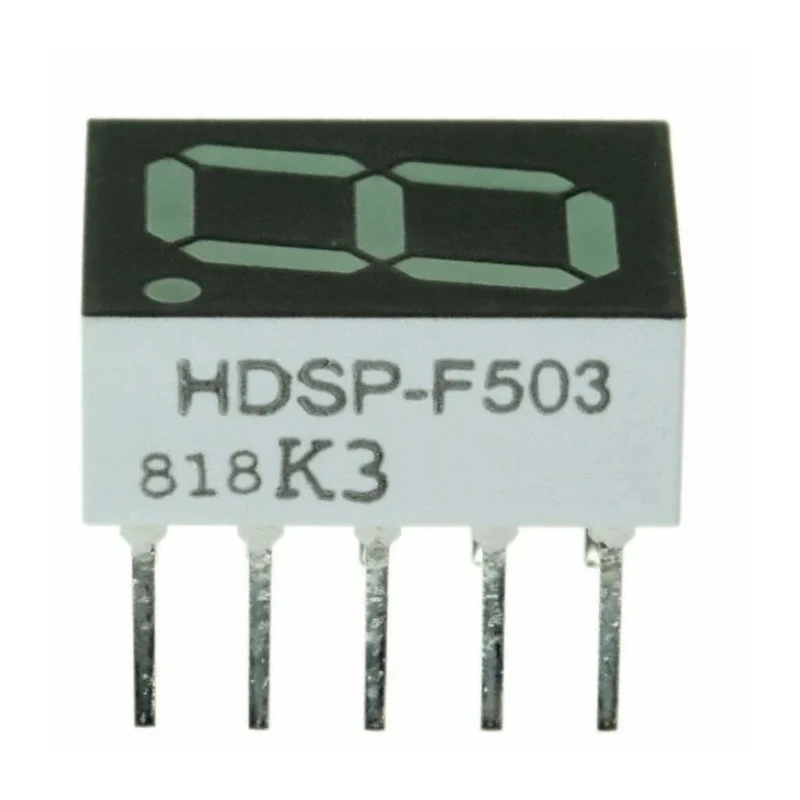

Broadcom 1 Digit 7-Segment Green LED Display Cathode Right Side Decimal 10.2mm Character Height HDSP-F503

Free Delivery in India | Lowest Global Shipping Charges

Broadcom 1 Digit 7-Segment Green LED Display Cathode Right Side Decimal 10.2mm Character Height HDSP-F503

Name: Broadcom 1 Digit 7-Segment Green LED Display Cathode Right Side Decimal 10.2mm Character Height HDSP-F503
Brand: Broadcom
SKU: 179270
Price: 4.02 USD
Availability: InStock



Category LED Displays Brand Broadcom Condition New

Specifications

Country of Origin	India
Display Type	7 Segment
Brand	Broadcom
Model	HDSP-F503
Mount Type	Through Hole
Character height	10.2mm
Maximum Operating Temperature	100°C
Minimum Operating Temperature	-40°C
Number Of Segments	7
External Width	9.8mm
External Depth	6.4mm
External Height	12.9mm
Luminous Intensity	3.5mcd
Standards/Approvals	RoHS
LED Colour	Green
Dominant Wavelength	571nm
Colour of Face	Grey
Forward Voltage	2.1V
Forward Current	30mA
Number of Characters	1
Character Width	5.6mm
Common Connection	Cathode
Decimal Orientation	Right Side
HDSP-F501 Broadcom 7-Segment LED Display, CA Green 3.5 mcd RH DP 10.2mmBrand	Broadcom

Key Features

This LED display has a single character and seven segments.
It employs a common cathode connection and is through-hole mounted.
The green LED emits light with a dominant wavelength of 571nm and a luminous intensity of 3.5mcd.
Character width is 5.6mm with external dimensions of 9.8mm width, 12.9mm height, and 6.4mm depth.
Operating temperature range is from -40°C to 100°C, suitable for harsh environments.
Forward voltage is rated at 2.1V with a forward current of 30mA.
The product features a grey face and complies with RoHS standards.
It is ideal for electronic devices requiring numeric display in industrial and consumer applications.

Product Description

Broadcom HDSP-F503 is a high-quality 1 digit 7-segment green LED display designed for reliable numeric indication. Featuring a common cathode configuration and right side decimal point orientation, it offers clear readability with a character height of 10.2 mm and a character width of 5.6 mm. The green LED emits at a dominant wavelength of 571 nm with a luminous intensity of 3.5 mcd, ensuring visible indication in various lighting conditions.

This LED display has external dimensions of 9.8 mm in width, 12.9 mm in height, and 6.4 mm in depth, facilitating easy integration in electronic devices. It is mounted through-hole, making it compatible with standard PCB assembly processes.

Designed to operate reliably between -40°C and 100°C, the display suits a wide range of industrial, consumer electronics, instrumentation, and HVAC applications. The forward voltage specification is 2.1 V with a forward current of 30 mA, optimized for low power consumption and longevity.

The HDSP-F503 features a grey face and complies with RoHS standards, underscoring its environmental compliance and quality assurance. Key Features:. Single-digit 7-segment green LED display with cathode common connection.

Right side decimal point orientation for enhanced numeric clarity. Character dimensions: 10.2 mm height, 5.6 mm width. External size: 9.8 mm width × 12.9 mm height × 6.4 mm depth. Operating temperature range: -40°C to 100°C for robust performance.

Forward voltage of 2.1 V and forward current of 30 mA for efficient operation. RoHS compliant and grey face color.

This product is widely used in industrial automation, consumer electronics, instrumentation panels, measurement devices, and HVAC display units. Its blend of precision, durability, and visibility makes it a dependable component for numeric LED display solutions.

Explore more high-quality LED display modules and components from Broadcom and other leading brands on EnvMart.

Explore more products in our LED Displays category.
