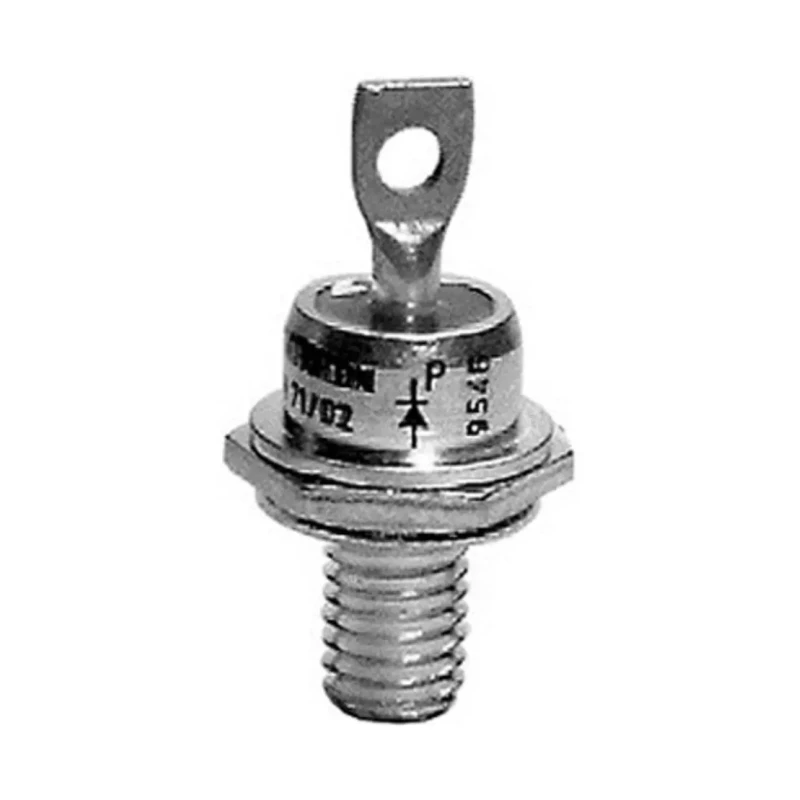

Semikron Danfoss 1600 V 95 A High Voltage Stud Anode Diode 2-Pin E-11 SKN 71/16

Semikron Danfoss SKN 71/16 is a high voltage, high current stud mounting rectifier diode designed for industrial power rectification applications requiring robust performance and thermal reliability. Rated for a maximum continuous forward current of 95 A and a peak reverse repetitive voltage of 1600 V, this diode is housed in a screw mount E-11 package that offers excellent thermal coupling to the heatsink, ensuring high operating temperatures up to 180°C are manageable.

Its stud anode configuration provides a reliable electrical connection with low resistance. The diode's maximum forward voltage of 1.5 V supports efficient conduction while minimizing power loss. It withstands peak non-repetitive forward surge currents up to 1.2 kA, making it suitable for applications with high transient current requirements.

Dimensions include a height and length of 36.6 mm and a diameter of 17 mm, making it compact yet sturdy for integration into power electronics. Pin count is 2, reflecting its straightforward connectivity for power circuits.

This diode is ideal for use in power supply rectification, industrial machinery, motor drives, and other heavy-duty electrical and electronic equipment requiring high voltage and current handling capabilities. The lack of specific automotive or other certifications indicates general industrial and commercial usage suitability.

This diode supports a maximum continuous forward current of 95 amps. It has a peak reverse repetitive voltage of 1600 volts for high voltage operation. The diode configuration is stud anode with a robust hermetically sealed case for reliability.

Maximum forward voltage is 1.5 volts ensuring efficient conduction. It operates reliably from -40°C up to a maximum temperature of 180°C. The device features a peak non-repetitive forward surge current of 1.2 kA for surge tolerance.

The package type is E-11 with screw mount for effective thermal coupling to heatsinks. Height and length dimensions are 36.6 mm, with a diameter of 17 mm for mounting compatibility. Designed without automotive or additional standards but made in Brazil ensuring manufacturing quality.

Pin count is 2 supporting straightforward installation in industrial power rectifier setups. Explore other high voltage diode rectifiers and semiconductor components available on EnvMart for your power electronics needs.
