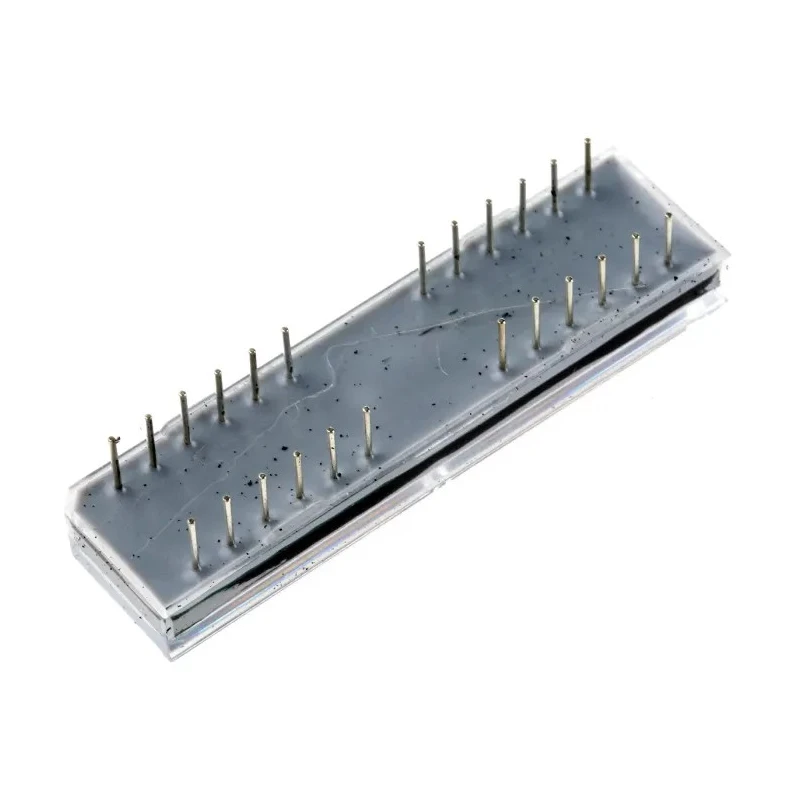

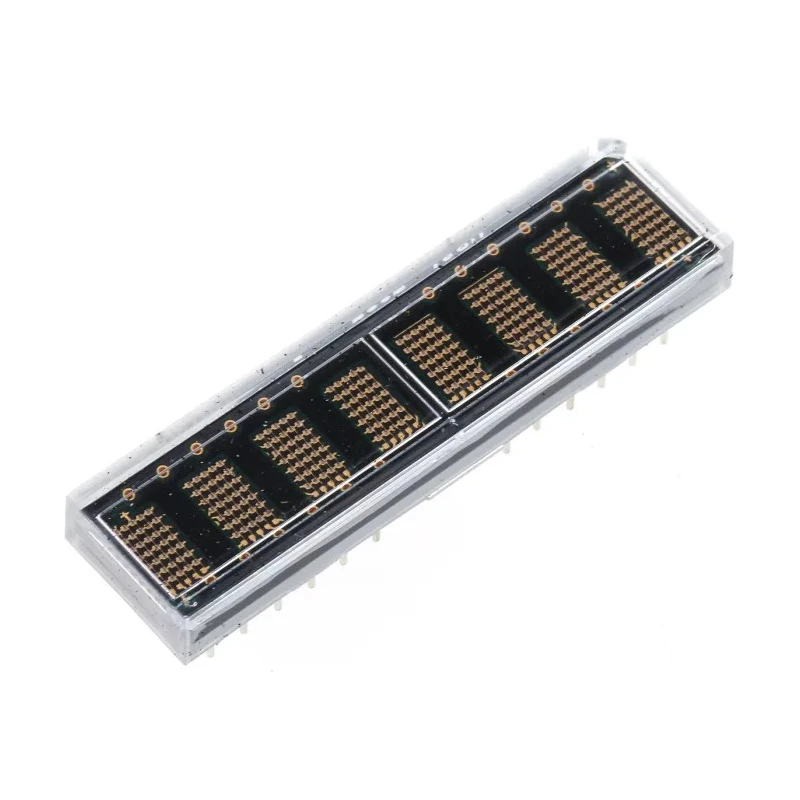

Broadcom 8 Dot Matrix LED Display Green, Orange, Yellow, Red 7.5mcd 4.6mm HDSP-2532

Free Delivery in India | Lowest Global Shipping Charges

Broadcom 8 Dot Matrix LED Display Green, Orange, Yellow, Red 7.5mcd 4.6mm HDSP-2532

Name: Broadcom 8 Dot Matrix LED Display Green, Orange, Yellow, Red 7.5mcd 4.6mm HDSP-2532
Brand: Broadcom
SKU: 180993
Price: 83.38 USD
Availability: InStock



Category LED Displays Brand Broadcom Condition New

Specifications

Country of Origin	India
Display Type	Dot Matrix
Brand	Broadcom
Model	HDSP-2532
Mount Type	Through Hole
Series	HDSP-253x
Character height	4.6mm
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
External Width	42.9mm
External Depth	11.4mm
External Height	5.3mm
Luminous Intensity	7.5mcd
Standards/Approvals	RoHS
Applications include	computer peripherals, industrial instrumentation, portable data entry devices, telecommunications, test equipment
LED Colour	Green, Orange, Yellow, Red
Dominant Wavelength	626nm
Colour of Face	Black
Forward Voltage	5.5V
Forward Current	300mA
Number of Characters	8
Character Width	2.5mm

Key Features

This LED display features an 8-character 5x7 dot matrix design for alphanumeric output.
It supports programmable multi-level dimming and blanking functions.
Constructed with through-hole mounting for easy PCB integration.
Operating temperature ranges from -40°C to 85°C for versatile industrial use.
The display uses 5.5V forward voltage and a forward current of 300mA.
Bright black face color enhances display contrast and readability.
Applications include computer peripherals, industrial instruments, portable data entry, telecommunications, and test equipment.

Product Description

Broadcom HDSP-2532 is an 8-character alphanumeric LED display from the HDSP-253x series, featuring a 5x7 dot matrix design with 4.6mm character height and a black face color. The display delivers a luminous intensity of 7.5mcd in multiple colors: green, orange, yellow, and red, covering a dominant wavelength of 626nm. It is designed for through-hole mounting with overall dimensions of 42.9mm width, 5.3mm height, and 11.4mm depth.

This programmable LED display supports multi-level dimming and blanking, and interfaces with microprocessor buses, making it versatile for various control and display functions. The device can operate reliably in harsh environments with a temperature range from -40°C up to 85°C and complies with RoHS standards, ensuring environmental safety.

Electrical characteristics include a forward voltage of 5.5V and a forward current of 300mA, optimized for efficient performance.

Typical use cases include computer peripheral displays, industrial instrumentation panels, portable data entry devices, telecommunications hardware, and test measurement equipment, providing clear, customizable visual readouts.

This LED display supports a full 128 ASCII character set and 16 user-definable characters. Its stackable X-Y design facilitates easy array assembly. Multi-color capability enhances display versatility for various signal and status indications.

The black display face improves contrast and legibility in diverse lighting conditions. Compact size and through-hole mounting allow seamless integration into electronic modules. Explore Broadcom LED Displays and other advanced electronic components on EnvMart for high-quality industrial applications.
