Kingbright 2-Digit 7 Segment Yellow LED Display Cathode 7.6 mm Character Height KCDC03-107

Free Delivery in India | Lowest Global Shipping Charges

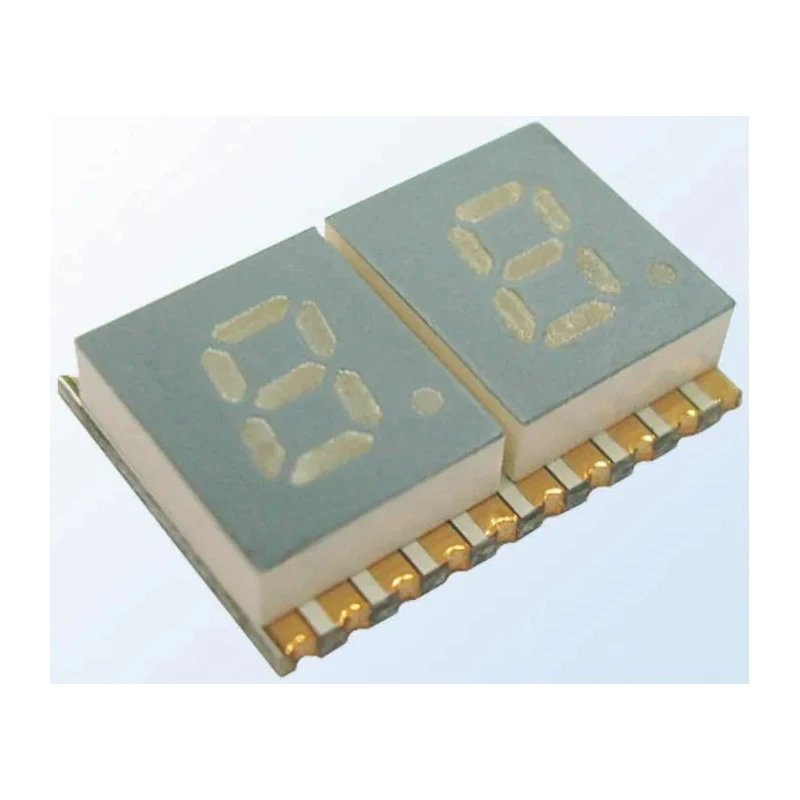

Kingbright 2-Digit 7 Segment Yellow LED Display Cathode 7.6 mm Character Height KCDC03-107

Name: Kingbright 2-Digit 7 Segment Yellow LED Display Cathode 7.6 mm Character Height KCDC03-107
Brand: Kingbright
SKU: 153406



Category LED Displays Brand Kingbright Condition New

Specifications

Country of Origin	China
Display Type	7 Segment
Brand	Kingbright
Model	KCDC03-107
Mount Type	Surface
Character height	7.6mm
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number Of Segments	7
External Width	14.8mm
External Depth	3.8mm
External Height	12mm
Power Dissipation	75mW
Luminous Intensity	36mcd
Standards/Approvals	RoHS
LED Colour	Yellow
Dominant Wavelength	590nm
Colour of Face	Grey
Forward Voltage	2V
Forward Current	30mA
Number of Characters	2
Character Width	4.2mm
Common Connection	Cathode
Decimal Orientation	Right Side

Key Features

Dual-digit 7 segment LED display suitable for clear numeric indication.
Yellow LED colour with dominant wavelength of 590 nm for high visibility.
Right side decimal orientation for precise numeric presentations.
Surface mount type with grey face and white segments for easy PCB integration.
Wide operating temperature range from -40°C to 85°C ensuring robust performance.
36 mcd luminous intensity delivering bright and clear display under various lighting conditions.
Low forward voltage of 2 V and forward current of 30 mA for energy efficiency.

Product Description

Kingbright KCDC03-107 is a high-quality dual-digit 7 segment LED display designed for electronic and industrial applications requiring clear numerical output. This model features yellow LEDs with a dominant wavelength of 590 nm, providing excellent visibility and strong luminous intensity of 36 mcd. The display utilizes a common cathode connection and offers a right side decimal point orientation, ideal for precise numeric data presentation.

The compact form factor includes character dimensions of 4.2 mm width and 7.6 mm height, with an external size suitable for surface mounting on printed circuit boards. The grey face with white segments ensures excellent contrast, making it suitable for indoor and industrial environments.

Designed to operate efficiently, it maintains a low forward voltage of 2 volts and a forward current of 30 mA, with a power dissipation of 75 mW. The display's broad operating temperature range from -40°C to 85°C assures durability in varied environmental conditions.

This component is RoHS compliant, reflecting an environmentally responsible manufacturing process. Applications include industrial instrumentation, consumer electronics, display panels, automotive dashboards, and other environments requiring reliable and clear LED number displays.

Dual-digit 7 segment display with yellow LEDs for clear numeric communication. Cathode common connection facilitating easy wiring in circuits. Surface mount type for hassle-free assembly on PCBs or sockets. Meets RoHS standards confirming environmental compliance.

Compact size with easy integration into electronic devices. Strong luminous output ensuring readability under various lighting conditions.

Kingbright offers reliable LED display modules engineered to meet diverse industrial and commercial requirements. Browse EnvMart for comprehensive displays and electronic components suitable for your automation and instrumentation projects.
