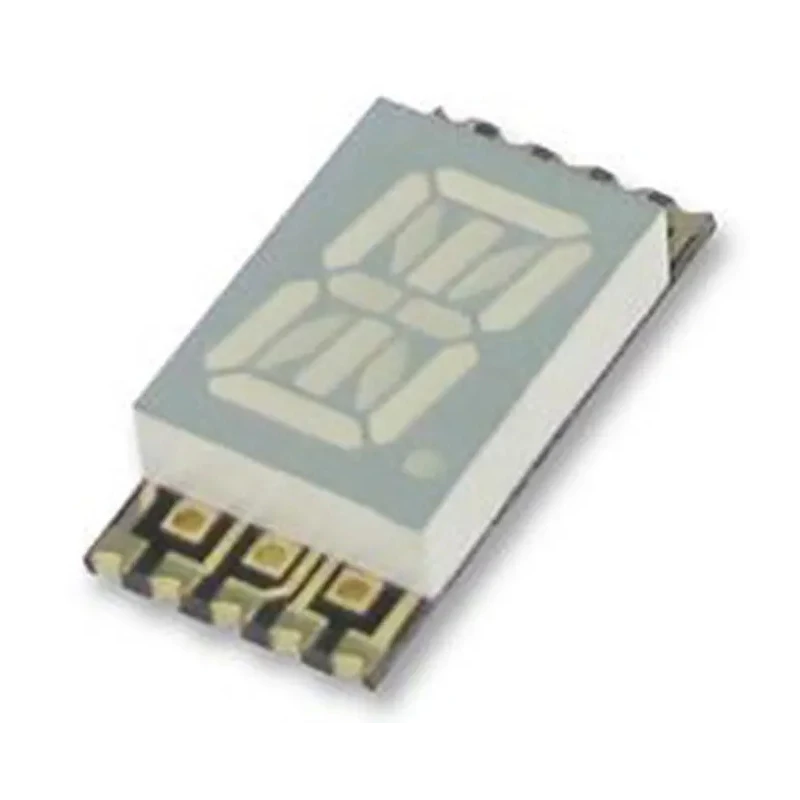

Kingbright 1 14 Segment Yellow LED Display Cathode, 10.2 mm Character Height KCPSC04-107

Kingbright KCPSC04-107 14 Segment Yellow LED Display is an advanced single-digit alphanumeric surface mount display designed for electronics requiring numeric and alphabetic output. The display module features 14 segments allowing representation of a wide range of characters with a height of 10.2 mm and a character width of 6 mm, making it suitable for clear and accurate visual indications in compact device assemblies.

The LED is yellow in color with a luminous intensity of 46mcd, ensuring excellent visibility even in diverse lighting conditions. Its grey color face enhances the contrast and improves readability.

Engineered for robust surface mount applications, this LED display offers reliability with operational temperature range from -40 to +85 degrees Celsius. The device operates at a forward voltage of 2V and supports a low current of 30mA, making it energy efficient for industrial, laboratory, automotive, and consumer electronics applications.

The module dimensions include an external height of 3.8 mm, depth of 19 mm, and width of 9.3 mm, ideal for space-constrained PCB layouts. The right side decimal orientation adds flexibility for numeric data presentation.

This product is ideal for use in electronic signage, instrumentation panels, telecommunication equipment, and various display devices requiring alphanumeric output with high reliability and performance.

This LED display features a cathode common connection type. It exhibits a bright yellow color with a luminous intensity of 46mcd. The display has 14 segments enabling alphanumeric character output. The character width measures 6mm, and character height is 10.2 mm.

Designed for surface mount technology (SMT) applications, it offers mechanical robustness. It operates reliably between -40°C to 85°C ambient temperatures. The forward voltage is 2V with a power dissipation rating of 75mW.

The forward current is rated at 30mA, supporting low current operation. The display face is grey in color providing high contrast visibility. The decimal point orientation is on the right side for ease of numeric display.
