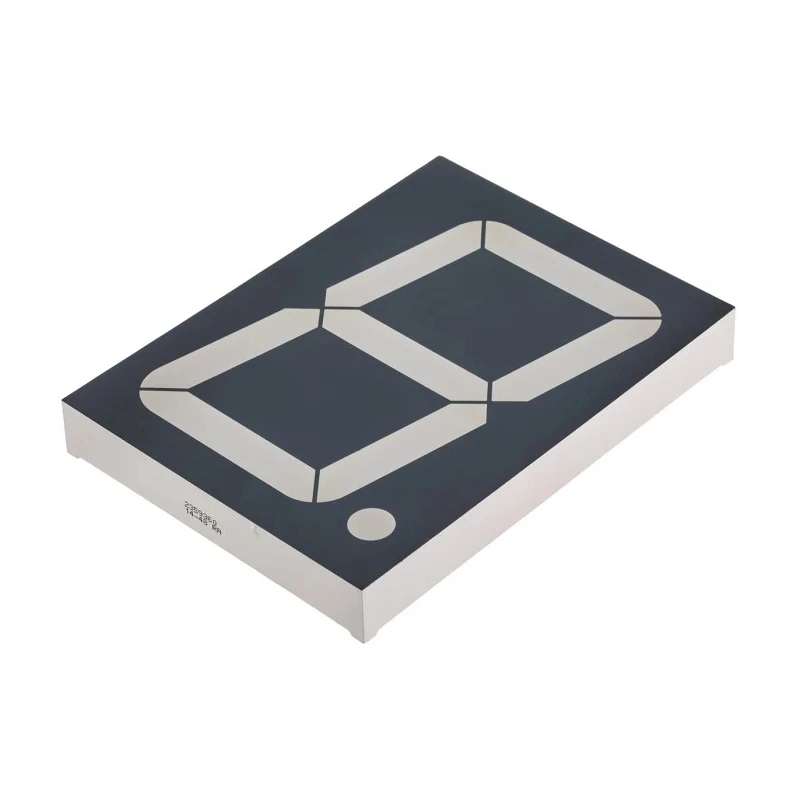

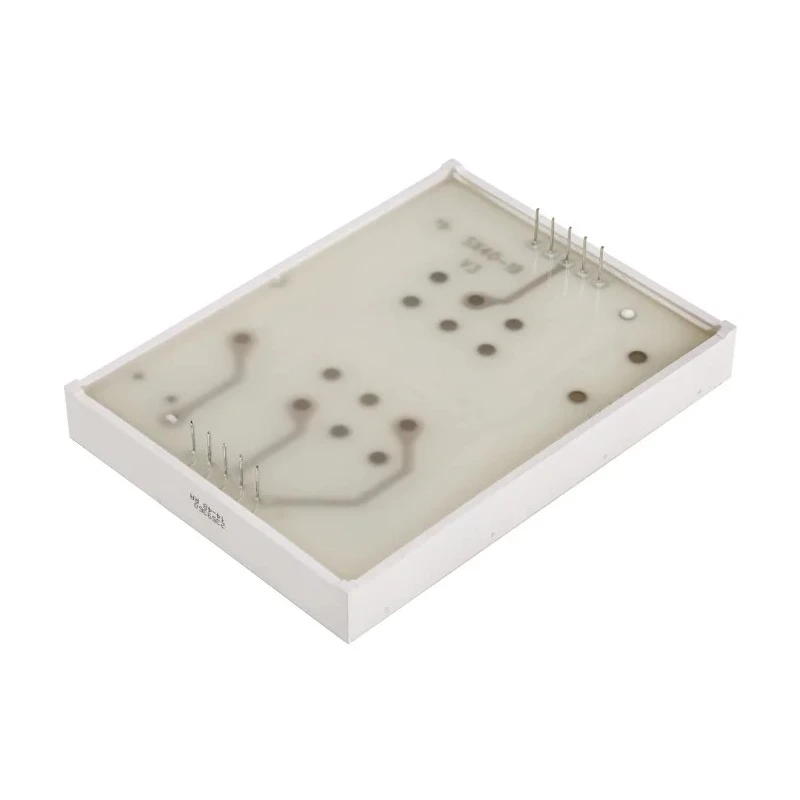

Kingbright 1 7 Segment LED Display Anode Red 23mcd Right Side 101 mm SA40-19EWA

Kingbright SA40-19EWA is a single digit 7-segment LED display designed for precision numeric display applications. It features a red LED colour with an anode common connection, providing bright 23 millicandela luminous intensity and operating at a forward voltage of 8V with a forward current of 60mA.

The display has a character height of 101 mm and width of 59.5 mm, with an overall external dimension of 122 mm height, 90 mm width, and 15 mm depth. It offers a right side decimal orientation with a grey face and white segments for excellent clarity and contrast.

Engineered for through-hole mounting, this LED Display is mechanically rugged and suitable for industrial, laboratory, manufacturing, commercial, and electronics equipment uses that require visible numerical output.

The component is RoHS compliant, adheres to quality standards for reliability, and is rated to operate within a temperature range of -40°C to 85°C. Its power dissipation rating supports 150mW to 600mW, contributing to its energy-efficient profile.

The display boasts excellent visibility with a luminous intensity of 23 millicandela. Features a grey face color with white LED segments for clear readability. Designed with a through-hole mount for secure PCB installation.

Operates at a forward voltage of 8V and current of 60mA, ensuring low power consumption. Operates reliably in environments ranging from -40°C to 85°C. Character width measures 59.5 mm, suitable for visible numeric displays.

Mechanically rugged construction, built for industrial and commercial applications. RoHS compliant and made in China, ensuring adherence to environmental standards.
