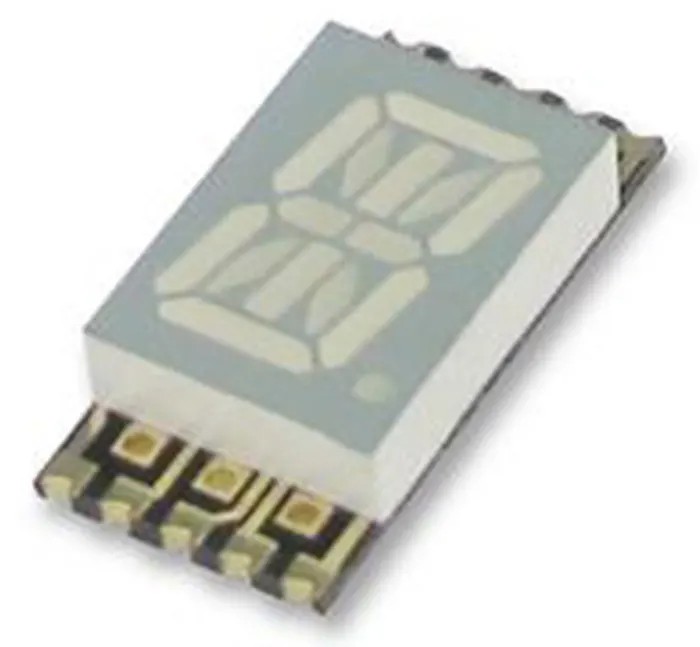

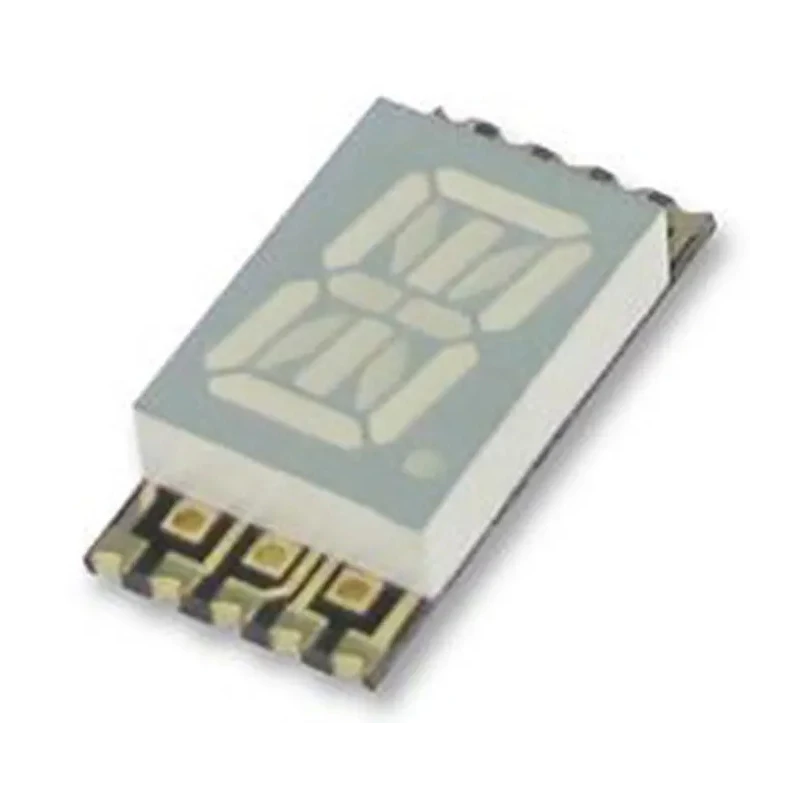

Kingbright 1 14 Segment LED Display Cathode Red 36mcd Right Side 10.2 mm KCPSC04-105

Kingbright's KCPSC04-105 model is a single character 14 segment LED display that provides clear alphanumeric representation with red illumination of 36 mcd luminous intensity. The display features a 10.2 mm character height and 6 mm character width, making it suitable for panel indicators and electronic displays requiring high visibility.

This component uses a common cathode connection and is designed for surface mount applications, facilitating easy integration into modern electronic assemblies. Its grey face plate enhances contrast for clear readability.

The LED display supports a forward voltage of 2V and consumes power up to 75 mW, with a maximum forward current rating of 30 mA. It is capable of withstanding operating temperatures from -40°C to 85°C, ensuring reliable function in varied environments.

Mechanically, the display measures 9.3 mm wide, 3.8 mm in height (excluding character height), and 19 mm in depth, with a right-side decimal orientation for numerical precision. Kingbright's KCPSC04-105 is RoHS compliant, reflecting adherence to environmental standards and suitability for international electronic manufacturing requirements.

This single digit 14 segment LED display provides high contrast and efficient illumination. Surface mount design supports automated PCB assembly processes. Operating temperature range accommodates industrial and commercial usages.

Compact size enables use in constrained spaces within electronic devices. Red LED color with 630 nm wavelength ensures excellent visibility. Power consumption management supports energy-efficient designs. Grey face module enhances numeric and alphanumeric readability.

Enhances product reliability with mechanical robustness and compliance certifications.

This Kingbright LED display module is ideal for applications in industrial automation, instrumentation, consumer electronics, and display modules requiring clear alpha-numeric output. Explore more LED Displays and lighting components at EnvMart for comprehensive solutions.
