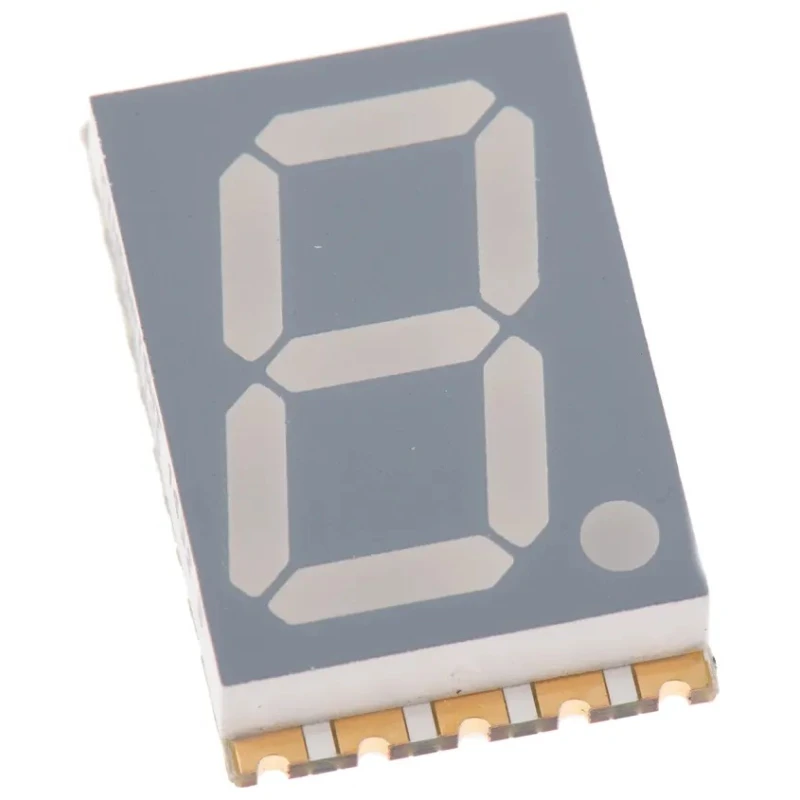

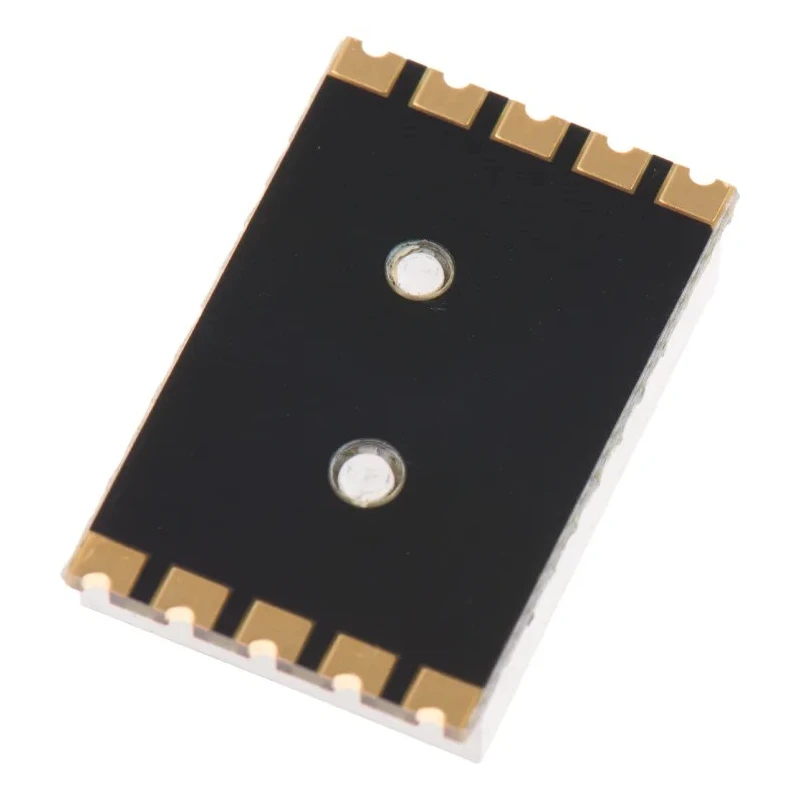

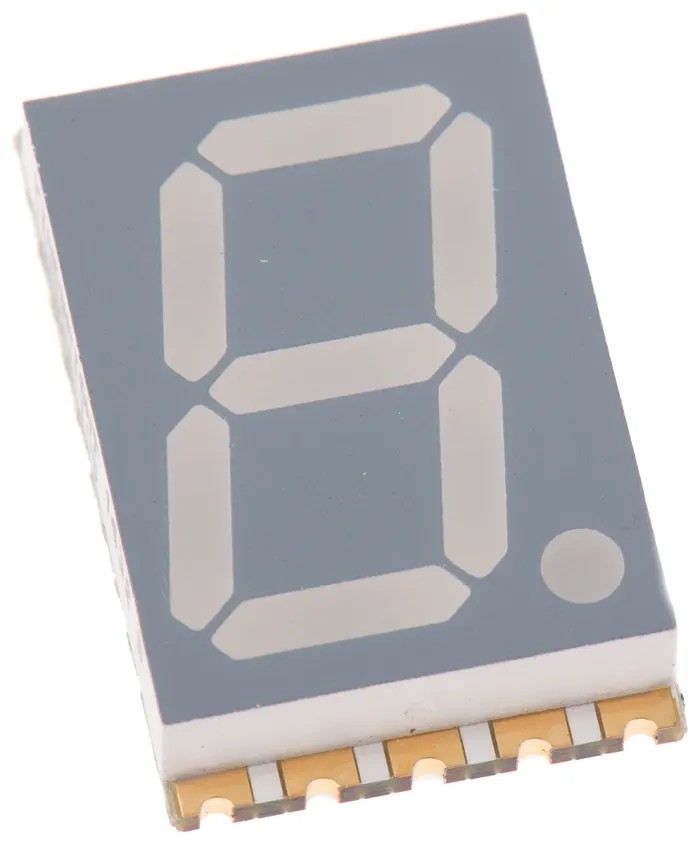

Kingbright 1 7 Segment LED Display Anode Red 44mcd Right Side 14.2mm KCSA56-105
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | KCSA56-105 |
| Mount Type | Surface |
| Character height | 14.2mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 12.4mm |
| External Depth | 3.8mm |
| External Height | 19mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 44mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 630nm |
| Colour of Face | Grey |
| Forward Voltage | 2V |
| Forward Current | 30mA |
| Number of Characters | 1 |
| Character Width | 8mm |
| Common Connection | Anode |
| Decimal Orientation | Right Side |
Key Features
- Single character 7 segment LED display clear with a grey face and white segments.
- Surface mount type for easy PCB mounting or socket insertion.
- Dominant wavelength of 630nm provides bright red illumination.
- Forward voltage of 2V with a power dissipation rating of 75mW.
- Operates reliably between -40°C and 85°C temperature range.
- Right side decimal orientation suitable for varied display applications.
- Common anode connection allowing easy wiring configuration.
- Forward current rating of 30mA for low power consumption.
Product Description
Kingbright KCSA56-105 is a single digit, 7 segment LED display designed for industrial and electronic display applications. Featuring a bright red color with a luminous intensity of 44mcd, this display provides excellent visibility with high on/off contrast. The character height is 14.2mm and the character width is 8mm, making it suitable for compact display modules.
This display uses a common anode configuration and is designed for surface mounting on PCBs or sockets, facilitating easy integration into electronic equipment. The grey face with white segments enhances contrast for clear readability.
The component operates efficiently with a forward voltage of 2V and a power dissipation limit of 75mW, while the forward current rating is 30mA ensuring low power consumption. It reliably works across a wide temperature range from -40°C to 85°C, making it suitable for industrial, instrumentation, automation, and laboratory environments.
The decimal point orientation is right side, and the external dimensions measure 12.4mm in width, 19mm in height, and 3.8mm in depth, allowing compact installation in display assemblies.
Single character 7 segment LED display clear with a grey face and white segments. Surface mount type for easy PCB mounting or socket insertion. Dominant wavelength of 630nm provides bright red illumination. Forward voltage of 2V with a power dissipation rating of 75mW.
Operates reliably between -40°C and 85°C temperature range. Right side decimal orientation suitable for varied display applications. Common anode connection allowing easy wiring configuration. Forward current rating of 30mA for low power consumption.
Mechanically rugged design ensuring durability and compliance with RoHS standards.
This LED display is ideal for electronics manufacturing, instrumentation panels, digital meters, industrial control systems, and various display modules requiring precise numeric visualization.
Kingbright products are known for their quality and compliance, offering robust and easy-to-use display solutions for demanding industrial and commercial applications. Browse the Electronics Components and LED Display categories on EnvMart for similar products and compatible display modules.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of this model is 44mcd, providing bright visibility for display applications.
The forward voltage rating for the KCSA56-105 is 2V, which is suitable for low power consumption.
The external dimensions are 12.4mm in width, 19mm in height, and 3.8mm in depth, allowing for compact installation.
This model operates reliably between -40°C and 85°C, making it suitable for various environments.
It uses a common anode connection, allowing for easy wiring configuration in electronic circuits.
The character height of this display is 14.2mm, which is suitable for clear visibility in compact modules.
The power dissipation rating for this LED display is 75mW, ensuring efficient energy usage.
The dominant wavelength of the red LED is 630nm, providing bright red illumination.
The decimal point orientation is on the right side, suitable for various display applications.
The character width is 8mm, which complements the overall size for effective display.
This LED display complies with RoHS standards, ensuring it meets environmental regulations.
The KCSA56-105 is a surface mount type, designed for easy PCB mounting or socket insertion.
