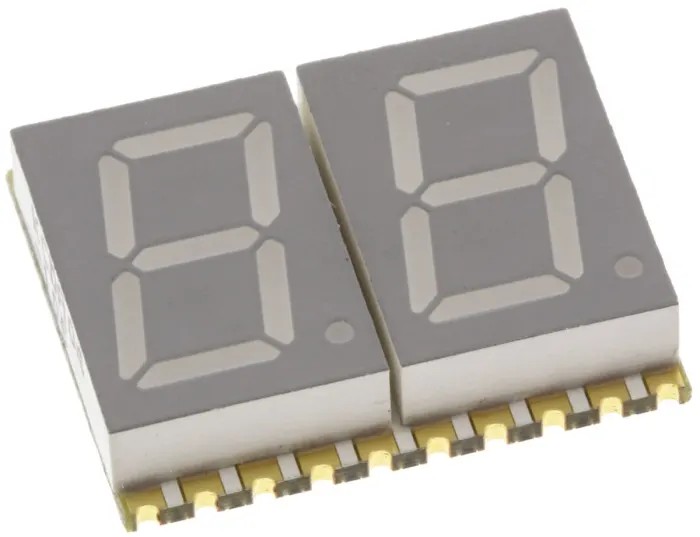

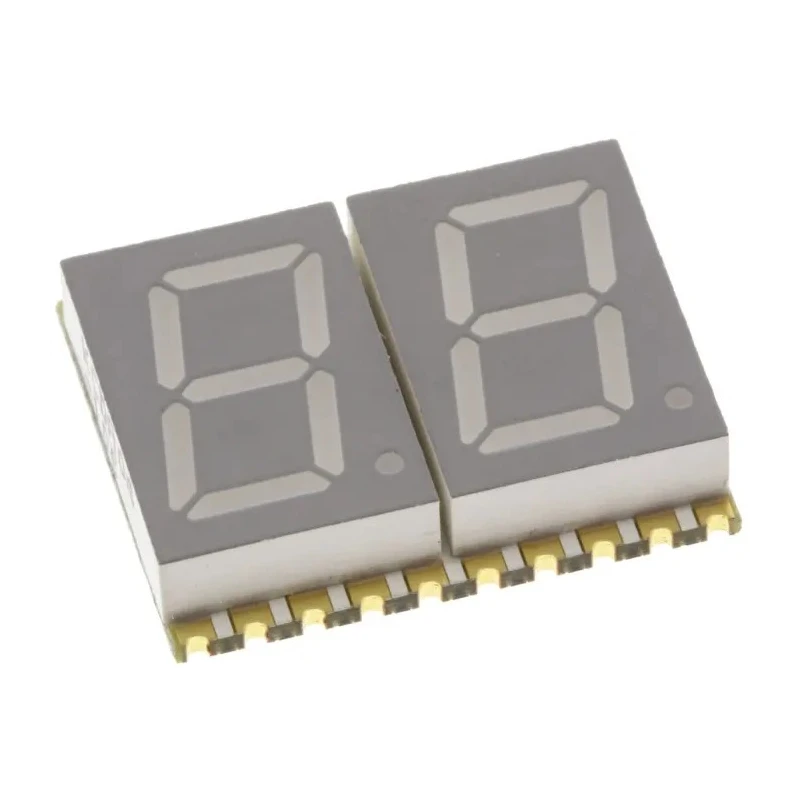

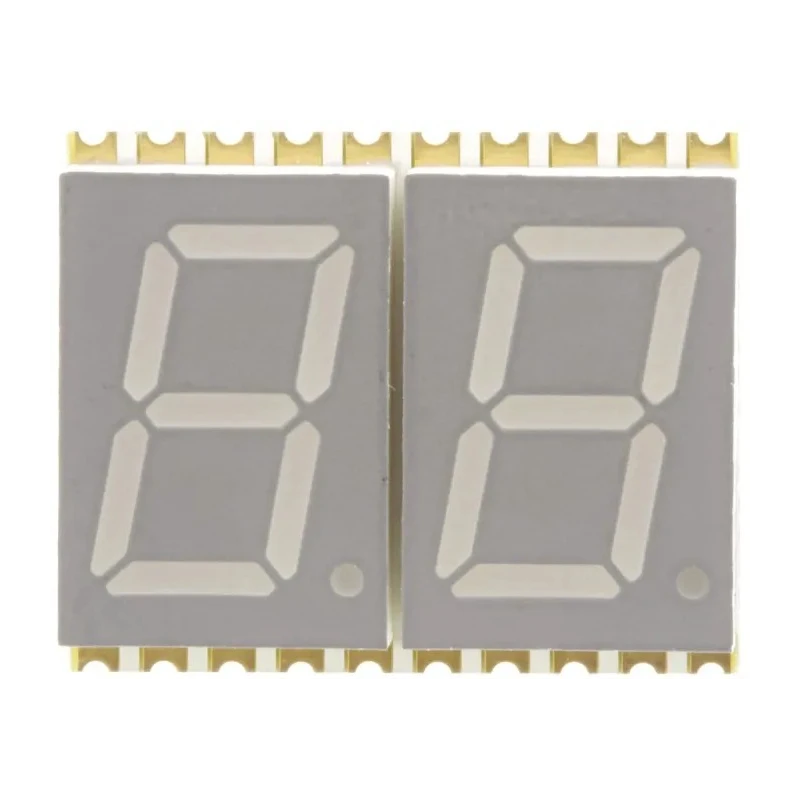

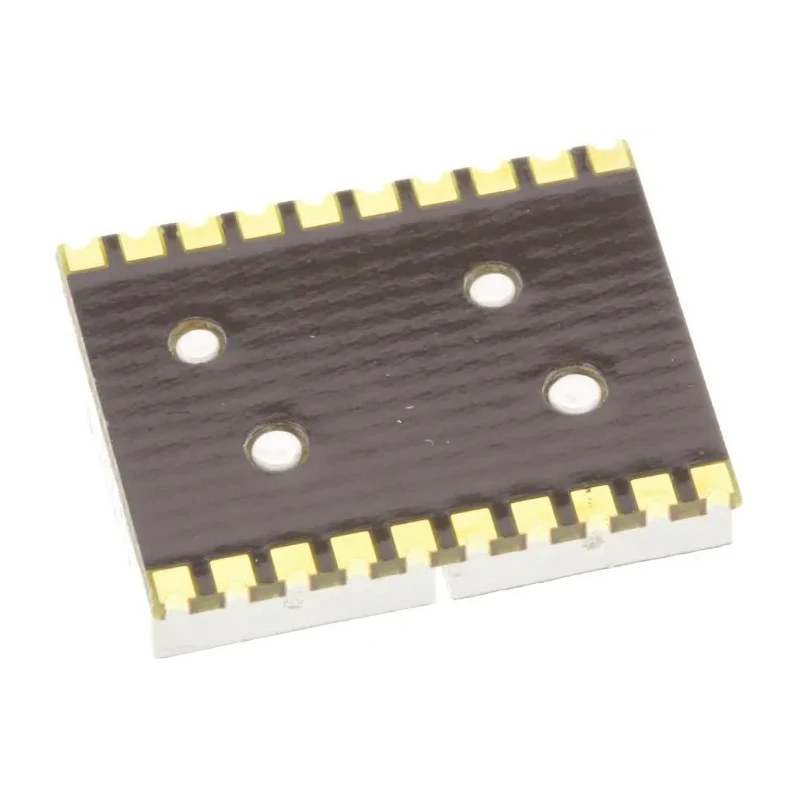

Kingbright Dual-Digit 7 Segment LED Display, Red, Surface Mount, Anode, 2 Characters, 27mcd Luminous Intensity KCDA04-105
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | KCDA04-105 |
| Mount Type | Surface |
| Character height | 10.2mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 18.5mm |
| External Depth | 3.8mm |
| External Height | 15mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 27mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 630nm |
| Colour of Face | Grey |
| Forward Voltage | 2V |
| Forward Current | 30mA |
| Number of Characters | 2 |
| Character Width | 5.6mm |
| Common Connection | Anode |
| Decimal Orientation | Right Side |
Key Features
- Provides dual-digit numerical display with 7 segments per character.
- High visibility due to red LED color and 27mcd luminous intensity.
- Surface mount design for streamlined PCB integration.
- Features common anode configuration suitable for standard driving circuits.
- Operates across a wide temperature range from -40°C to 85°C.
- Offers easy mounting and categorized luminous intensity for batch consistency.
- Right-side decimal point orientation improves usability in measurements or counters.
- Low power dissipation design enhances energy efficiency.
Product Description
The Kingbright KCDA04-105 Dual-Digit 7 Segment LED Display is engineered for precise and reliable numeric indication in electronic devices. With its surface mount package and common anode configuration, this display integrates seamlessly into a range of PCBs and digital instruments.
This model features two display characters, each formed by seven red LED segments, delivering bright numeric readouts thanks to a luminous intensity of 27mcd and a dominant wavelength of 630nm. The right-side decimal orientation supports applications such as digital counters, measurement devices, and time displays.
Character height stands at 10.2mm with a width of 5.6mm, ensuring numeric visibility in control panels and instrumentation. Its grey face with white segments enhances contrast and readability, even in ambient light conditions.
The KCDA04-105 operates reliably between -40°C and 85°C, making it suitable for environments ranging from laboratory to industrial electronic systems. Forward voltage of 2V and forward current up to 30mA satisfy typical design requirements and offer compatibility with standard LED drivers.
Easy surface-mount installation allows efficient assembly during production, particularly when ordered in reel packs for automated insertion. Its mechanically rugged design and RoHS compliance confirm suitability for commercial and industrial builds.
Industrial applications include measurement devices, digital clocks, panel meters, signal counters, and modular instrumentation, across sectors such as manufacturing, automation, and laboratory equipment.
Explore more LED Displays and optoelectronic components within the Electronics & Electricals category on EnvMart to complement your embedded system and panel designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of the KCDA04-105 display is 27mcd, providing high visibility for numeric readouts.
This model operates reliably within a temperature range of -40°C to 85°C, suitable for various environments.
The character height of the KCDA04-105 display is 10.2mm, ensuring good visibility.
The KCDA04-105 features a surface mount design, allowing for streamlined PCB integration.
Each character in the KCDA04-105 display is formed by seven segments, typical for 7-segment displays.
The forward voltage is 2V, and the forward current can go up to 30mA, aligning with standard design requirements.
The external width of the KCDA04-105 is 18.5mm, and the external height is 15mm.
The KCDA04-105 has a common anode configuration, making it compatible with standard driving circuits.
The LED color of the KCDA04-105 display is red, with a dominant wavelength of 630nm.
The power dissipation for the KCDA04-105 is 75mW, contributing to its low power consumption design.
Yes, the KCDA04-105 is RoHS compliant, confirming its suitability for commercial and industrial builds.
