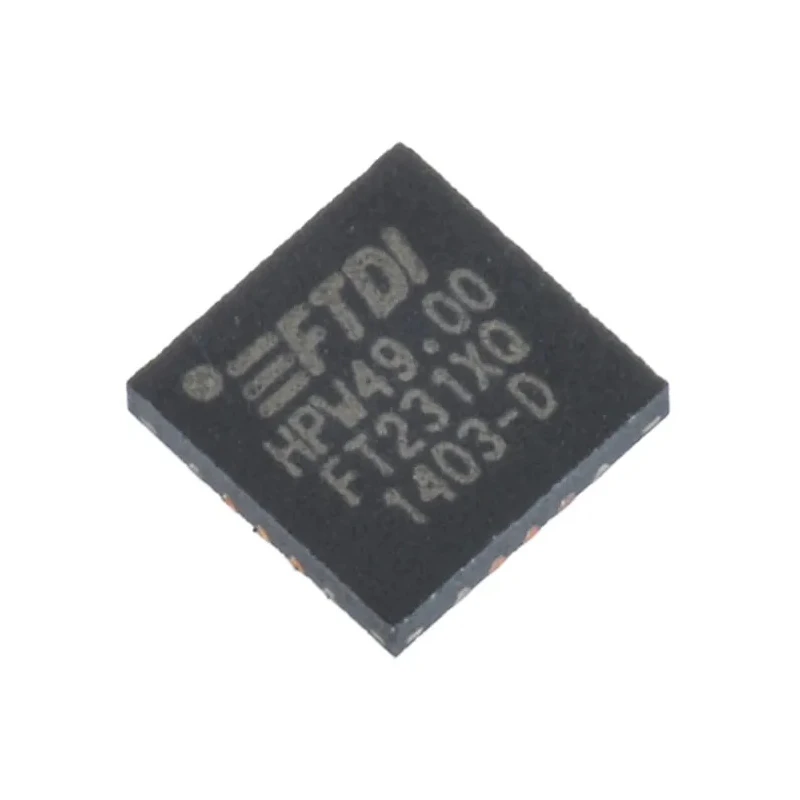

FTDI Chip Multiprotocol Transceiver 20-Pin USB 2.0 Full Speed UART Interface FT231XQ-R
Specifications
| Country of Origin | India |
|---|---|
| Brand | FTDI Chip |
| Model | FT231XQ-R |
| Mount Type | Surface |
| Series | FT231X |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB suspend mode current of 125 μA |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.25V |
| Minimum Supply Voltage | 3.3V |
| Supply Current | 8mA |
| Maximum Data Rate | 3Mbps |
| Number of Transceivers | 1 |
| Number of Receivers | 1 |
| Number of Transmitters | 1 |
| Interface Standards | USB 2.0 |
Key Features
- Supports a maximum data rate of 3 Mbps for efficient data transfer.
- Includes one transmitter, one receiver, and one transceiver for full duplex communication.
- Operates within a supply voltage range of 3.3 V to 5.25 V.
- Low power consumption with a supply current of 8 mA and USB suspend mode current of 125 μA.
- Wide operating temperature range from -40°C to 85°C for industrial applications.
- Designed for surface mount integration with 20 pins for compact PCB layout.
- Complies with USB 2.0 interface standards ensuring compatibility with host controllers.
- Includes fully integrated MTP memory and clock circuit requiring no external crystal.
Product Description
FTDI Chip FT231XQ-R is a multiprotocol transceiver in a 20-pin surface mount package, designed to enable full-speed USB 2.0 to UART interface conversion with full handshake capability. It is intended for industrial, electronic component manufacturing, and embedded system development where reliable USB serial communication is required.
This device integrates a fully embedded MTP memory and an internal clock circuit, eliminating the need for external crystals and additional components, simplifying PCB design and reducing overall system cost. It supports a maximum data rate of 3 Mbps, suitable for many serial communication applications requiring high data throughput.
Operating voltage ranges from 3.3 V to 5.25 V, with a nominal operating current of 8 mA and low USB suspend current consumption of 125 μA, offering power efficiency essential for embedded designs and portable devices. The device operates reliably over a wide temperature range from -40°C to 85°C, making it suitable for harsh industrial environments.
The FT231XQ-R supports configurable CBUS I/O pins and various bit bang modes providing flexibility in interface customization and control signaling. The package's surface mount construction with 20 pins enables compact PCB layouts for space-constrained designs.
Maximum data rate of 3 Mbps for fast data exchange. Single transmitter, receiver, and transceiver for full UART functionality. Voltage supply from 3.3 V to 5.25 V with low current consumption. Wide operating temperature for industrial use.
Fully integrated memory and internal clock to reduce external components. USB 2.0 compliant ensuring broad host compatibility. Configurable I/O pins and bit bang support for interface versatility. RoHS compliant to meet environmental standards.
Surface mount 20-pin package for compact installation.
This multiprotocol transceiver is an essential component for designers implementing USB serial communication in embedded applications across industrial, manufacturing, and electronic testing environments.
Discover more semiconductor components and interface ICs for your electronic designs at EnvMart.
Explore more products in our Multiprotocol Transceivers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FT231XQ-R supports a maximum data rate of 3 Mbps for efficient data transfer.
This model operates within a supply voltage range of 3.3 V to 5.25 V.
The supply current for the FT231XQ-R is 8 mA during operation.
It operates reliably over a wide temperature range from -40°C to 85°C, suitable for industrial applications.
This device features a 20-pin configuration designed for surface mount integration.
Yes, it complies with RoHS standards, ensuring it meets environmental regulations.
It includes one transmitter, one receiver, and one transceiver for full duplex UART communication.
No, it includes fully integrated MTP memory and an internal clock circuit, eliminating the need for external crystals.
The FT231XQ-R complies with USB 2.0 interface standards, ensuring compatibility with host controllers.
Yes, the device supports configurable CBUS I/O pins and various bit bang modes for interface customization.
The USB suspend mode current for the FT231XQ-R is 125 μA, contributing to its low power consumption.
It is suitable for industrial, electronic component manufacturing, and embedded system development requiring reliable USB serial communication.
