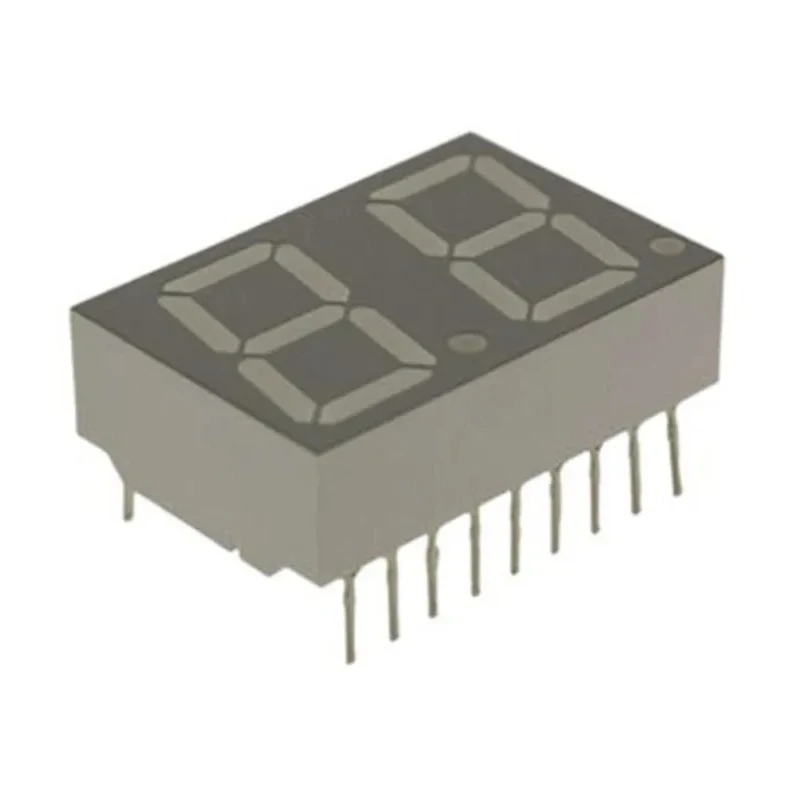

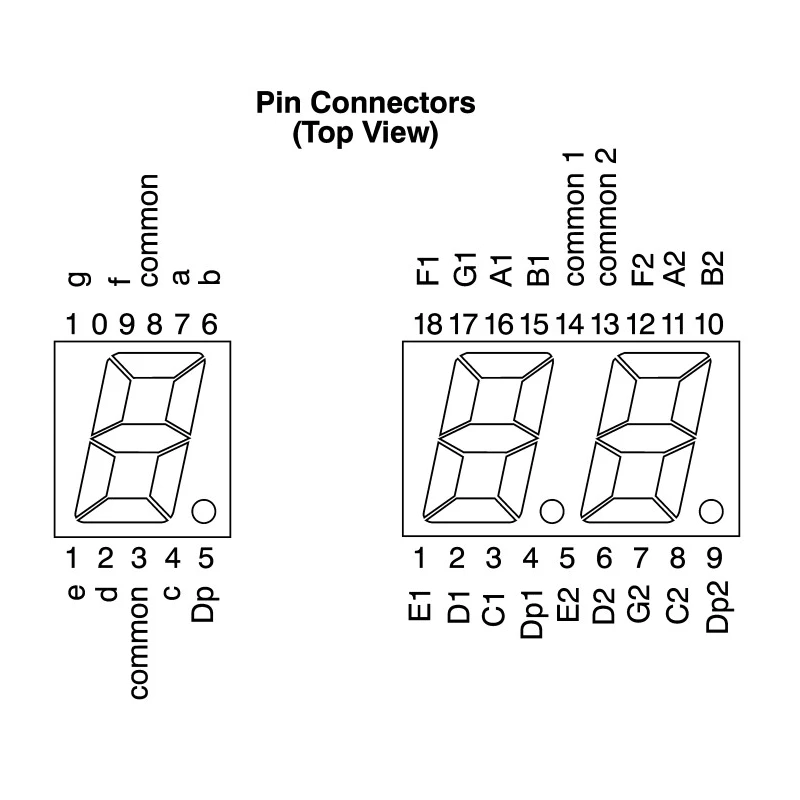

Broadcom 2-Digit 7 Segment LED Display, Red, Cathode, 14.2mm Character Height, Through Hole HDSP-5523-GH000
Specifications
| Country of Origin | India |
|---|---|
| Display Type | 7 Segment |
| Brand | Broadcom |
| Model | HDSP-5523-GH000 |
| Mount Type | Through Hole |
| Character height | 14.2mm |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 25.1mm |
| External Depth | 8mm |
| External Height | 17mm |
| Luminous Intensity | 3.7mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 626nm |
| Colour of Face | Grey |
| Forward Voltage | 2.1V |
| Forward Current | 90mA |
| Number of Characters | 2 |
| Character Width | 7.8mm |
| Common Connection | Cathode |
| Decimal Orientation | Right Side |
Key Features
- Features two-digit numeric display with 7-segment configuration for easy integration into digital circuits.
- Red LED emission with a dominant wavelength of 626nm for high visibility and clarity.
- Through-hole mounting design ensures stable and straightforward assembly on PCBs.
- 14.2mm character height and 7.8mm character width provides excellent readability from a distance.
- Supports operation from -40°C to 100°C for robust performance across a wide range of environments.
- Cathode common connection simplifies electrical interfacing with microcontrollers and display drivers.
- The luminous intensity of 3.7mcd delivers bright indication suitable for industrial control panels and instrumentation.
- Forward voltage of 2.1V and forward current of 90mA for standard low-voltage operation.
Product Description
The Broadcom HDSP-5523-GH000 is a 2-digit 7 segment LED display engineered for reliable numeric indication in industrial, laboratory, and commercial electronic systems. Featuring a bright red LED output with a dominant wavelength of 626nm, the display is highly visible and provides crisp numeric readouts in control panels and signal instrumentation, even under various ambient lighting conditions.
This LED display incorporates a cathode common connection and through-hole mount, streamlining integration into custom PCB designs and electronic assemblies. The 14.2mm character height and 7.8mm character width ensure excellent legibility for operators, enhancing usability in environments such as manufacturing lines, laboratory test stations, and HVAC control interfaces.
The device offers a 7 segment configuration per digit, supporting a range of digital value display needs. The right-side decimal orientation enables enhanced flexibility for application-specific requirements, including voltage, current, timer, and other numeric readouts.
Designed to perform across a broad temperature range, the HDSP-5523-GH000 operates from -40°C to 100°C, making it a suitable choice for demanding industrial, commercial, and laboratory environments. With a forward voltage of 2.1V and forward current rating of 90mA, the display is compatible with standard electronic drivers and microcontrollers.
The luminous intensity of 3.7mcd ensures bright and clear indication, while the display’s grey face optimizes contrast for readability. This unit is RoHS compliant, supporting environmental safety and quality standards.
Applications include process control, digital meters, laboratory instrumentation, HVAC systems, and embedded electronics where reliable display of numeric values is required. Browse more Broadcom LED Display solutions and explore the Electronics & Electricals component portfolio for your next project on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The character height of the Broadcom HDSP-5523-GH000 is 14.2mm, providing excellent readability.
This model operates within a temperature range of -40°C to 100°C, making it suitable for various environments.
It features a cathode common connection, which simplifies electrical interfacing with microcontrollers and display drivers.
The luminous intensity of the HDSP-5523-GH000 is 3.7mcd, ensuring bright indication for visibility.
The forward voltage is 2.1V and the forward current is 90mA, which are standard for low-voltage operation.
The external dimensions are 25.1mm in width, 8mm in depth, and 17mm in height.
This model uses a through-hole mounting design, which facilitates stable assembly on PCBs.
The dominant wavelength of the red LED is 626nm, providing high visibility and clarity.
The display consists of 7 segments per digit, allowing for the representation of numeric values.
This display is suitable for applications in process control, digital meters, laboratory instrumentation, and HVAC systems.
Yes, the HDSP-5523-GH000 is RoHS compliant, supporting environmental safety and quality standards.
The character width of the HDSP-5523-GH000 is 7.8mm, enhancing its legibility.
