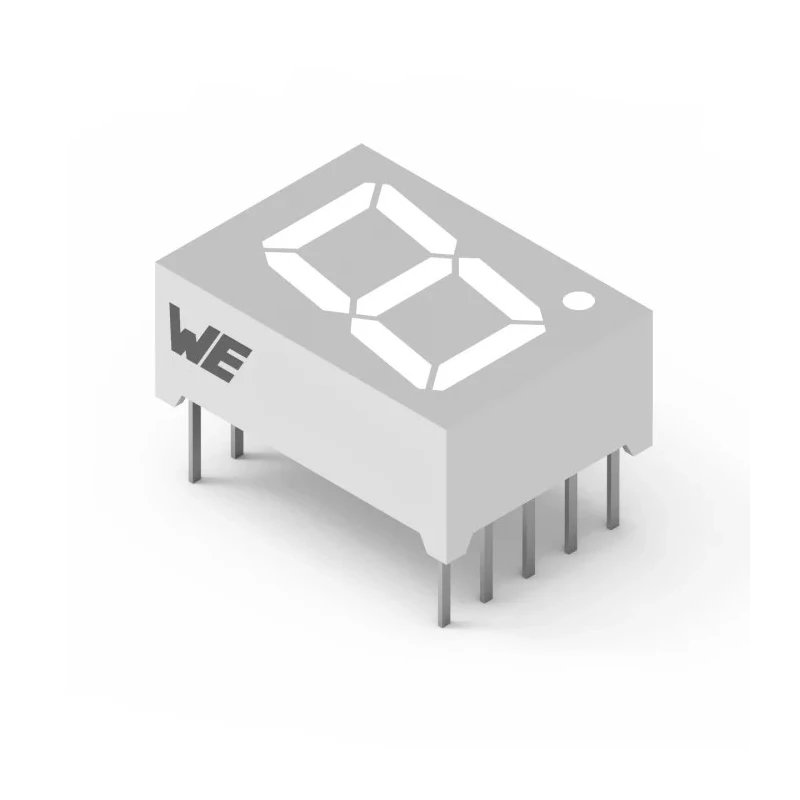

Wurth Elektronik 7 Segment LED Display, Super Red Anode, 38mcd, 13.2mm Character Height, Right Side, WL-T7DS 157136S12801

Wurth Elektronik 157136S12801 is a high-quality 7 segment LED display designed for professional grade applications across industrial, laboratory, and measurement environments. This device features a single-character display with a super red LED color, offering a dominant wavelength of 635 nm and luminous intensity of 38 millicandelas. The common anode configuration simplifies circuit design, supporting DC forward driving currents up to 100mA. Its robust construction and low power dissipation (52 mW) make it suitable for continuous operation in demanding conditions.

With a character height of 13.2 mm and grey face with milky/diffused segments, the display ensures clear readability while minimizing glare. The decimal orientation is positioned on the right side, matching standard digital panel layouts and facilitating easy integration. The device operates reliably over a wide temperature range, with a minimum operating temperature of -40°C and maximum of 85°C, allowing use in laboratories, audio/measure equipment, instrument panels, and control units.

Single character 7 segment LED display suitable for a wide range of industrial and instrumentation applications. Features super red LED color with dominant wavelength of 635 nm. Common anode configuration ensures easier integration with control circuits.

Offers luminous intensity of 38mcd for clear visibility and readability. Character height of 13.2 mm is ideal for instrument panels and digital meters. Operates reliably between -40°C and 85°C, making it suitable for harsh environments.

Decimal orientation is right side, facilitating standard panel layouts. Grey face with milky/diffused segments helps minimize glare. Low power dissipation of 52 mW enables energy-efficient operation. WL-T7DS Series is known for robust build and compliance with IEC, REACH, EN, and RoHS standards.

The WL-T7DS series delivers industrial standard size and schematic, suitable for various digital displays. Lead-free construction and RoHS, REACH, IEC, and EN compliance underline its suitability for commercial and industrial use. It is commonly applied in measurement devices, control units, instrument panels, and digital readout displays, where performance and readability are critical.
