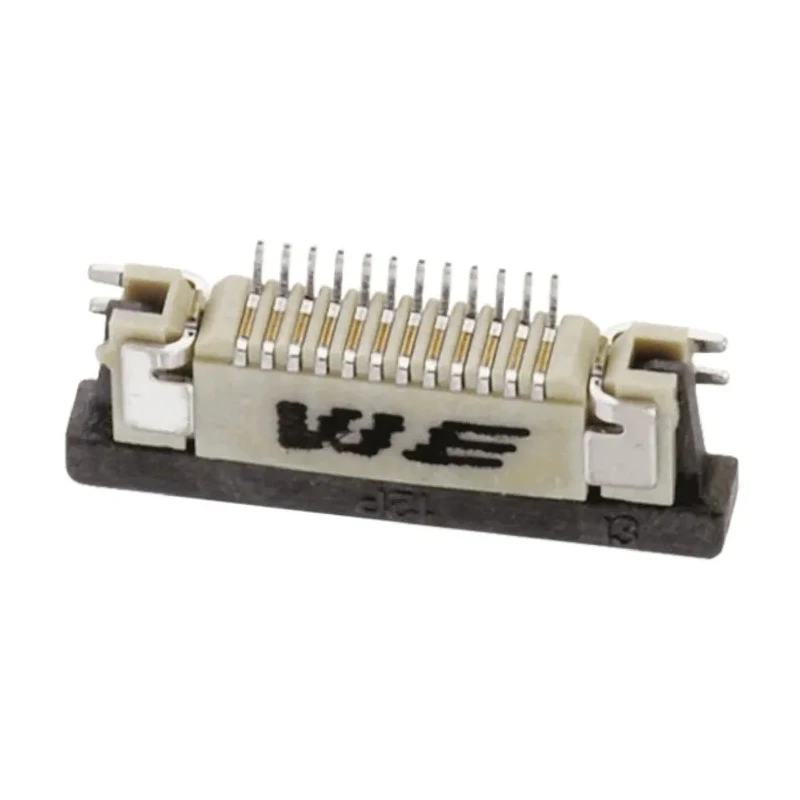

Wurth Elektronik 0.5 mm Pitch 10 Way Straight Male FPC Connector, Solder Pin 68711014522

Wurth Elektronik 68711014522 0.5 mm Pitch 10 Way Straight Male FPC Connector is engineered for high-performance wire-to-board connections. Featuring a surface mount type with solder pin termination and bottom contact, this connector offers excellent electrical properties and mechanical durability.

The phosphor bronze contacts with tin over nickel plating provide consistent signal transmission. With a pitch of 0.5 mm and 10 contact positions aligned in a single row, it is designed for compactness and precision in dense electronic assemblies.

Rated for 500mA current and 50V voltage, it suits low-power signal applications. The connector supports Zero Insertion Force (ZIF) mating with a locking mechanism to ensure secure and repeated connection cycles, supporting up to 25 mating cycles.

Its housing is made from liquid crystal polymer material, offering UL94-V0 flame retardancy and mechanical strength. The operating temperature range from -25°C to 85°C makes it dependable in various environmental conditions.

Wurth Elektronik’s 687 series FPC Connectors are widely utilized in industrial electronics, instrumentation, telecommunications, and manufacturing applications requiring reliable FPC connections.

Features a 0.5 mm pitch for precise wire-to-board connection. Constructed with phosphor bronze contacts and tin over nickel plating for reliable conductivity. Supports a current rating of 500mA and voltage rating of 50V.

Includes locking mechanism and ZIF (Zero Insertion Force) for easy mating. Designed for operation between -25°C to 85°C temperatures. Housing made from durable liquid crystal polymer ensuring UL94-V0 flame rating. Single row configuration with 10 contacts suitable for compact applications.

Intended for use in industrial, electronic, and power connector applications requiring precision and reliability.

This connector is ideal for electronics manufacturing, electronic component assembly, telecommunications equipment, and industrial instrumentation where precise and reliable FPC connection is mandatory.
