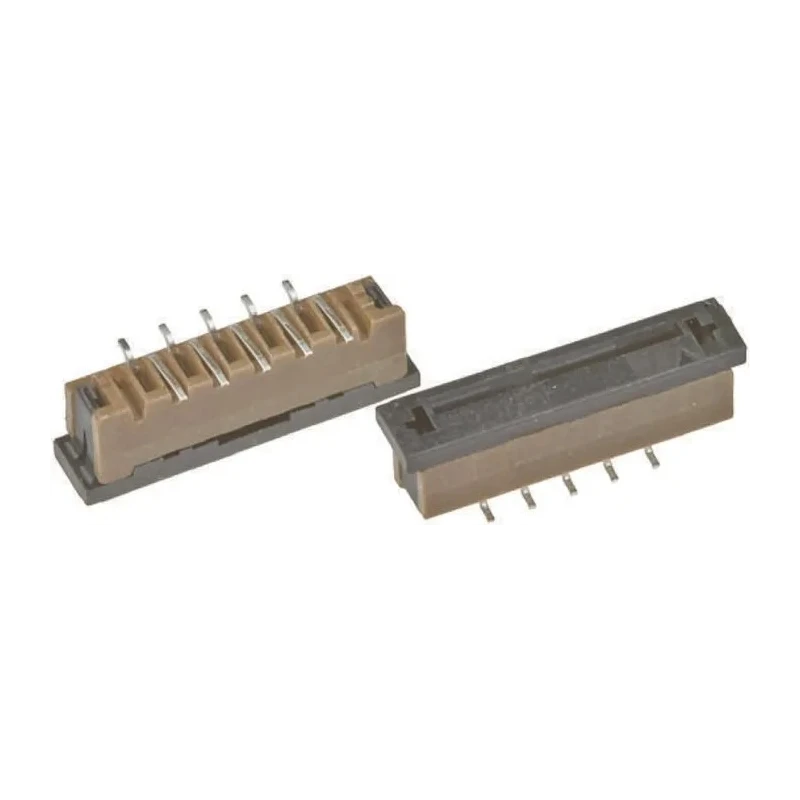

Amphenol Communications Solutions SFW-S 1 mm Pitch 4 Way Straight Female FPC Connector, Surface Mount, Solder SFW4S-2STE9LF

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Communications Solutions SFW-S 1 mm Pitch 4 Way Straight Female FPC Connector, Surface Mount, Solder SFW4S-2STE9LF

Name: Amphenol Communications Solutions SFW-S 1 mm Pitch 4 Way Straight Female FPC Connector, Surface Mount, Solder SFW4S-2STE9LF
Brand: Amphenol Communications Solutions
SKU: 208169
Price: 0.9 USD
Availability: InStock



Category FPC Connector Brand Amphenol Communications Solutions Condition New

Specifications

Country of Origin	Malaysia
Voltage	100, 100V ac
Brand	Amphenol Communications Solutions
Orientation	Straight
Current	1A
Model	SFW4S-2STE9LF
Mount Type	Surface
Housing Material	Thermoplastic
Contact Material	Phosphor Bronze
Series	SFW-S
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	1mm
Contact Plating	Tin over Nickel
Number of Contacts	4
Contact Gender	Female
Connector Gender	Female
Insertion Force	ZIF
Contact Position	Top

Key Features

Constructed with phosphor bronze contacts for durability and conductivity.
1 mm pitch provides compact design suitable for high-density applications.
Supports current rating of 1A per pin ensuring efficient power flow.
Top contact position with straight orientation for easy integration.
Thermoplastic housing material offers thermal stability from -55°C to 85°C.
Contact plating with tin over nickel enhances corrosion resistance.
Zero Insertion Force (ZIF) design reduces wear on contacts during assembly.
Specifically designed for applications in mobile devices, printers, industrial control, and car multimedia systems.

Product Description

Amphenol Communications Solutions SFW4S-2STE9LF is a 4 Way Straight Female FPC Connector featuring a 1 mm pitch, designed for surface mount applications with solder termination. This connector is part of the SFW-S series, offering reliable performance and versatility for electronics assembly.

The connector utilizes phosphor bronze contact material with tin over nickel plating to provide excellent electrical conductivity and enhanced resistance to corrosion, ensuring long-lasting connectivity even in demanding environments. Its thermoplastic housing supports a wide operating temperature range from -55°C minimum to 85°C maximum, making it suitable for various industrial and commercial applications.

With a top contact position and straight orientation, this connector simplifies cable routing and board layout. The zero insertion force (ZIF) mechanism minimizes wear on the contacts during repeated insertion cycles, improving longevity and serviceability. The connector operates at voltages up to 100 V AC and supports 1A current per pin, which is adequate for low power signal and data transmission uses.

Typical applications include mobile phones, printers, industrial control equipment, car multimedia devices, and other mobile devices where compact, reliable FPC connections are required. This economical yet professional-grade connector system provides a trusted solution in both consumer electronics and industrial instrumentation sectors.

Constructed with phosphor bronze contacts for durability and conductivity. 1 mm pitch supports high density circuit designs. Rated for 1A current at 100V AC voltage. Thermoplastic housing with wide operating temperature range.

Tin over nickel plating for enhanced corrosion resistance. Zero Insertion Force (ZIF) mechanism ensures easy and damage-free installation. Surface mount type termination with solder interface. Designed for industrial control, printer, mobile, and automotive multimedia applications.

Choose this Amphenol Communications Solutions SFW4S-2STE9LF FPC Connector for reliable, high-performance assembly in electronics manufacturing. Browse more from the FPC Connectors category on EnvMart for compatible and complementary components.
