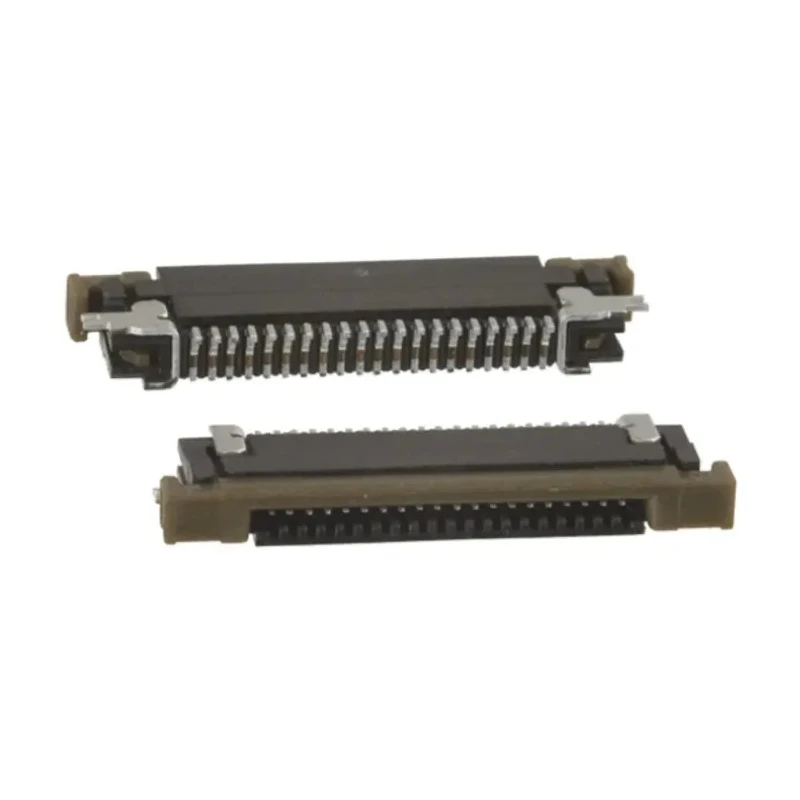

Amphenol Communications Solutions 0.5 mm Pitch 20 Way Right Angle Male FPC Connector, Solder SFV20R-1STE9HLF
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 50, 50V ac |
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Current | 500mA |
| Model | SFV20R-1STE9HLF |
| Mount Type | Surface |
| Housing Material | Glass Reinforced Polyamide Resin |
| Contact Material | Phosphor Bronze |
| Series | SFV-R |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Tin |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Connector Gender | Male |
| Insertion Force | ZIF |
| Contact Position | Bottom |
| FCI 0.5mm Pitch 20 Way Right Angle Female FPC ConnectorBrand | FCI |
Key Features
- Features 20 contacts with a 0.5 mm pitch ensuring fine-pitch connectivity.
- Right angle male connector designed for easy surface mount solder termination.
- Utilizes phosphor bronze contact material with tin plating for corrosion resistance.
- Supports current rating of 500mA per pin and voltage rating of 50V AC.
- Equipped with a zero insertion force (ZIF) locking mechanism for reliable cable retention.
- Operating temperature range from -55°C to 105°C suitable for diverse environments.
- Constructed with glass reinforced polyamide resin housing for durability.
- Bottom contact position ensures appropriate mating with specified flexible printed circuits.
Product Description
Amphenol Communications Solutions SFV20R-1STE9HLF is a 0.5 mm pitch 20 way right angle male FPC connector designed for robust, compact electronic connections. Ideal for applications such as mobile phones, printers, car multimedia systems, and other mobile electronic devices, this connector provides reliable performance with a low profile footprint.
The FPC connector features phosphor bronze contacts with tin plating to ensure excellent conductivity and corrosion resistance during operation. Its bottom contact termination and zero insertion force (ZIF) sliding actuator facilitate easy cable insertion and secure locking, improving assembly efficiency and product durability.
Rated for 500mA current per pin and voltage up to 50V AC, the connector supports a broad operating temperature range from -55°C to 105°C, enabling use in varied environmental conditions. The housing is made of glass reinforced polyamide resin, providing mechanical strength and flame resistance while being halogen and lead-free in compliance with environmental regulations.
This connector series, SFV-R, offers both bottom and top contact variants for flexible design choices. The SFV20R-1STE9HLF model specifically features bottom contacts and a right angle orientation for space-saving PCB layouts. It incorporates a locking mechanism that ensures secure cable retention to prevent disconnection during operation.
Features 20 contacts with 0.5 mm pitch. Right angle male design for space efficiency. Phosphor bronze tin-plated contacts for reliability. Zero insertion force (ZIF) locking mechanism for secure cable hold. Operating temperature from -55°C to 105°C.
Glass reinforced polyamide resin housing for durability. Halogen and lead-free compliant. 500mA current rating per pin, 50V AC voltage rating. Bottom contact position for specified flexible printed circuit compatibility.
This product is manufactured in Malaysia under stringent quality controls. Applications include industrial electronics, telecommunications, automotive multimedia systems, and consumer device connectors requiring fine pitch FPC connections.
Explore more FPC Connectors and related electronic components at EnvMart for your design and manufacturing needs.
