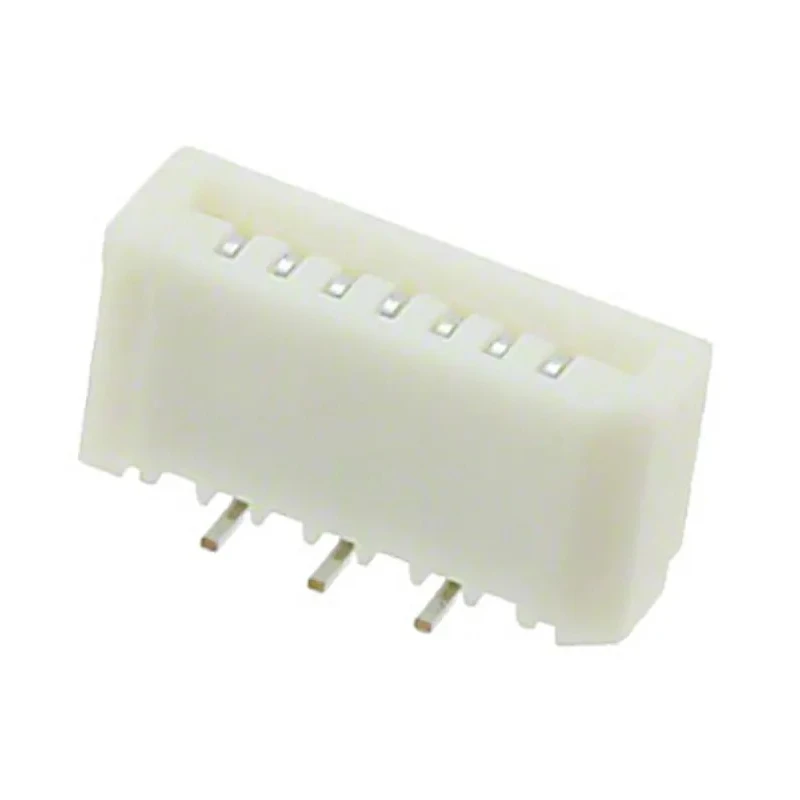

Molex 1 mm Pitch 7 Way Straight Female FPC Connector, Surface Mount, Solder Termination, Model 52808-0770
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 125, 125V ac |
| Brand | Molex |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Polysulfone |
| Contact Material | Phosphor Bronze |
| Series | 52808 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin Bismuth over Nickel |
| Number of Contacts | 7 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | Non-ZIF |
Key Features
- Features a 1.00 mm pitch with 7 contact points for precise connectivity.
- Constructed with phosphor bronze contact material for excellent conductivity.
- Surface mount type with straight orientation ensures easy PCB integration.
- Includes a locking mechanism and non-ZIF insertion force for secure connections.
- Contact plating with tin bismuth over nickel reduces wear and corrosion.
- Housing made of polysulfone for durability and stability in various environments.
- Designed to operate reliably between -20°C and 80°C.
- Staggered contact design facilitates easy soldering on PCBs.
Product Description
Molex 52808-0770 is a 1 mm pitch 7 way straight female FPC connector designed for surface mounting with solder termination. It offers a compact, space-saving design ideal for electronic component assemblies requiring high-density connections.
The connector features phosphor bronze contacts plated with tin bismuth over nickel to ensure strong, corrosion resistant electrical connections. Its polysulfone housing is chamfered on one corner to guarantee correct cable orientation during installation.
This connector includes a locking mechanism and uses a non-ZIF insertion force that provides secure retention without complicating assembly. The staggered contact layout helps facilitate soldering during PCB manufacturing, making the component ideal for automated production lines.
Rated for 125 V AC and 500 mA current, this connector reliably operates within a temperature range of -20°C to 80°C. Its compact single-row configuration suits applications in automotive navigation systems, digital cameras, mobile phones, and medical monitoring equipment.
With its robust material construction and secure mounting features, the Molex 52808-0770 connector provides a reliable interconnection solution for signal and data wiring harnesses in demanding industrial and commercial electronic applications.
Features a 1.00 mm pitch with 7 contact points for precise connectivity. Constructed with phosphor bronze contact material for excellent conductivity. Surface mount type with straight orientation ensures easy PCB integration.
Includes a locking mechanism and non-ZIF insertion force for secure connections. Contact plating with tin bismuth over nickel reduces wear and corrosion. Housing made of polysulfone for durability and stability in various environments.
Rated voltage is 125 V AC with a current capacity of 500 mA per contact. Designed to operate reliably between -20°C and 80°C. Staggered contact design facilitates easy soldering on PCBs. Widely used across automotive, consumer electronics, medical devices, and telecommunications industries.
Explore the full range of FPC Connectors on EnvMart for reliable electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 1.00 mm pitch and has 7 contact points, providing precise connectivity for electronic applications.
The connector is rated for a maximum current of 500 mA per contact, suitable for various electronic applications.
It is rated for a voltage of 125 V AC, making it suitable for a range of electronic devices.
The housing is made of polysulfone, while the contacts are constructed from phosphor bronze and plated with tin bismuth over nickel for corrosion resistance.
It operates reliably within a temperature range of -20°C to 80°C, suitable for various environments.
This model is a surface mount type with a straight orientation, designed for easy integration onto printed circuit boards.
Yes, it includes a locking mechanism that ensures secure connections without complicating assembly.
It uses solder termination, which is common for secure electrical connections in electronic assemblies.
The connector features a non-ZIF (Zero Insertion Force) insertion force, allowing for secure retention during assembly.
This connector is widely used in automotive navigation systems, digital cameras, mobile phones, and medical monitoring equipment.
The staggered contact design facilitates easier soldering on PCBs, making it ideal for automated production lines.
The Molex 52808-0770 is a female connector, designed for specific applications requiring female connectivity.
