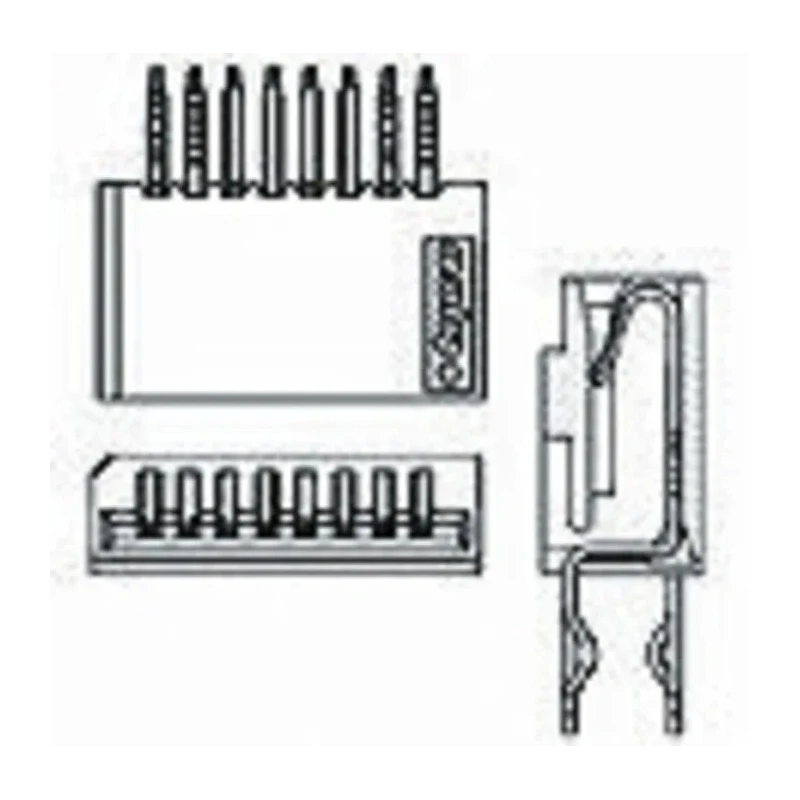

TE Connectivity FFC 1 mm Pitch 10 Way Straight Female FPC Connector, Solder 1-84984-0
Specifications
| Country of Origin | Singapore |
|---|---|
| Voltage | 125V dc |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | FFC |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | FFC |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | Non-ZIF |
Key Features
- The connector features phosphor bronze contacts for reliable electrical performance.
- It supports a current rating of 1 amp and operates at a voltage of 125 V dc.
- The mounting is through-hole type with a straight orientation and uses solder termination.
- Contact plating consists of tin over nickel to ensure durability and corrosion resistance.
- It has a locking mechanism to secure the connection and features a non-ZIF insertion force design.
- Temperature range from -20°C to 85°C makes it suitable for various industrial applications.
- Housing is made of polybutylene terephthalate for mechanical strength and insulation.
- This connector has a single row with 10 contacts and is designed for female gender connections.
Product Description
TE Connectivity model 1-84984-0 is a high-quality FFC Connector featuring a 1 mm pitch and 10 way female straight configuration. It is designed primarily for flexible printed circuit (FPC) connections requiring through-hole mounting and solder termination to the PCB. The connector's phosphor bronze contacts with tin over nickel plating provide reliable conductivity and corrosion resistance in demanding environments.
This connector supports a continuous current rating of 1 amp and a voltage rating of 125 V dc, suitable for various electronic and industrial applications. Designed with a non-ZIF insertion force and an integrated locking mechanism, it ensures secure and stable connections resistant to vibration and mechanical stress.
The operating temperature range from -20°C to 85°C allows use in a wide array of enclosure and ambient conditions typical of manufacturing and industrial settings. The housing is constructed from durable polybutylene terephthalate material providing good chemical resistance and electrical insulation.
It features a single row of 10 contacts configured as female connectors for compatibility with mating FFC cables. The connector is ideal for applications in electronic devices, instrumentation, automotive, and communication equipment requiring compact, reliable flexible flat cable interconnect solutions.
The connector features phosphor bronze contacts for reliable electrical performance. It supports a current rating of 1 amp and operates at 125 V dc voltage. Through-hole mount and solder termination type ensure robust PCB assembly.
Contact plating is tin over nickel for enhanced corrosion resistance. Includes a locking mechanism and non-ZIF insertion force design for secure connections. The housing is made of polybutylene terephthalate providing mechanical strength.
Operating temperature range of -20°C to 85°C suits diverse environments. 10 contacts arranged in a single row for female FPC connection.
This connector is widely used in industrial, electronic manufacturing, instrumentation, automotive, and HVAC sectors. It provides reliable electrical and mechanical performance in flexible cable connection applications. Browse further in the FPC Connector category for additional TE Connectivity connectors and related products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a continuous current rating of 1 amp.
It operates at a voltage rating of 125 V dc.
The connector features a through-hole mounting type.
It has an operating temperature range from -20°C to 85°C.
The housing is made of polybutylene terephthalate, and the contacts are made of phosphor bronze with tin over nickel plating.
This model features a single row with 10 contacts configured as female connectors.
It uses solder termination for robust PCB assembly.
Yes, it includes a locking mechanism to secure the connection.
It features a non-ZIF (Zero Insertion Force) insertion force design.
It is suitable for various applications in electronic devices, instrumentation, automotive, and communication equipment.
The connector has a straight orientation.
The country of origin for this connector is Singapore.
