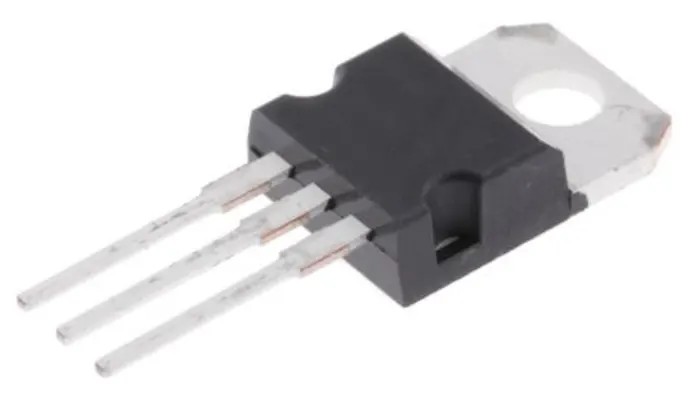

onsemi Darlington Transistor NPN, 4 A, 60 V dc, HFE 1000, 3-Pin TO-220 2N6387G
Specifications
| Country of Origin | China |
|---|---|
| Brand | onsemi |
| Height | 15.75mm |
| Length | 10.53mm |
| Model | 2N6387G |
| Mount Type | Through Hole |
| Series | 2N6388 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Continuous Collector Current Ic | 4A |
| Maximum Collector Emitter Voltage Vceo | 60V dc |
| Number of Elements per Chip | 1 |
| Minimum DC Current Gain hFE | 1000 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 5V dc |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2V |
| Maximum Collector Base Voltage VCBO | 60V dc |
| Maximum Collector Cut-off Current | 1mA |
| Maximum Power Dissipation Pd | 65W |
| onsemi 1 Darlington Transistor NPN, 4 A 60 V dc HFE | 1000, 3-Pin TO-220 |
Key Features
- This NPN Darlington transistor features a minimum DC current gain (hFE) of 1000.
- It is packaged in a 3-pin TO-220 type package suitable for through-hole mounting.
- The transistor supports a maximum power dissipation of 65 W and operates up to 150°C.
- Low collector-emitter saturation voltage of maximum 2 V ensures efficient switching performance.
- The device offers robust operating temperature range from -65°C to 150°C.
- With built-in base-emitter shunt resistors, it enables monolithic construction and reliable operation.
- The compact TO-220AB package provides efficient heat dissipation for amplifier and switching applications.
Product Description
onsemi 2N6387G Darlington Transistor NPN, rated for 4 A continuous collector current and 60 V collector-emitter voltage, is a versatile semiconductor device for power amplification and low speed switching in electronics and electrical applications.
Designed with monolithic construction and integrated base-emitter shunt resistors, this transistor supports high current gain with a typical hFE of 1000, delivering excellent amplification characteristics.
Its robust operation within a temperature range from -65°C to 150°C enables durable use in various industrial environments. The device comes in a TO-220 package for efficient heat dissipation and convenient through-hole mounting.
The maximum power dissipation of 65 W and low saturation voltage of 2 V contribute to energy-efficient switching, making it suitable for power amplifiers, control circuits, and general-purpose electronic designs.
The 3-pin layout simplifies circuit integration, and the transistor's NPN polarity makes it compatible with numerous electronic configurations. This Darlington transistor supports up to 4 A maximum continuous collector current.
Maximum collector-emitter voltage is rated at 60 V dc. TO-220 package type enables through-hole mount. High minimum DC current gain (hFE) of 1000 allows strong signal amplification. Operating temperature ranges from -65°C to 150°C providing wide industrial application usage.
Compact and robust design with built-in protection resistors. Power dissipation rating of 65 W supports sustained operation under load.
This transistor is suitable for electronic components assemblies in industrial electronics, power management, amplifier circuits, switching applications, and other commercial and laboratory uses. It is a reliable solution for enhancing current gain in NPN Darlington transistor configurations.
Explore more Darlington Transistors and semiconductor components at EnvMart for your industrial, laboratory, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current for this model is 4 A.
This transistor has a maximum collector-emitter voltage rating of 60 V dc.
The minimum DC current gain (hFE) for this transistor is 1000.
The 2N6387G is packaged in a TO-220 type package suitable for through-hole mounting.
This model supports a maximum power dissipation of 65 W.
The operating temperature range for this transistor is from -65°C to 150°C.
The dimensions of the TO-220 package are 15.75 mm in height and 10.53 mm in length.
The maximum collector-emitter saturation voltage for this transistor is 2 V.
The 2N6387G is an NPN Darlington transistor.
Yes, it features built-in base-emitter shunt resistors for reliable operation.
This transistor is suitable for power amplification, control circuits, and general-purpose electronic designs.
The 2N6387G has a pin count of 3.
