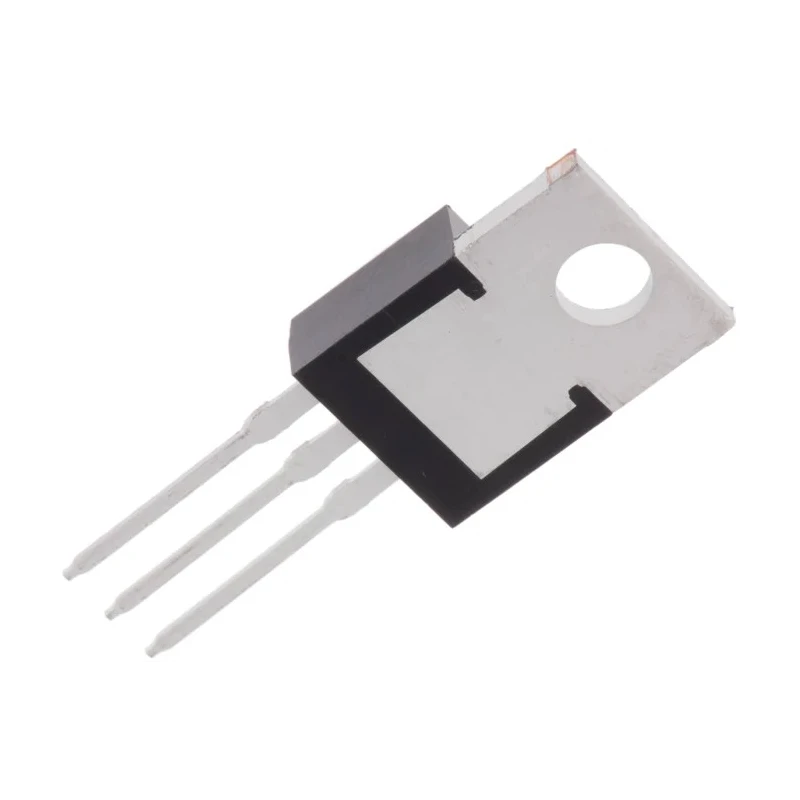

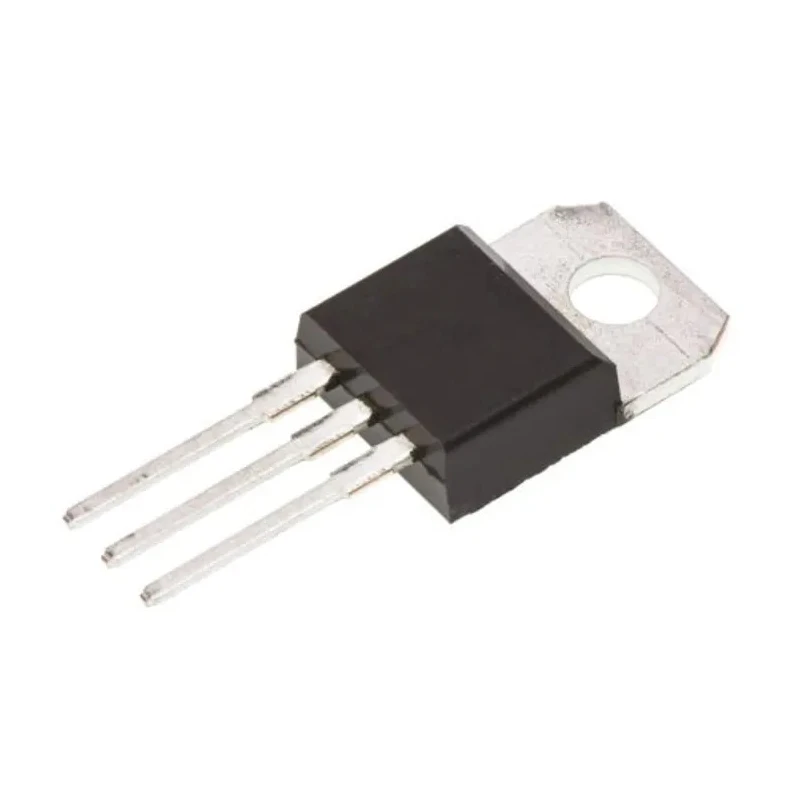

onsemi Darlington Bipolar Power Transistor NPN 8A 100V TO-220 Package TIP102G

onsemi TIP102G is a Darlington bipolar power transistor designed for applications requiring high current amplification and switching capabilities. This NPN transistor supports a maximum continuous collector current of 8 A and can withstand voltages up to 100 V collector-emitter, making it suitable for power control and amplifier circuits.

Encapsulated in a TO-220 package, the transistor is designed for through-hole mounting, offering ease of installation and good thermal dissipation capabilities. It features a high DC current gain with a minimum hFE of 200 and a maximum power dissipation of 80 W, allowing it to handle significant loads in industrial and consumer electronics.

The device operates reliably over a wide temperature range of -65°C to 150°C, suitable for demanding environments in industrial, automotive, and general electronic applications. With a maximum emitter-base voltage of 5 V and a collector-emitter saturation voltage of 2 V, it ensures efficient performance in both linear and switching modes.

This transistor is RoHS compliant and lead-free, supporting environmental regulations and sustainability efforts. The TIP102G from onsemi is ideal for use in power amplifiers, relay drivers, and other control applications.

Maximum continuous collector current of 8 A. Collector-emitter voltage rating of 100 V. High gain of at least 200 hFE. TO-220 package for through-hole mounting. Power dissipation capability of 80 W. Wide operating temperature range from -65°C to 150°C.

Bipolar NPN transistor polarity. Maximum emitter-base voltage of 5 V. Low saturation voltage of 2 V ensuring efficient switching. Lead-free, RoHS compliant construction.

Widely used in electronics manufacturing, industrial control systems, and power amplification circuits, the TIP102G ensures reliable and durable performance. Explore more Darlington Transistors and semiconductor devices at EnvMart.
