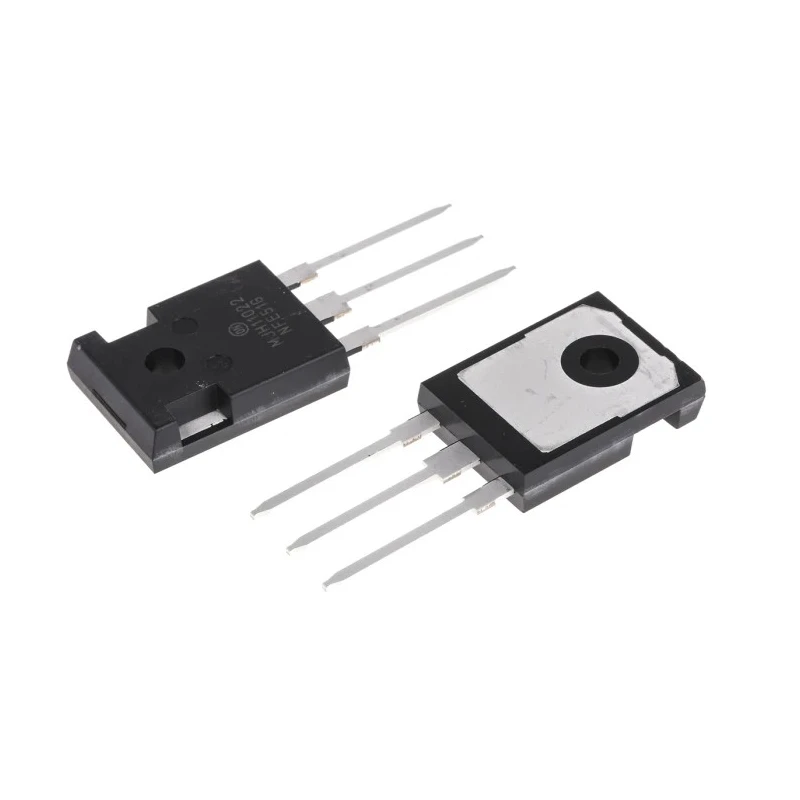

onsemi Darlington Transistor NPN, 15 A Current, 250 V Voltage, 150 W Power, TO-247 Package MJH11022G

onsemi MJH11022G Darlington Transistor is a NPN type semiconductor component designed to handle maximum continuous collector current of 15 A and withstand collector-emitter voltages up to 250 V. Packaged in the TO-247 form factor, it is ideal for through-hole mounting applications in industrial electronics involving high currents and voltages.

This transistor supports a minimum DC current gain (hFE) of 100, which optimizes signal amplification for power circuits. It can dissipate up to 150 W of power, making it suitable for demanding operational conditions.

The device operates reliably across a wide temperature range from -65°C to 150°C, ensuring performance stability in industrial and automotive-like environments. It features maximum collector-emitter saturation voltage of 2.5 V and emitter-base voltage limit of 5 V, critical for managing switching losses.

Its 3-pin configuration and robust TO-247 packaging enable easy mounting and integration on printed circuit boards with through-hole designs. The product series is MJH11017, with MJH11022G representing this specific model.

This transistor finds applications in power management, industrial control systems, electronic assemblies, and general purpose amplification suitable for electronic component manufacturing and repair sectors. Its rugged design supports reliable continuous operation under electric stress conditions.

Maximum continuous collector current: 15 A for demanding applications. Collector-emitter voltage rating of 250 V supports high-voltage electronics. High power dissipation capability of 150 W allows sustained heavy use. Wide operating temperature range extends device usability in harsh conditions.

NPN polarity suitable for common electronic circuits and power drivers. TO-247 package for easy through-hole PCB mounting. Minimum DC current gain (hFE) of 100 facilitates effective amplification. Three-pin configuration for standard electronic interfacing.

No automotive standard qualification but rugged for industrial use.

Industrial, electronics manufacturing, power control, automotive electronics, and semiconductor applications benefit from the robust and reliable performance of onsemi MJH11022G. Explore the full onsemi Darlington Transistor range and related components on EnvMart for advanced electronic solutions.
