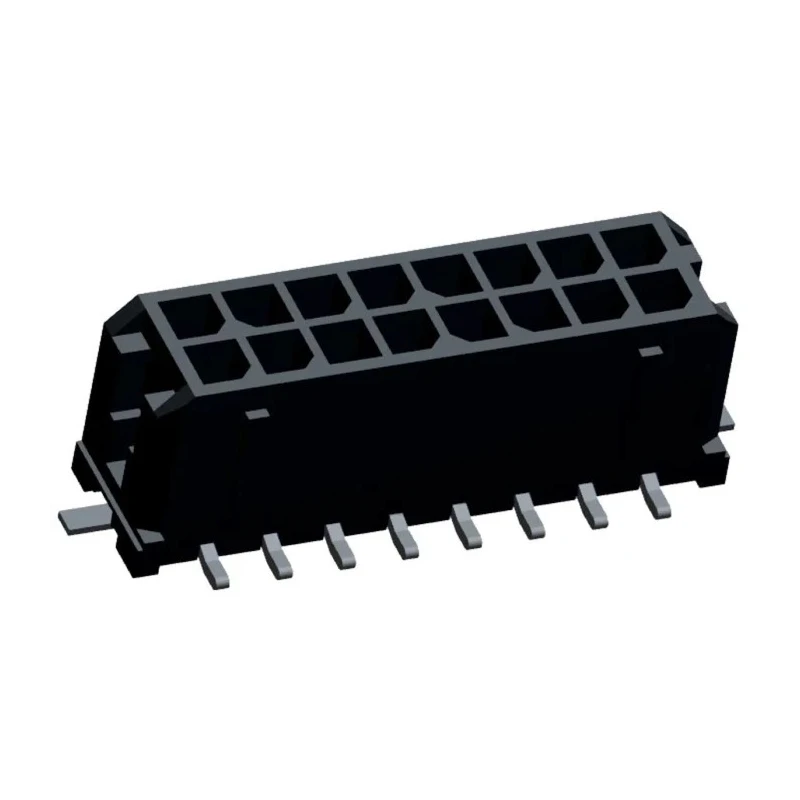

Molex Micro-Fit 3.0 Series Straight Surface PCB Header 16 Contacts 3 mm Pitch 2 Row Shrouded 43045-1618

Free Delivery in India | Lowest Global Shipping Charges

Molex Micro-Fit 3.0 Series Straight Surface PCB Header 16 Contacts 3 mm Pitch 2 Row Shrouded 43045-1618

Name: Molex Micro-Fit 3.0 Series Straight Surface PCB Header 16 Contacts 3 mm Pitch 2 Row Shrouded 43045-1618
Brand: Molex
SKU: 206471
Price: 6.14 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Molex
Orientation	Straight
Current	5A
Mount Type	Surface
Housing Material	Thermoplastic
Contact Material	Brass
Series	Micro-Fit 3.0
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	3mm
Contact Plating	Tin
Number of Contacts	16
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3mm

Key Features

This connector supports up to 5 A current capacity for efficient power distribution.
The housing is made of thermoplastic material rated for high-temperature IR reflow soldering.
It features a shrouded, 2-row design with positive latching for secure connection.
Contacts are brass with tin plating, ensuring reliable conductivity and corrosion resistance.
Designed for surface mount with solder termination and straight orientation.
Operating temperature ranges from -40°C to 125°C for versatile industrial use.
Compact 3 mm pitch dual-row headers optimize PCB space in electronics applications.
The connector includes solder tabs to stabilize mounting during assembly.

Product Description

Molex 43045-1618 Micro-Fit 3.0 Series straight surface PCB header is a high-quality wire-to-board connector designed for compact power distribution with up to 5 A current capacity and 250 V voltage rating. This model features 16 contact points arranged in 2 rows with a 3 mm pitch spacing, utilizing a shrouded design for enhanced mechanical protection and secure latching during mating.

The connector housing is constructed of thermoplastic UL 94V-0 liquid crystal polymer, capable of withstanding IR reflow soldering temperatures up to 265°C. Brass contacts plated with tin provide durability and corrosion resistance. The straight orientation and surface mount termination type with solder tabs ensure robust electrical and mechanical connection to the PCB.

Operating temperatures range from -40°C to 125°C, making this connector suitable for demanding environments including industrial, military commercial off-the-shelf (COTS), solar power systems, medical equipment, telecommunications, gaming terminals, and consumer electronics such as washers and refrigerators.

Positive latching with locking ramps prevents accidental disconnection, while fully isolated dual beam terminals reduce arcing and increase reliability. The compact size and high current capacity make the Micro-Fit 3.0 series ideal for applications requiring efficient power distribution in a small footprint.

This model supports a maximum current of 5 A per contact. The thermoplastic housing material supports high temperature reflow soldering processes. Positive latching mechanism ensures secure mating connections. Fully isolated contacts reduce electrical arcing and improve performance.

Solder tabs included for secure PCB attachment.

Molex’s Micro-Fit 3.0 connectors deliver reliable performance across industrial, laboratory, manufacturing, and commercial sectors, providing flexible integration into a wide range of electronics systems. Available as part of a series designed for compact power connectivity, this 16-contact, 2-row, 3 mm pitch PCB Header is a versatile solution for modern electronic design challenges.
