Weidmüller Distribution Block 2 Way, 1 kV AC, 1 kV DC, 202A, Black, Model 1561630000

Free Delivery in India | Lowest Global Shipping Charges

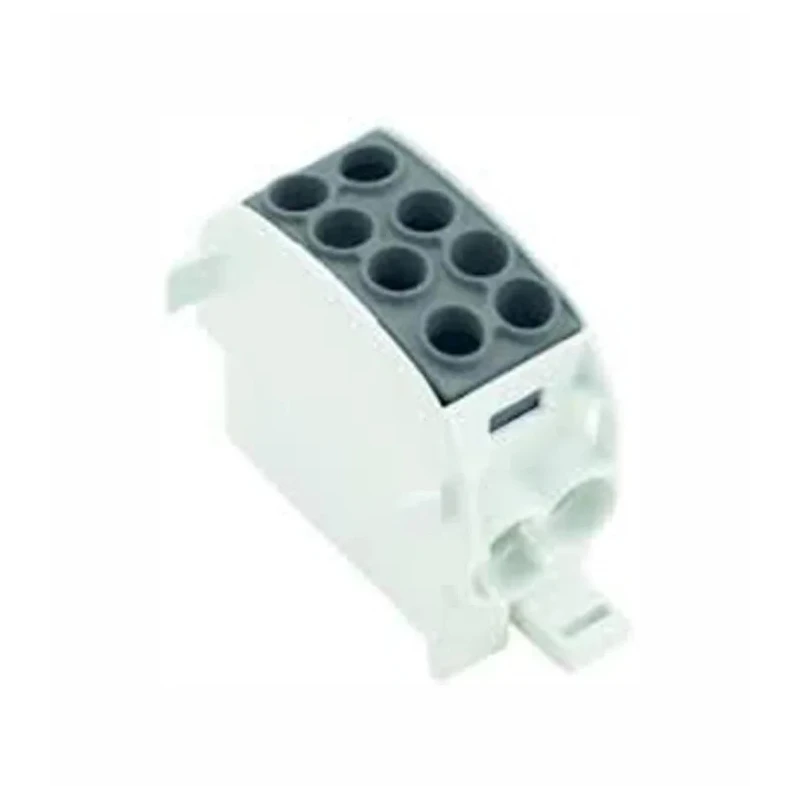

Weidmüller Distribution Block 2 Way, 1 kV AC, 1 kV DC, 202A, Black, Model 1561630000

Name: Weidmüller Distribution Block 2 Way, 1 kV AC, 1 kV DC, 202A, Black, Model 1561630000
Brand: Weidmuller
SKU: 208835
Price: 36.85 USD
Availability: InStock



Category Distribution Block Brand Weidmuller Condition New

Specifications

Country of Origin	India
Voltage	1, 1kV ac
Brand	Weidmüller
Colour	Black
Current	202A
Height	55.4mm
Length	22.2mm
Number Of Ways	2
Width	49.3mm
Housing Material	Wemid
Series	W
Maximum Operating Temperature	130°C
Minimum Operating Temperature	-50°C
Termination Type - Line Side	Screw
Wire Size - Line Side	12 to 2 AWG

Key Features

The block features a Wemid housing for high safety and durability.
Suitable for wire sizes from 12 to 2 AWG on the line side.
Screw-type terminations on both line and load sides ensure secure connections.
Operates reliably within a temperature range of -50°C to 130°C.
Compact dimensions of 49.3mm width, 55.4mm height, and 22.2mm length.
Engineered for Top Hat DIN Rail mounting compliance.
Black color housing provides clear visual identification.
Current bars made from 10 mm electrolytic copper ensure excellent conductivity.

Product Description

Weidmüller 1561630000 Distribution Block 2 Way is designed for efficient and safe electrical power distribution in industrial, commercial, and electrical installations. This distribution block supports 1 kV AC and 1 kV DC voltages and a nominal current rating of 202A, making it suitable for high power applications.

The Wemid housing material provides enhanced insulation and high temperature resistance from -50°C to 130°C (maximum operating temperature). The terminals feature screw connections on both line and load sides, compatible with wire sizes ranging from 12 to 2 AWG, ensuring flexible and secure wiring options.

The compact design with dimensions of 49.3 mm width, 55.4 mm height, and 22.2 mm length allows space-efficient installation on Top Hat DIN rails compliant with BS5584:1978 and EN 50022.

The internal current bars are constructed from 10 mm electrolytic copper, guaranteeing superior current carrying capacity and reduced electrical resistance. The nylon 6.6 housing is self-extinguishing as per UL94V-0 standards and is free from cadmium and halogen, contributing to enhanced fire safety compliance.

Additional features include touch-proof terminals complying with BS 3042, preventing accidental contact and enhancing operational safety. The block is part of the W series (WPD) range, known for high reliability and performance.

Its robust construction and compliance with industrial standards make it ideal for industrial, electrical panel, and power distribution applications. Choose this Weidmüller distribution block for safe, reliable, and efficient electrical connections and power distribution tasks.

Explore more power connectors and Distribution Blocks at EnvMart for your electrical installation needs.
