Molex Milli-Grid Series Straight Surface PCB Header, 14 Contacts, 2 mm Pitch, 2 Row, Shrouded 87832-1420

Free Delivery in India | Lowest Global Shipping Charges

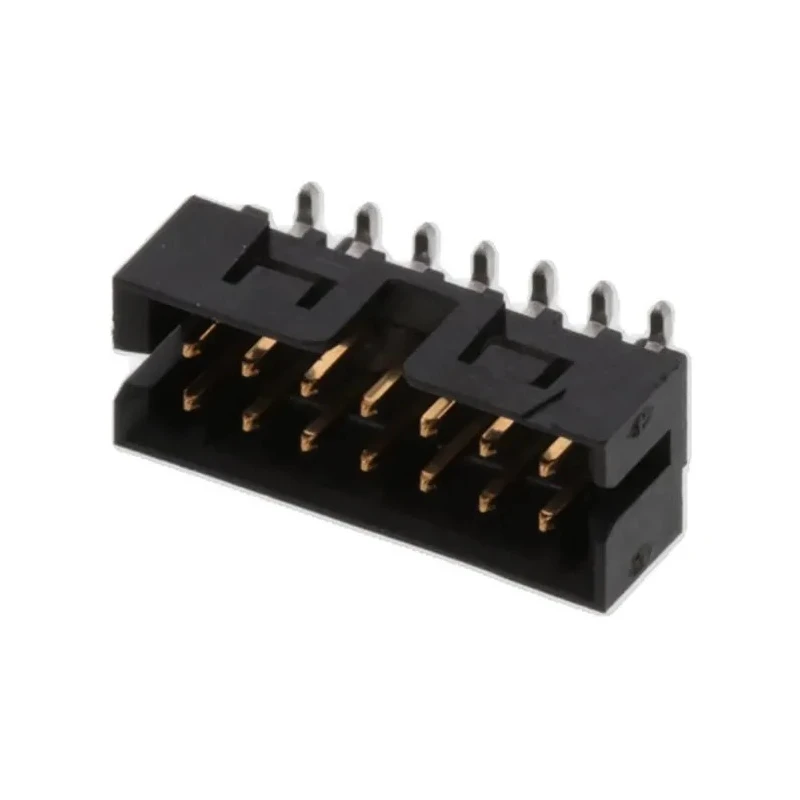

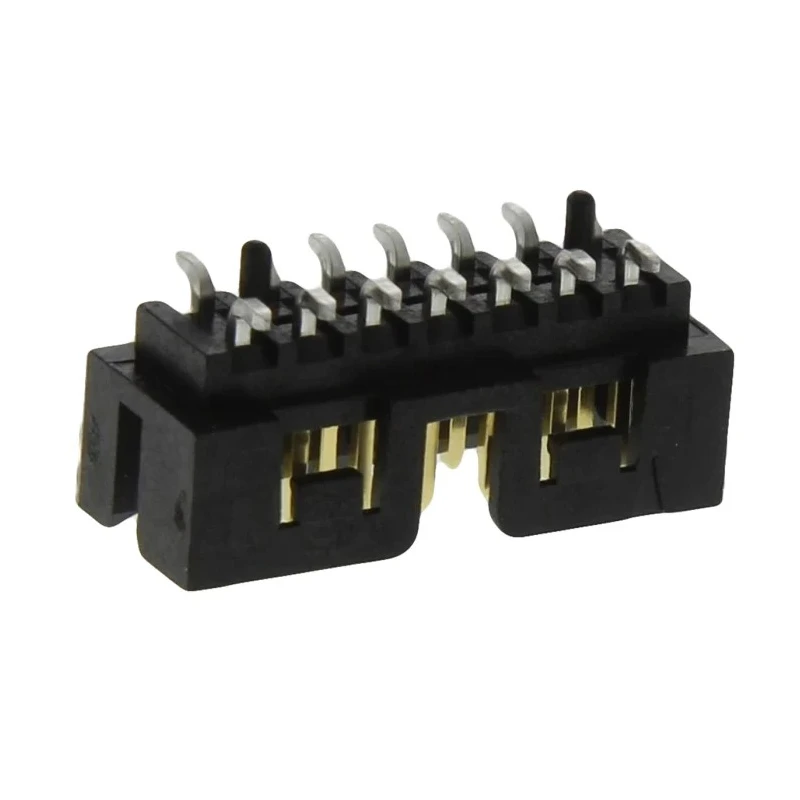

Molex Milli-Grid Series Straight Surface PCB Header, 14 Contacts, 2 mm Pitch, 2 Row, Shrouded 87832-1420

Name: Molex Milli-Grid Series Straight Surface PCB Header, 14 Contacts, 2 mm Pitch, 2 Row, Shrouded 87832-1420
Brand: Molex
SKU: 206307
Price: 2.15 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	125V
Brand	Molex
Orientation	Straight
Current	2A
Mount Type	Surface
Housing Material	Nylon
Contact Material	Phosphor Bronze
Series	Milli-Grid
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Contact Plating	Gold
Number of Contacts	14
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	2.5mm
Mating Pin Length	2mm

Key Features

The header supports a 2 mm pitch for space-efficient PCB design.
It provides 14 male contacts arranged in two rows for versatile wiring.
Manufactured with nylon housing and phosphor bronze contacts plated with gold for durability and conductivity.
Capable of handling currents up to 2A and a voltage rating of 125V.
Operates within a temperature range of -55°C to 105°C, suitable for various environments.
Features a straight orientation and surface mount type for compact board assembly.
The shrouded design protects contact points from damage and ensures secure connections.
Solder termination ensures firm solder joint stability, aiding in vibration resistance.

Product Description

Molex 87832-1420 Milli-Grid Series Straight Surface PCB Header is designed for connecting low-power electrical circuits on printed circuit boards. This PCB Header features 14 male contacts arranged in two straight rows with a 2 mm pitch, supporting wire-to-board connections with reliability and compactness.

The housing is made from durable nylon material, providing mechanical stability and insulating properties. The phosphor bronze contact material is tin-plated with 0.38μm gold to ensure enhanced conductivity and corrosion resistance, guaranteeing long-term performance. Rated for 2A current and 125V voltage, this header is suitable for applications involving fax machines, security alarms, satellite navigation, and digital media devices.

Its shrouded design protects contacts from mechanical damage and accidental shorts, improving safety and connection quality. The surface mount technology (SMT) termination type ensures an extra firm solder joint, particularly useful in environments subject to vibration or mechanical stress. Operating temperature ranges from a minimum of -55°C up to a maximum of 105°C, suitable for both industrial and commercial electronic assemblies.

The product mates with Molex 51110 Series receptacles, serving a wide range of electronic assembly needs. With a compact footprint and high durability for over 100 mating cycles, the header supports reliable long-term usage.

The compact 2 mm pitch reduces board space requirements while maintaining performance. Gold-plated phosphor bronze contacts provide excellent electrical and mechanical properties. The shrouded housing enhances contact protection and connection reliability.

Surface mount straight orientation simplifies PCB layout and routing. Wide temperature range ensures robustness in various environments. Solder termination type improves mechanical strength of connections. Ideal for engineers and technicians requiring compact, high performance PCB interfaces.
