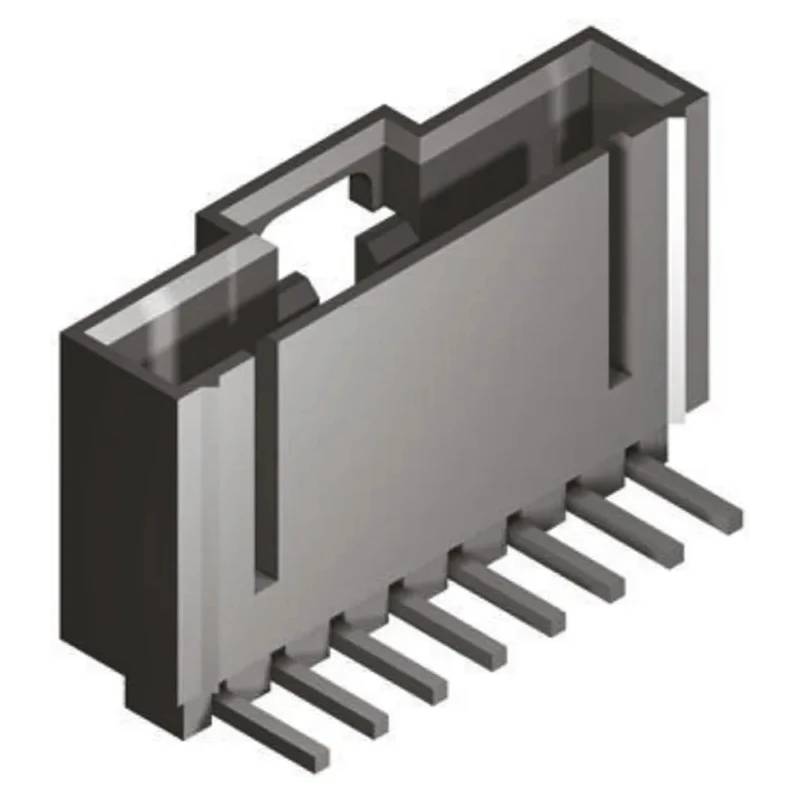

Molex SL Series Right Angle Through Hole PCB Header 10 Contacts 2.54 mm Pitch 1 Row Shrouded 70553-0009

Molex 70553-0009 SL Series Right Angle Through Hole PCB Header is engineered for reliable electronic connections in industrial and commercial PCB assemblies. It features 10 male contacts arranged in a single row with a 2.54 mm pitch, offering a compact, high-density interface solution. The shrouded header design increases mechanical protection and alignment accuracy during mating.

The connector housing is made from high temperature thermoplastic material, capable of withstanding harsh conditions, while the contact pins are composed of phosphor bronze with a gold plating thickness of 0.38 μm, ensuring low contact resistance and long-term reliability.

Rated for 3 amps continuous current and 250 volts operating voltage, this connector supports typical power requirements in electronic equipment. Its through-hole mounting style and solder tail termination provide a secure and robust mechanical connection to PCBs.

The tail pins extend 3.3 mm facilitating effective solder joints. It operates efficiently over a wide temperature range from -40°C to 105°C, suitable for applications in industrial automation, manufacturing machinery, and electronic instrumentation.

This header mates with Molex 70066G and 70066N series housings, allowing flexible wiring options. Its 90° orientation is ideal when PCB layout requires angled connections. The header is shrouded and right angled to enhance mechanical stability.

Constructed using high temperature thermoplastic housing for durability. Contacts are made of phosphor bronze material plated with 0.38 μm gold for excellent conductivity. Rated for a current of 3A and voltage up to 250V for robust performance.

Designed for through-hole mounting and solder termination ensuring secure assembly. Tail pin length is 3.3mm for proper PCB insertion. Operating temperature range spans from -40°C to 105°C, suitable for diverse environments.

Compatible with 70066G and 70066N series housings.

This product is ideal for electronic equipment manufacturing, test instrumentation, industrial control systems, and other applications requiring durable PCB connectors with reliable electrical performance.
