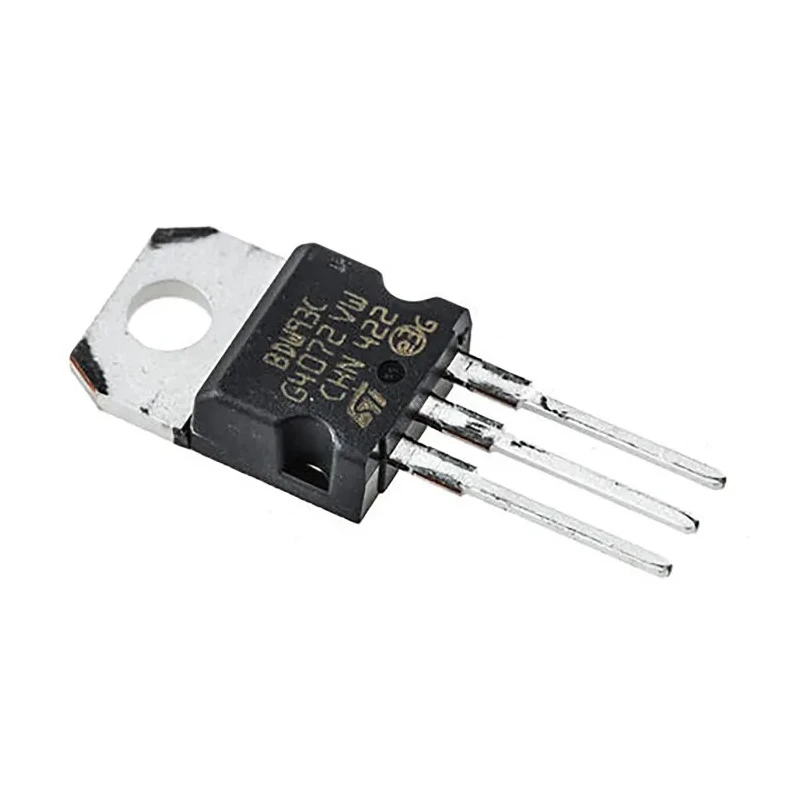

STMicroelectronics NPN Darlington Transistor, 12 A 100 V 80 W TO-220 Package BDW93C

STMicroelectronics BDW93C is a high-power NPN Darlington Transistor featuring a maximum continuous collector current of 12 A and a maximum collector emitter voltage of 100 V. Its robust TO-220 package supports through-hole mounting with 3 pins, making it ideal for industrial, power supply, amplifier, and switching applications.

The transistor provides a high DC current gain (minimum hFE of 100), which enhances signal amplification efficiency in electronic circuits. It boasts a maximum power dissipation of 80 W, enabling reliable operation in demanding power environments.

The device supports a wide operating temperature range from -65°C to 150°C, ensuring durability and performance stability under harsh conditions. Electrical characteristics include a maximum collector-emitter saturation voltage of 2 V and emitter-base voltage of 5 V, allowing for efficient switching and voltage handling.

With compact physical dimensions of 9.15 mm height and 10.4 mm length, the BDW93C transistor is suited for PCB designs with limited space. It contains a single transistor element in its Darlington pair configuration, optimized for power transistor applications.

This product is not certified to automotive standards but is widely used in industrial electronics, power management, manufacturing controls, and other applications requiring high current and voltage capabilities.

Compact TO-220 package allowing easy heat dissipation and mounting. Robust electrical ratings supporting continuous high current and voltage. Suitable for industrial, electronic component manufacturing, and power supply design.

Reliable operation over a broad temperature range. Ideal choice for amplification and switching in power transistor circuits. Explore similar high-performance transistors and electronic components in the Electronics category at EnvMart for your project and production needs.
