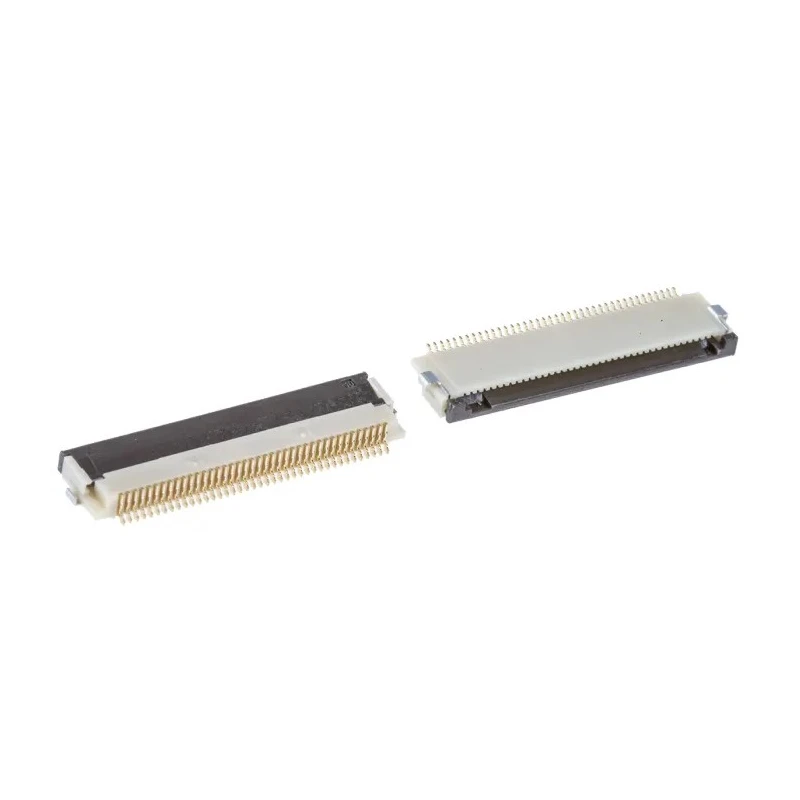

Hirose 0.5 mm Pitch 40 Way Right Angle Female FPC Connector, Solder FH12

Hirose FH12 model 0.5 mm Pitch 40 Way Right Angle Female FPC Connector, Solder type, offers a highly reliable and space-saving FPC/FFC connection solution designed to support modern electronic devices. The connector features a precise 0.5 mm pitch with 40 contacts made of phosphor bronze and gold plating, ensuring durable and efficient electrical performance. The one-touch rotating Zero Insertion Force (ZIF) actuator provides easy and secure mating with a tactile click to confirm proper engagement.

The surface mount connector's right angle orientation allows for high density mounting, making it suitable for compact PCB designs. Its nylon housing provides mechanical strength and electrical insulation, functioning reliably across temperatures ranging from -40°C to 70°C. The locking mechanism further guarantees secure attachment during device operation.

Applications for this Hirose FH12 FPC Connector extend across consumer electronics such as mobile phones, GPS units, notebook PCs, data terminals, LCD TVs, digital and video cameras, among other handheld devices requiring reliable LCD connections.

The connector contains 40 phosphor bronze contacts with gold plating for high conductivity and protection against corrosion. The 0.5 mm pitch supports compact, high-density PCB arrangements. The Zero Insertion Force (ZIF) one-touch rotating actuator facilitates easy and safe connection without damage to the flexible printed circuit.

Right angle orientation enables efficient PCB space utilization. Nylon housing ensures durability and electrical insulation. Operates at 50V AC voltage and supports 500mA current. Functions effectively in temperatures from -40°C to 70°C.

Bottom contact position optimizes connection design options. Includes a locking mechanism to secure the cable connection. Widely used in mobile communications, computing, and consumer electronic devices for LCD interfacing.

Choose Hirose FH12 connectors for reliable, precise, and compact flexible circuit board interfacing solutions in industrial, communications, and consumer electronic applications. Discover more connectors and related components at EnvMart, your trusted source for electronic connectivity solutions.
