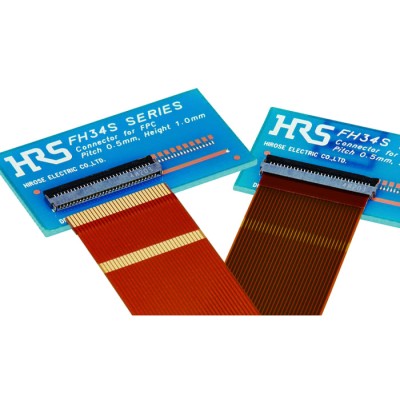

Hirose 0.5 mm Pitch 12 Way Straight Female FPC Connector, Solder FH34SRJ

Hirose FH34SRJ 0.5 mm Pitch 12 Way Straight Female FPC Connector, model FH34SRJ, is a surface mount technology (SMT) zero insertion force (ZIF) connector designed for flexible printed circuits (FPC) and flexible flat cables (FFC). Operating at 50V AC and 500 mA current rating, this connector ensures reliable signal transmission in compact electronic assemblies.

Its low profile height of 1.00 mm and narrow width of 3.8 mm make it suitable for highly constrained spaces in devices such as mobile phones, notebook computers, and LCD monitors. The connector features a unique back-flip rotating actuator that opens from the back, enabling effortless insertion and secure locking of the flexible cable, confirmed by a tactile click when fully closed.

The contact material is phosphor bronze with a nickel and gold plating to ensure low contact resistance and long-lasting performance. The connector supports both top and bottom contacts, providing greater design flexibility. The polyamide and liquid crystal polymer housing provides robust mechanical protection and meets halogen-free environmental standards IEC61249-2-21.

The connector's chamfered inner housing walls facilitate smooth FPC insertion, while its flat upper surface allows efficient vacuum pick-up during automated assembly. The bottom side is solid, permitting conductive PCB traces underneath without short circuit risks.

Low profile height of 1.00 mm for compact PCB design. Back-flip rotating actuator for easy ZIF operation. High retention force offering reliable electrical connection. Phosphor bronze contacts with nickel and gold plating.

0.5 mm pitch with 12 contacts in a single row. Polyamide and liquid crystal polymer housing for durability. Top and bottom contact positions for flexible mounting. Halogen free compliant to IEC61249-2-21 standards. Suitable for mobile phones, notebooks, DVDs, and LCDs.

Flat upper surface enables vacuum pick for automated placement.

This connector is ideal for industries including consumer electronics manufacturing, telecommunications, and computing devices where miniaturization and reliable interconnections are critical. Explore further Hirose connectors and PCB components in our Electronics Components category at EnvMart.
