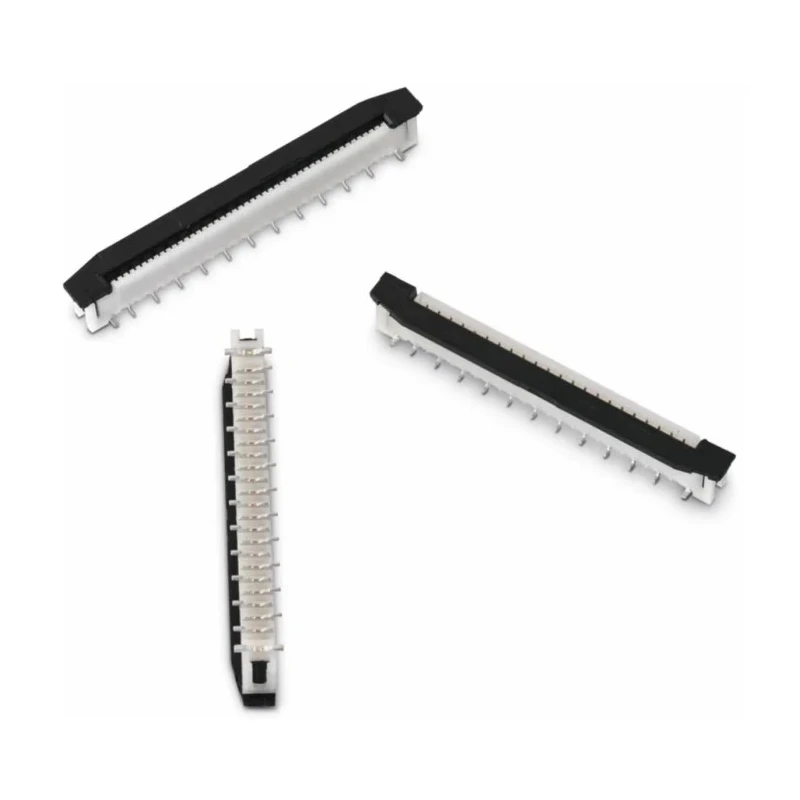

Wurth Elektronik WR-FPC 1 mm Pitch 18 Way Vertical Female FPC Connector ZIF Vertical Contact 686118183822
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V ac |
| Brand | Wurth Elektronik |
| Orientation | Vertical |
| Current | 1A |
| Mount Type | Surface |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | ZIF Vertical Contact |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 18 |
| Contact Gender | Female |
| Connector Gender | Female |
Key Features
- Compact 1 mm pitch allows for high-density circuit board applications.
- Equipped with 18 phosphor bronze contacts to ensure reliable connectivity.
- Features a slide lock actuator for easy insertion and secure retention of the flexible printed circuit (FPC).
- Supports a current rating of 1A with a voltage rating of 125V AC.
- Connector gender is female with vertical orientation and a locking mechanism to enhance connection stability.
- Termination type is ZIF vertical contact suitable for SMT mounting.
- Operates reliably in temperatures ranging from -25°C to 85°C.
- Contact plating of tin over nickel ensures corrosion resistance and durability.
Product Description
Wurth Elektronik 686118183822 FPC Connector is a specialized 1 mm pitch Zero Insertion Force (ZIF) vertical female connector designed for surface mount technology and high-density applications.
This connector features 18 phosphor bronze contacts with tin over nickel plating, ensuring long-lasting conductivity and resistance to corrosion. The slide lock actuator mechanism facilitates easy insertion of flexible printed circuits (FPCs) and maintains secure mechanical and electrical connections during operation.
Rated for 1 ampere current and 125 volts AC, this connector supports a wide temperature range from -25°C to 85°C, making it suitable for various demanding industrial and commercial environments.
The WR-FPC series is commonly utilized in consumer electronics such as personal computers, tablets, mobile phones, and cameras due to its compact design and reliable performance. It is also extensively used in industrial control equipment, medical devices, and other precision instruments where miniaturization and dependable connector performance are critical.
This product complies with RoHS standards, emphasizing environmental responsibility and user safety. The one-row 18-way female connector accommodates vertical contact termination, optimized for low insertion force and high retention force provided by the slide lock actuator.
Compact design with 1 mm pitch to maximize PCB real estate. Slide lock actuator for easy and secure FPC connection. Phosphor bronze contacts with tin over nickel plating to resist corrosion. Rated for 1A current and 125V AC voltage.
Wide operational temperature range from -25°C to 85°C ensures reliability. RoHS compliance guarantees adherence to environmental standards. Suitable for consumer electronics, industrial, medical, and commercial applications.
18-way female connector with vertical orientation and locking mechanism. Explore more products in the FPC Connectors category to find compatible connectors and accessories for high-density electronic assemblies at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 1A and a voltage rating of 125V AC.
It features a compact 1 mm pitch, making it suitable for high-density circuit board applications.
The contacts are made of phosphor bronze and are plated with tin over nickel for corrosion resistance.
This unit operates reliably in temperatures ranging from -25°C to 85°C.
It utilizes a ZIF vertical contact termination type, optimized for surface mount technology (SMT).
This connector is equipped with 18 contacts.
The connector has a vertical orientation, which is suitable for specific mounting configurations.
Yes, it complies with RoHS standards, ensuring adherence to environmental regulations.
It features a slide lock actuator that allows for easy insertion and secure retention of the flexible printed circuit (FPC).
This model is commonly utilized in consumer electronics, industrial control equipment, medical devices, and other precision instruments.
The connector gender is female, designed for vertical contact termination.
The connector is manufactured in India.
