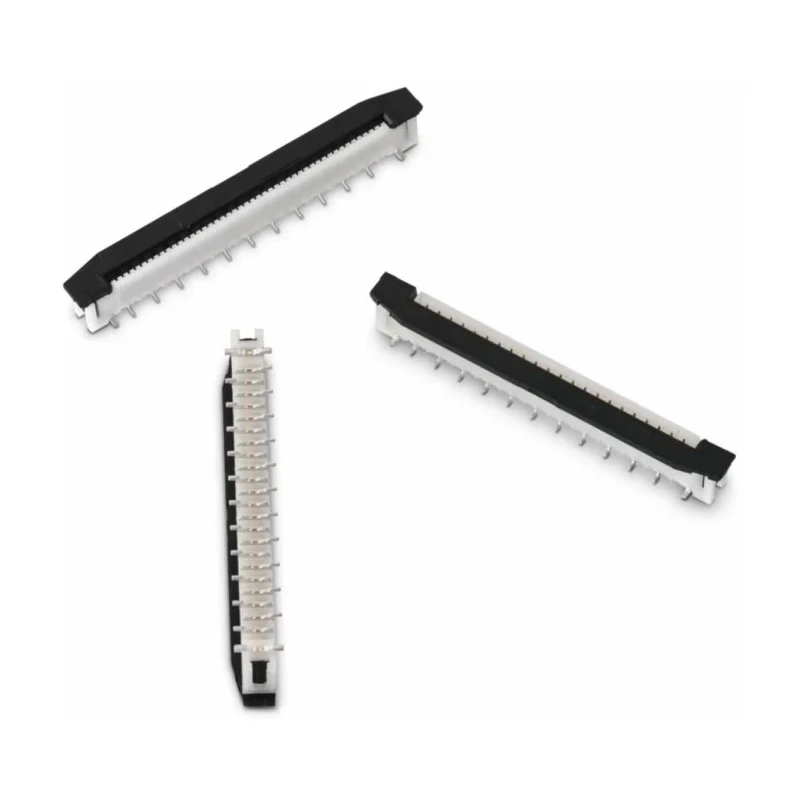

Wurth Elektronik WR-FPC 1 mm Pitch 5 Way Vertical Female FPC Connector Surface Mount 686105183822
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V ac |
| Brand | Wurth Elektronik |
| Orientation | Vertical |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 5 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
Key Features
- Features 5 contacts with 1 mm pitch for precise electrical interfacing.
- Surface mount vertical orientation optimizes space on PCBs.
- Constructed with phosphor bronze contacts plated with tin over nickel.
- Supports currents up to 1A and voltage up to 125V AC for moderate power applications.
- Equipped with a zero insertion force (ZIF) slide lock actuator for easy FPC insertion and secure retention.
- Polyamide housing offers durability and thermal stability between -25°C and 85°C.
- Suitable for miniaturized, high-density electronics including displays, touch panels, and consumer devices.
- Ensures mechanical and electrical reliability in industrial, medical, and commercial equipment.
Product Description
Wurth Elektronik 686105183822 FPC Connector is a high-quality 1 mm pitch, 5 way vertical female connector designed for surface mount technology (SMT) applications. This connector features a compact design ideal for high-density PCB layouts and incorporates a ZIF (Zero Insertion Force) slide lock actuator to facilitate easy insertion of flexible printed circuits (FPC) while maintaining high retention force.
The contacts are made of phosphor bronze and plated with tin over nickel to ensure excellent conductivity and corrosion resistance. Its polyamide housing provides robust mechanical support and operates effectively within a temperature range of -25°C to 85°C, making it suitable for various industrial environments.
This 5 contact FPC Connector supports up to 1 ampere current and 125 volts AC, making it ideal for moderate power electronic assemblies in sectors such as consumer electronics, industrial machinery, medical devices, and business equipment.
Applications include interfacing with miniaturized equipment such as displays, touch screens, personal computers, tablets, mobile phones, and cameras. The vertical orientation and surface mount design maximize PCB real estate utilization.
Features 5 contacts with 1 mm pitch for precise electrical interfacing. Zero insertion force slide lock actuator for secure and easy connection. Constructed from phosphor bronze with tin over nickel plating for durability and conductivity.
Polyamide housing ensures thermal and mechanical stability. Suitable for a wide range of industrial, commercial, and medical electronic applications. Compact SMT vertical layout supports high-density PCB designs. Electrical ratings up to 1A current and 125V AC voltage.
Discover more connectors and components from Wurth Elektronik on EnvMart, designed for demanding electronics manufacturing and assembly requirements.
