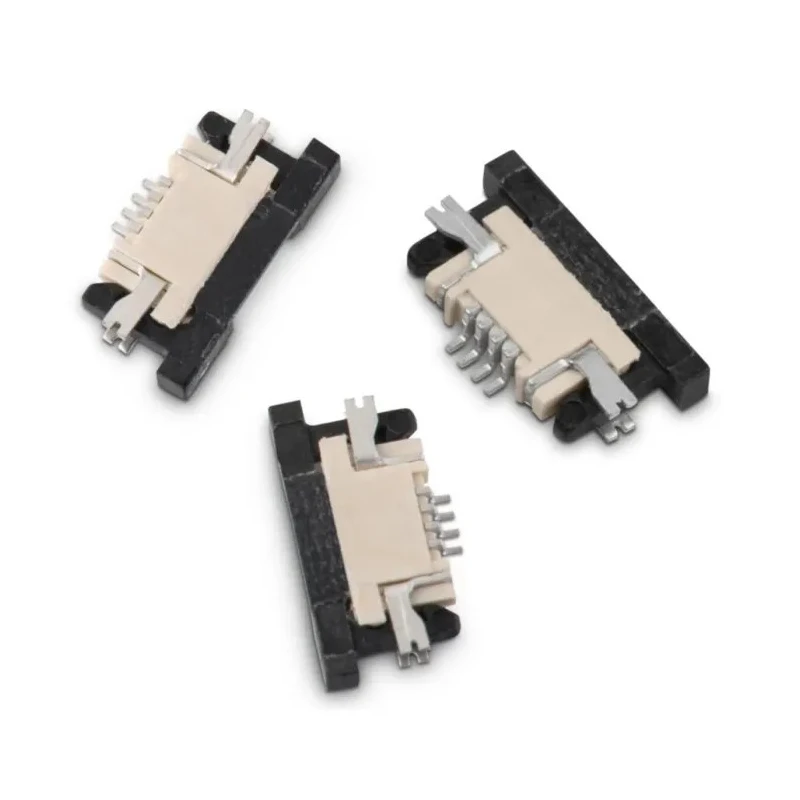

Wurth Elektronik WR-FPC 0.5 mm Pitch 40 Way Horizontal Female FPC Connector Surface Mount 687140183722

Wurth Elektronik 687140183722 is a 40 Way Horizontal Female FPC Connector designed for surface mount applications. This connector features a precise 0.5 mm pitch and a low profile height of just 1.2 mm, making it ideal for use in high density miniaturized electronic designs.

Featuring a Zero Insertion Force (ZIF) flip lock actuator, the connector allows easy insertion and secure locking of Flexible Printed Circuit (FPC) cables, ensuring both reliable electrical and mechanical connections. The phosphor bronze contacts are plated with tin over nickel to provide durable conductivity and corrosion resistance.

The connector supports a current rating of 400mA and a voltage rating of 50V ac, making it suitable for low voltage signal applications. It operates reliably within a temperature range of -25°C to 85°C, making it appropriate for various industrial, consumer electronics, medical, and business equipment environments.

The housing is manufactured from Liquid Crystal Polymer material known for its strength and stability in demanding conditions. Solder tabs on both sides enhance mechanical fastening to the PCB for enhanced durability during assembly and usage.

This product is part of the WR-FPC series offering flexibility with both top and bottom contact configurations; this particular model features bottom contacts in a single row layout, with a horizontal orientation. Its locking mechanism ensures the FPC is retained securely, reducing the risk of disconnection under vibration or handling.

Typical applications include displays, touch panels, screens, personal computers, tablets, mobile devices, cameras, as well as business, industrial, and medical equipment requiring high density interconnections.

The connector features a low profile design with a height of 1.2 mm. Use of a flip lock actuator provides ZIF insertion and secure retention. Contact material is phosphor bronze plated with tin over nickel. Electrical ratings: 400mA current, 50V ac voltage.

Housing material is Liquid Crystal Polymer for durability. Surface mount termination with solder tabs for PCB retention. Operating temperature from -25°C to 85°C. 40 contacts in a single row with horizontal orientation. Suitable for miniaturized high density electronic applications.
