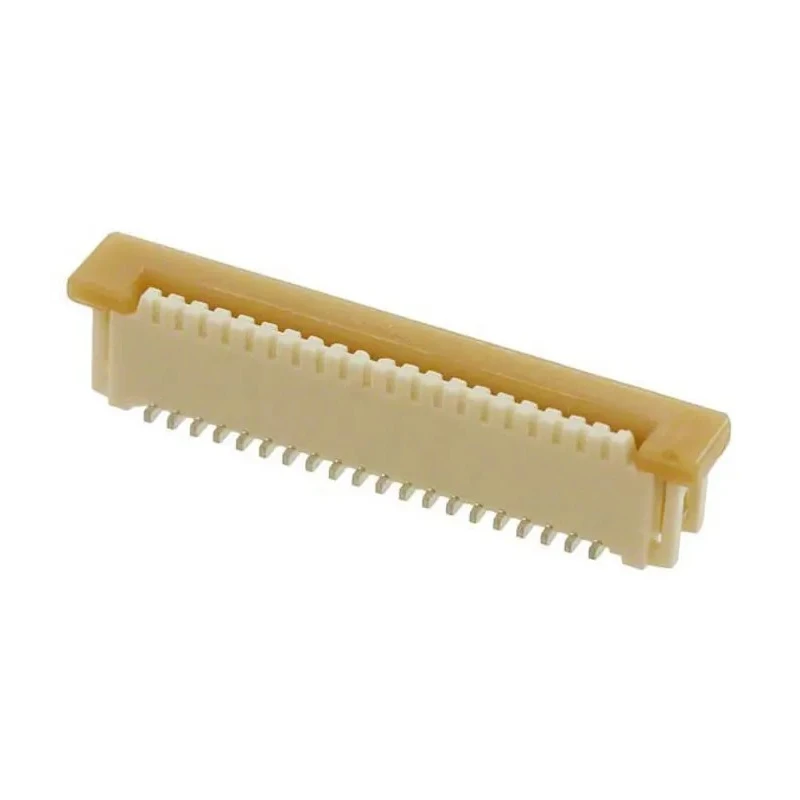

Molex 1 mm Pitch 20 Way Vertical Female Easy-On FFC/FPC Surface Mount Connector 526102072

Molex 526102072 is a 1 mm pitch 20 way vertical female Easy-On FFC/FPC connector designed for surface mount applications. It features high-quality gold-plated phosphor bronze contacts housed in a robust nylon body, providing reliable electrical and mechanical performance.

This connector supports a current rating of 1 A and operates efficiently across a wide temperature range from -40°C to 85°C. Its vertical contact position and locking mechanism ensure secure and stable connections to printed circuit boards (PCBs) in compact electronic assemblies.

The connector is a single-row design from the 52610 series, optimized for Easy-On type flexible printed circuits and flat flexible cables. Its surface mount termination is ideal for automated assembly and consistent solder joint quality.

Molex’s 526102072 is widely used in consumer electronics, industrial equipment, instrumentation, and other applications requiring compact, reliable FPC cable connections. Its gold plating enhances corrosion resistance and contact integrity over time.

1 mm pitch enables precise cable connections for compact electronic devices. 20 way contacts support reliable multi-pin connectivity. Vertical orientation allows efficient PCB mounting and connector access. Female connector with gold-plated phosphor bronze contacts for durability and conductivity.

Surface mount termination with locking mechanism enhances mechanical stability. Housing material constructed from durable nylon for insulation and strength. Operating temperature range from -40°C to 85°C suitable for varied environments.

Maximum current rating of 1 A suitable for low power electronic applications. Single row configuration simplifies assembly and space usage on PCB. Series 52610 connector ensures compatibility with Easy-On FFC/FPC cable types.

This high-quality Molex connector delivers precision, reliability, and ease of use for advanced electronics manufacturing. Browse other FPC Connectors and electronic components at EnvMart for complementary solutions.
