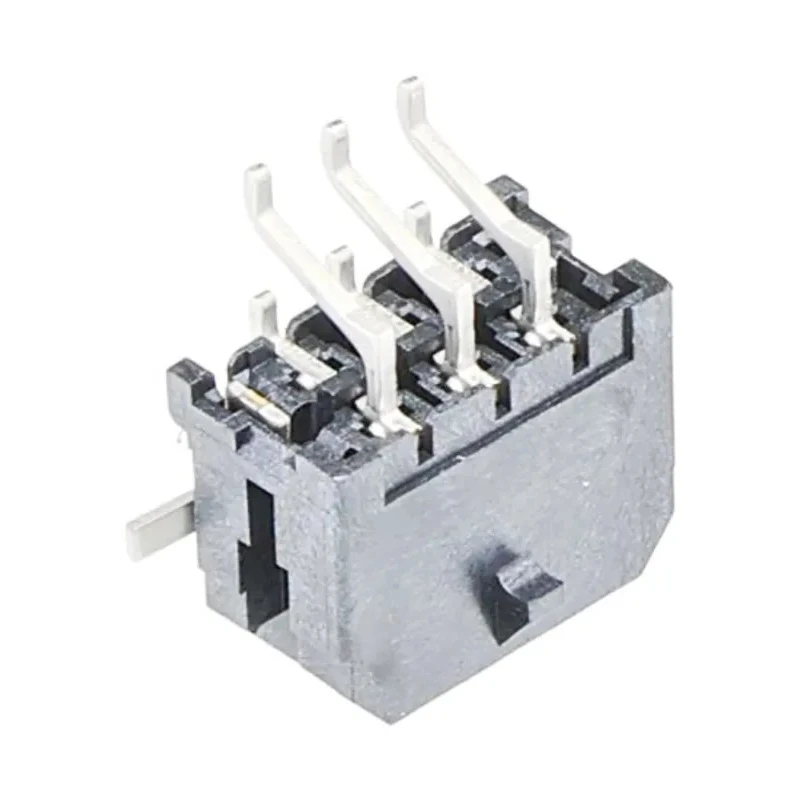

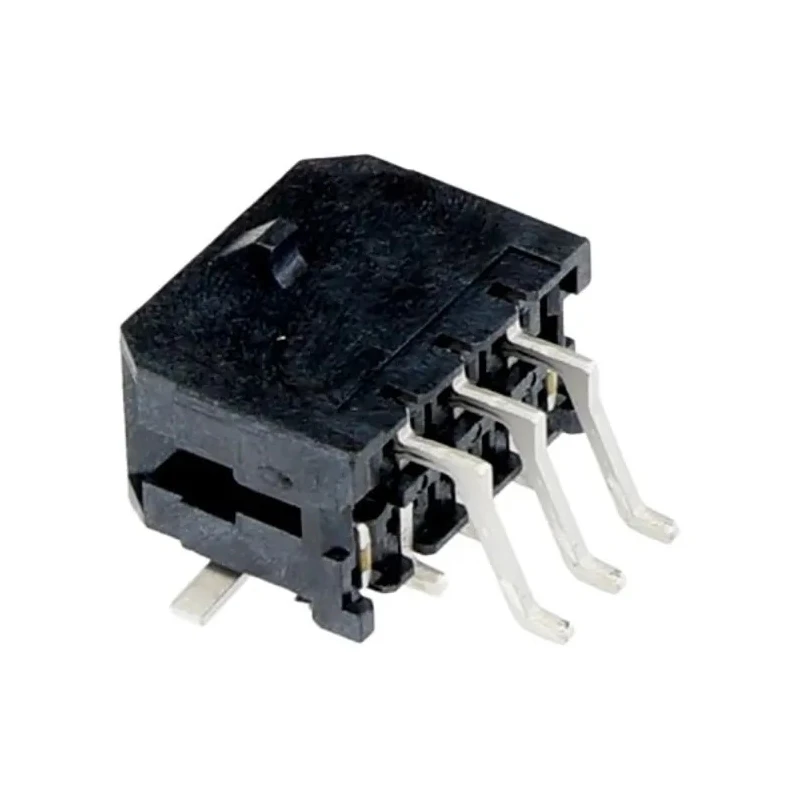

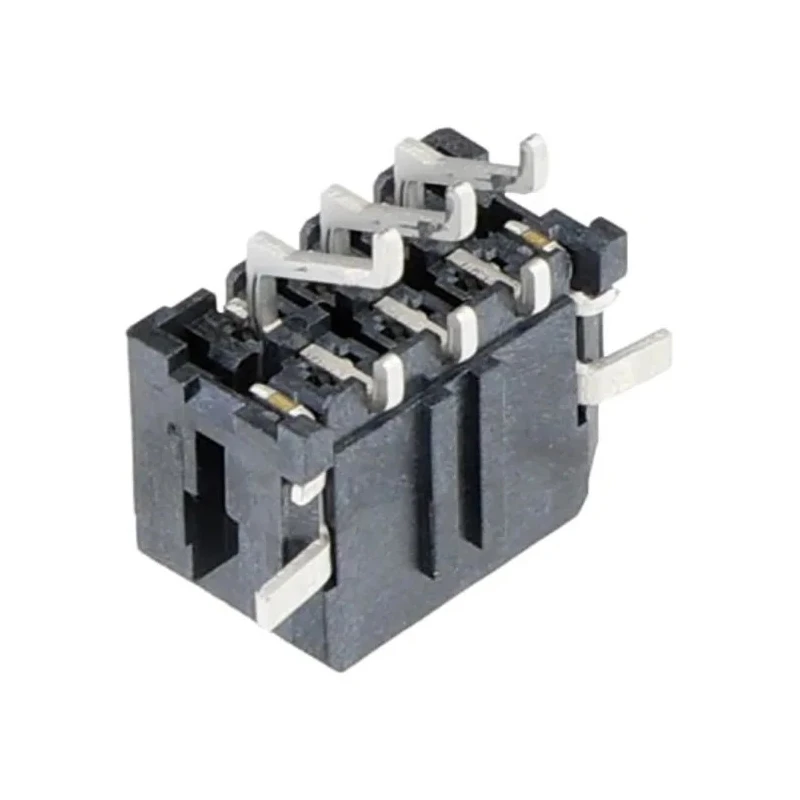

Molex 43045 Series Right Angle Surface PCB Header, 6 Contacts, 3 mm Pitch, 2 Row, Shrouded, 600V, 8.5A Current 43045-0610

Free Delivery in India | Lowest Global Shipping Charges

Molex 43045 Series Right Angle Surface PCB Header, 6 Contacts, 3 mm Pitch, 2 Row, Shrouded, 600V, 8.5A Current 43045-0610

Name: Molex 43045 Series Right Angle Surface PCB Header, 6 Contacts, 3 mm Pitch, 2 Row, Shrouded, 600V, 8.5A Current 43045-0610
Brand: Molex
SKU: 206462
Price: 4.25 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	600V
Brand	Molex
Orientation	Right Angle
Current	8.5
Mount Type	Surface
Housing Material	Thermoplastic
Contact Material	Brass
Series	43045
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	3mm
Contact Plating	Gold
Number of Contacts	6
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3mm

Key Features

High current rating of 8.5A supports demanding electronic applications.
Right angle orientation and surface mount type optimize PCB layout flexibility.
Shrouded design shields contacts from damage and contamination.
Gold-plated brass contacts ensure corrosion resistance and reliable conductivity.
Thermoplastic housing offers durability and withstands temperatures from -40°C to 125°C.
Supports up to 30 mating cycles for long service life.
Compact 3 mm pitch enables space-efficient PCB designs.
Suitable for wire-to-board connections with solder termination for robust joints.

Product Description

Molex 43045-0610 is a Right Angle Surface PCB Header featuring 6 male contacts in dual rows with a compact 3 mm pitch. It operates at a voltage of 600V and supports a current rating of 8.5A, making it ideal for high-performance electronic applications.

The connector uses a thermoplastic housing material with a shrouded design to protect contacts during operation and installation, ensuring long-term reliability. The brass contacts are plated with 0.38μm of gold for enhanced corrosion resistance and reliable electrical connection. The solder termination type provides secure wire-to-board connectivity, suitable for permanent joints.

Operating temperature ranges from -40°C to 125°C, accommodating high-temperature environments. The connector supports up to 30 mating cycles, offering durability in industrial, laboratory, manufacturing, and commercial electronics.

The right angle orientation and surface mount style optimize printed circuit board space and layout. The PCB header also includes retention features for secure positioning to resist mechanical stress and vibrations.

High current handling of 8.5A supports reliability in demanding use cases. Glow wire compatibility ensures safety against high-temperature exposure. Gold-plated contacts provide enhanced corrosion resistance. Durable design supports multiple mating cycles.

Compact 3 mm pitch enables space-saving PCB designs. Thermoplastic housing suitable for industrial and commercial electronics. Solder termination ensures robust wire-to-board connections. Recommended PCB thickness is 1.60 mm for optimal performance.

Applications include power distribution, automation, control systems, and consumer electronics.

This Molex PCB header is engineered for high reliability and efficient connection in various electronic assemblies, contributing to durable and safe system designs. Explore other PCB Headers and connectors for your industrial and manufacturing needs at EnvMart.
