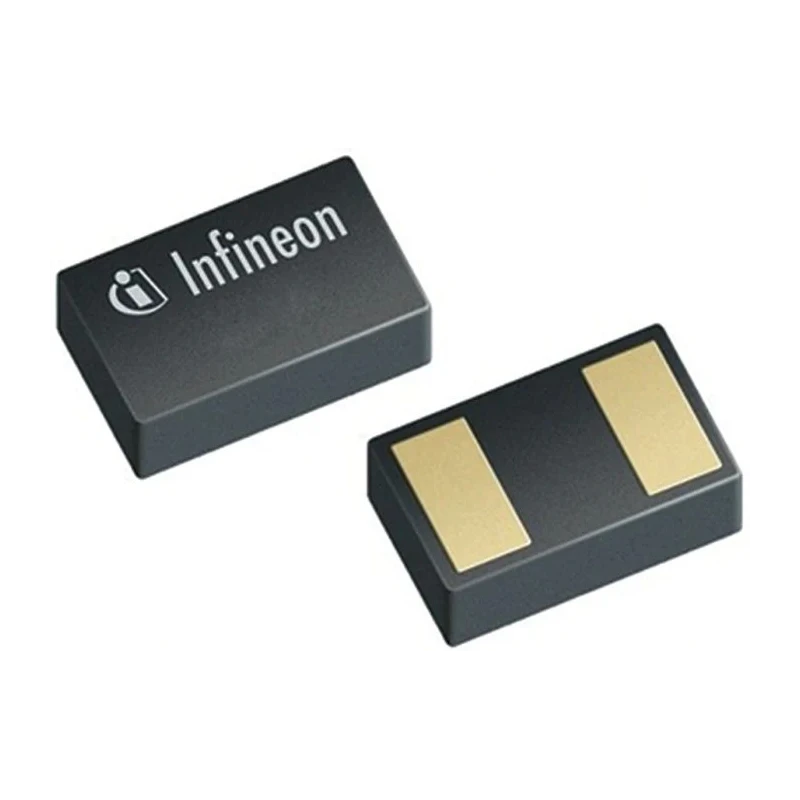

Infineon 1-Element Bi-Directional TVS Diode, Surface Mount, 2-Pin, 7V Breakdown Voltage, 3A Peak ESD112B102ELE6327XTMA1

Infineon ESD112B102ELE6327XTMA1 is a 1-element bi-directional transient voltage suppression (TVS) diode designed for surface mount technology (SMT) applications. It comes in a compact 2-pin TSLP package ideal for protecting sensitive electronic components from electrostatic discharge (ESD) and transient voltage events.

Featuring a minimum breakdown voltage of 7 volts and a maximum reverse stand-off voltage of 5.3 volts, this diode reliably clamps excessive voltages to a maximum of 44 volts thanks to its clamping voltage rating. It can handle transient currents up to 3 amperes, offering effective surge protection.

The device operates in a broad temperature range from -55°C to 125°C, suitable for industrial and commercial electronic applications. It maintains a low maximum reverse leakage current of 50nA, contributing to energy efficiency.

With dimensions of 1 mm length, 0.6 mm width, and 0.26 mm height, the diode's compact footprint enables versatile circuit board design, especially in high-density electronics.

This TVS diode is ideal for industrial, automotive, telecommunications, and consumer electronics sectors requiring high-speed ESD protection. Its bi-directional configuration makes it suitable for circuits where protection is needed from both positive and negative voltage transients.

This diode offers a minimum breakdown voltage of 7V, ensuring protection against voltage spikes. The device supports a maximum peak pulse current of 3A for transient voltage suppression. Designed for surface mount applications with a small form factor of 1mm length and 0.6mm width.

The diode features a clamping voltage of 44V, limiting voltage to safe levels during surges. Operates reliably in extreme temperatures ranging from -55°C to 125°C. Specifically engineered for high-speed ESD protection in electronic circuits.

Bi-directional configuration enables protection in both voltage polarities. Low maximum reverse leakage current of 50nA ensures minimal power loss. Compact package type TSLP with 2 pins enables easy PCB integration. Manufactured to be a high-quality, new-condition semiconductor component.

This data sheet complies with industry standards for TVS Diodes but does not indicate specific certifications. Explore additional Infineon semiconductor components and discrete electronic devices available in the EnvMart catalog to support your high-performance designs.
