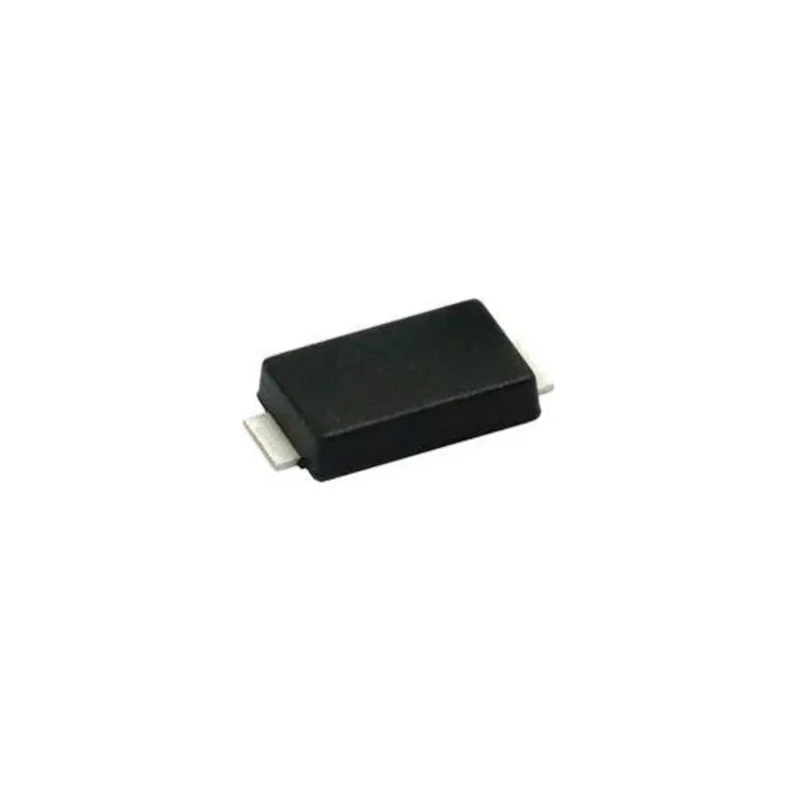

Vishay 1-Element Uni-Directional TVS Diode 600 W Peak Pulse Power, Surface Mount DO-221 Package SMA6F90A-M3/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1mm |
| Length | 4.35mm |
| Model | SMA6F90A-M3/H |
| Width | 2.7mm |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-221 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 146V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 100V |
| Maximum Reverse Stand-off Voltage Vwm | 90V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 21.2A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Designed for protection against voltage transients in sensitive electronics.
- Uni-directional polarity for effective clamping capability.
- Operates within a temperature range from -55°C to 175°C.
- Supports peak pulse current of 21.2 A and maximum stand-off voltage of 90 V.
- Small package dimensions with length 4.35 mm, width 2.7 mm, and height 1 mm.
- Low maximum reverse leakage current of 1 μA ensures minimal power loss.
- RoHS compliant and suitable for automated placement in PCB assembly.
- Used widely in consumer, industrial, telecommunication, and computer applications.
Product Description
Vishay SMA6F90A-M3/H is a 1-element uni-directional Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronics from damaging voltage spikes caused by inductive load switching and lightning.
This TVS diode features a peak pulse power dissipation of 600 W and is housed in a compact DO-221 surface mount package with dimensions of 4.35 mm length, 2.7 mm width, and 1 mm height, facilitating automated PCB assembly with a low profile.
The diode has a minimum breakdown voltage (Vbr) of 100 V, a maximum reverse stand-off voltage (Vwm) of 90 V, and a clamping voltage (Vc) of 146 V, enabling it to clamp transient voltages effectively and protect connected circuits.
It supports a peak pulse current (Ippm) of 21.2 A and a test current (It) of 1 mA, with a maximum reverse leakage current of just 1 μA, ensuring efficiency and reliability. Operating temperature ranges from -55°C to 175°C, making it suitable for harsh industrial, commercial, and telecommunications environments.
The device complies with MSL level 1 per J-STD-020 and is RoHS certified, ensuring compliance with environmental and quality standards.
This TVS Diode is ideal for protecting integrated circuits, MOSFETs, and signal lines in consumer electronics, industrial controls, computer systems, and telecommunication devices.
Designed for sensitive electronics protection against voltage transients. Uni-directional diode configuration with excellent clamping capability. High pulse power and current ratings ensure robust protection. Compact surface mount DO-221 package supports automated assembly.
Wide operating temperature range suitable for varied environments. Low reverse leakage current for efficient operation. Complies with RoHS and industry standards. Applicable across numerous industrial and commercial sectors.
For reliable and efficient transient voltage suppression solutions, explore more Vishay semiconductor components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the Vishay SMA6F90A-M3/H is 600 W.
The dimensions of the DO-221 package are 4.35 mm in length, 2.7 mm in width, and 1 mm in height.
This diode supports a peak pulse current (Ippm) of 21.2 A.
The operating temperature range for this model is from -55°C to 175°C.
The clamping voltage (Vc) of this diode is 146 V.
This model features a uni-directional diode configuration.
The test current (It) for this diode is 1 mA.
Yes, this TVS diode is RoHS compliant, ensuring it meets environmental standards.
This diode is widely used in consumer electronics, industrial controls, computer systems, and telecommunication devices.
The country of origin for the Vishay SMA6F90A-M3/H is India.
