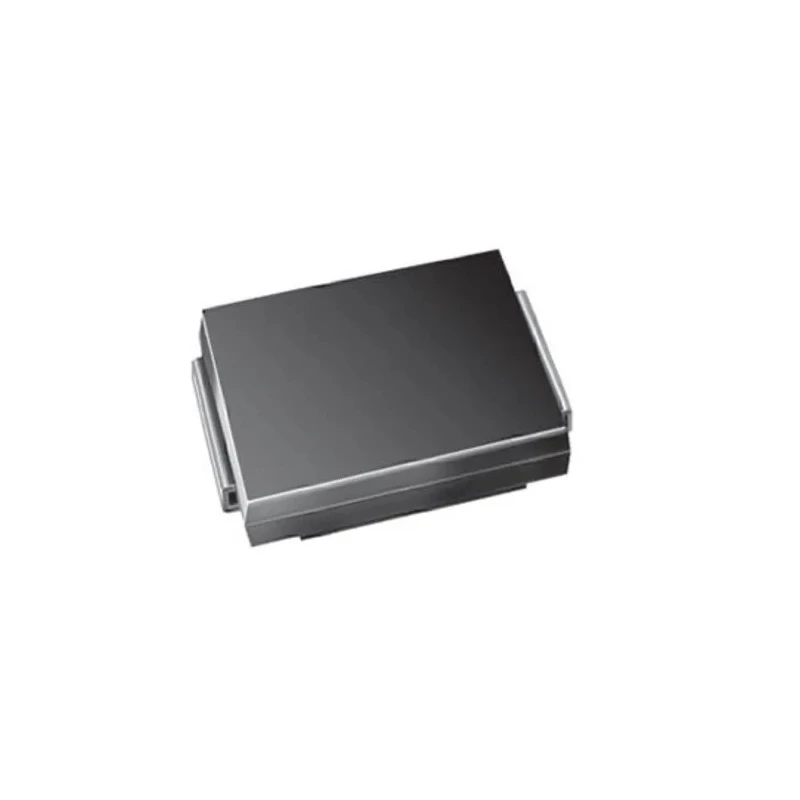

Vishay Uni-Directional TVS Diode Surface Mount DO-214AB 1500 W Peak Pulse Power 1.5SMC9.1CAHM3_A/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 6.22mm |
| Length | 7.11mm |
| Model | 1.5SMC9.1CAHM3_A/H |
| Width | 2.62mm |
| Mount Type | Surface |
| Series | 1.5SMC |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Clamping Voltage VC | 13.4V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 8.65V |
| Maximum Reverse Stand-off Voltage Vwm | 7.78V |
| Peak Pulse Power Dissipation Pppm | 1500W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 112A |
Key Features
- Uni-directional diode designed for protection against voltage transients.
- Peak pulse power dissipation of 1500 watts with a 10/1000 μs waveform.
- Minimum breakdown voltage of 8.65 V and clamping voltage of 13.4 V.
- Maximum peak pulse current of 112 A ensures robust surge handling capability.
- Surface mount DO-214AB (SMC) package suitable for automated placement.
- Operational temperature range from -65°C up to 150°C.
- Glass passivated chip junction ensures reliability and low incremental surge resistance.
- AEC-Q101 qualified for automotive applications and compliant with RoHS standards.
Product Description
Vishay 1.5SMC9.1CAHM3_A/H Uni-Directional TVS Diode is engineered for transient voltage suppression in sensitive electronic applications, delivering a peak pulse power dissipation of 1500 watts. Packaged in a compact DO-214AB surface mount case, it offers a reliable solution for protecting ICs, MOSFETs, and sensor lines from voltage spikes caused by inductive load switching and lightning surges.
This diode features a minimum breakdown voltage of 8.65 V and a maximum reverse stand-off voltage of 7.78 V, providing effective clamping at 13.4 V. It supports a maximum peak pulse current of 112 A and a fast response time with low incremental surge resistance to ensure optimum protection.
Designed for demanding environments, it operates in a wide temperature range from -65°C to 150°C. Its glass passivated chip junction enhances durability and reliability for industrial, automotive, telecommunications, and computer applications.
The device is RoHS compliant and AEC-Q101 qualified, making it suitable for stringent automotive standards. The low-profile DO-214AB package enables easy automated placement on printed circuit boards.
Dimensions are 7.11 mm length, 6.22 mm height, and 2.62 mm width, supporting space-efficient design. Uni-directional transient voltage suppression diode. 1500 W peak pulse power dissipation capability. 8.65 V minimum breakdown voltage.
112 A peak pulse current maximum. Surface mount DO-214AB package. Temperature range from -65°C to 150°C. Glass passivated chip junction for stability. RoHS compliant and AEC-Q101 automotive qualified. Compact dimensions for PCB assembly efficiency.
This diode set is ideal for industrial, automotive, telecommunications, computer hardware, and electronic protection solutions. Explore more high-quality TVS Diodes and electronics components on EnvMart for advanced and reliable protection against voltage spikes.
