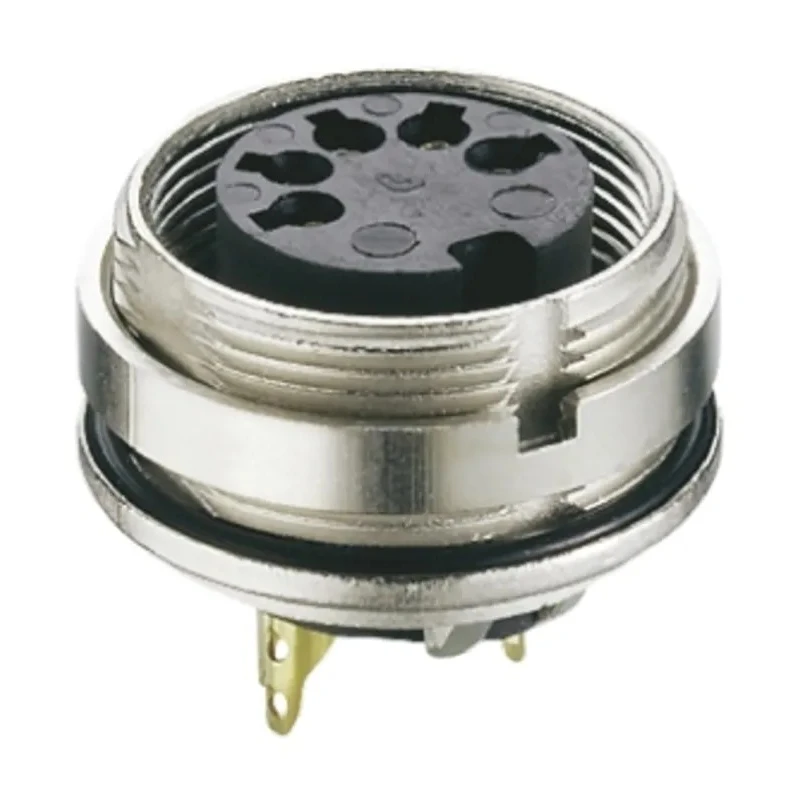

Lumberg 5 Pole Straight M16 DIN Socket Panel Mount Female Threaded Connector 5A 60V AC IP68 0305 05
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 60V ac |
| Brand | Lumberg |
| Orientation | Straight |
| Current | 5A |
| Model | 0305 05 |
| IP Rating | IP68 |
| Mount Type | Panel Mount |
| Housing Material | Die Cast Zinc |
| Contact Material | Brass |
| Series | 305 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 5 |
| Contact Plating | Gold over Silver |
| Number of Contacts | 5 |
| Contact Gender | Female |
| Connector Gender | Female |
| Mating Type | Threaded |
| Connector Size | M16 |
| DIN Number | DIN EN 60529 |
Key Features
- The connector features 5 poles for multi-contact connectivity.
- IP68 rated for dust tight and water immersion protection.
- Constructed with die cast zinc housing for durability.
- Brass contacts plated with gold over silver provide excellent conductivity and corrosion resistance.
- Designed for back side mounting with straight orientation.
- Operates reliably between -40°C and 85°C temperature range.
- Mates via threaded connections complying with DIN EN 60529 standards.
Product Description
Lumberg 0305 05 model 5 Pole Straight M16 DIN Socket is a high-quality panel mount female connector engineered for industrial control, automation technology, and medical instrumentation applications. It features a robust die cast zinc housing and gold over silver-plated brass contacts for long-lasting performance under demanding environmental conditions, complying with DIN EN 60529 IP68 standards.
This chassis socket is designed for back side mounting with a straight orientation and threaded mating for secure connections. It supports 5 poles with a 5A current and 60V AC voltage rating. The connector's solder termination type ensures reliable electrical contact and easy assembly.
Its wide operating temperature range from -40°C to 85°C makes it suitable for harsh industrial environments. The IP68 ingress protection rating guarantees resistance to dust ingress and immersion in water, making it ideal for outdoor and industrial enclosure installations.
The Lumberg 0305 series connectors, including this 5 Pole M16 socket, are widely used in control engineering, automation, and medical device manufacturing due to their proven reliability and performance. It offers secure and stable threaded connections with high-quality materials designed for longevity and optimal electrical performance.
The connector features 5 poles for multi-contact connectivity. Voltage rating of 60V AC with a current of 5A ensures reliable power transmission. IP68 rated for dust tight and water immersion protection. Constructed with die cast zinc housing for durability.
Brass contacts plated with gold over silver provide excellent conductivity and corrosion resistance. Designed for back side mounting with straight orientation. Operates reliably between -40°C and 85°C temperature range. Mates via threaded connections complying with DIN EN 60529 standards.
Explore our selection of DIN Connectors for industrial and automation applications at EnvMart to find compatible components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this model is 60V AC.
It can handle a current of 5A.
The housing is made of die cast zinc, and the contacts are brass plated with gold over silver.
It operates reliably between -40°C and 85°C.
This model is designed for panel mounting with a straight orientation.
It uses a solder termination type for reliable electrical contact.
It features 5 poles for multi-contact connectivity.
It mates via threaded connections, complying with DIN EN 60529 standards.
The connector features female contacts.
It is widely used in industrial control, automation technology, and medical instrumentation applications.
The country of origin for this model is India.
