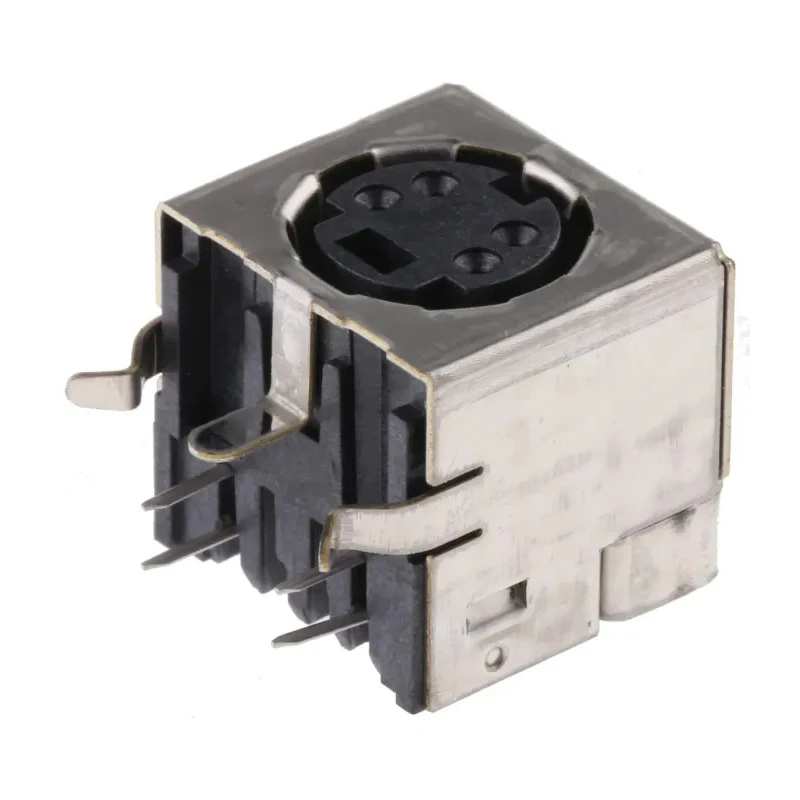

TE Connectivity Mini DIN 4 Pole Right Angle Miniature DIN Socket 30V 500mA Through Hole Female 5749181-1
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 30V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 500mA |
| Mount Type | Through Hole |
| Housing Material | Polymer |
| Contact Material | Copper Alloy |
| Series | Mini DIN |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Shield Type | Shielded |
| Pole Format | 4 |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector Gender | Female |
| Mating Type | Keyed |
| Connector Size | Miniature |
Key Features
- Features 4 female contacts with gold-plated copper alloy material to ensure reliable conductivity.
- Right angle orientation allows for space-saving PCB designs and ease of assembly.
- Uses keyed mating type to prevent mismating and ensure correct connector alignment.
- Housings are made from black thermoplastic polymer with 94V-0 flammability rating for durability and safety.
- Operates reliably within a wide temperature range from -55°C to 105°C suitable for various environments.
- Provides tin over nickel shielding for protection against electromagnetic interference.
- Compatible with through hole mounting technique for secure PCB attachment.
- Miniature size connector ideal for compact electronic applications.
Product Description
TE Connectivity 5749181-1 Mini DIN 4 Pole Right Angle Miniature DIN Socket is a highly reliable shielded circular connector designed for printed circuit board (PCB) mounting. Rated for 30 volts and 500 milliamperes, this connector features 4 female gold-plated copper alloy contacts arranged in a keyed mating configuration to prevent incorrect connections. The connector's right angle orientation allows for efficient space utilization on PCBs and helps simplify assembly processes.
The connector housing is constructed from durable black thermoplastic polymer with a 94V-0 flammability rating, making it resistant to flame and heat. Operating temperature ranges from -55 degrees Celsius to 105 degrees Celsius, enabling its use in harsh environmental and industrial settings. Tin over nickel shielding reduces electromagnetic interference ensuring signal integrity.
The product uses through hole solder termination to ensure secure and lasting connections to circuit boards. Its miniature size makes it suitable for compact electronic devices and systems where space is limited.
TE Connectivity's range of Mini DIN connectors includes multiple mounting and orientation options. This particular right angle version aids in creating secure and efficient electronic assemblies, ensuring durability and performance reliability.
Features 4 female plated contacts for robust electrical connection. Provides keyed mating to avoid mismating and damage. Right angle design for optimized PCB layout. Operating Temperature Range: -55°C to 105°C. Housing material certified 94V-0 polymer for safety.
Tin over nickel shielding reduces EMI interference. Through hole mounting type for stable PCB integration. Miniature circular connector format for space saving. Applications in electronic, industrial, and manufacturing sectors.
Made in China adhering to quality manufacturing protocols.
Choose TE Connectivity connectors for robust and reliable electronic interconnections suitable for demanding industrial and commercial applications. Explore more DIN Connectors and related industrial components at EnvMart to find the right product for your technical needs.
