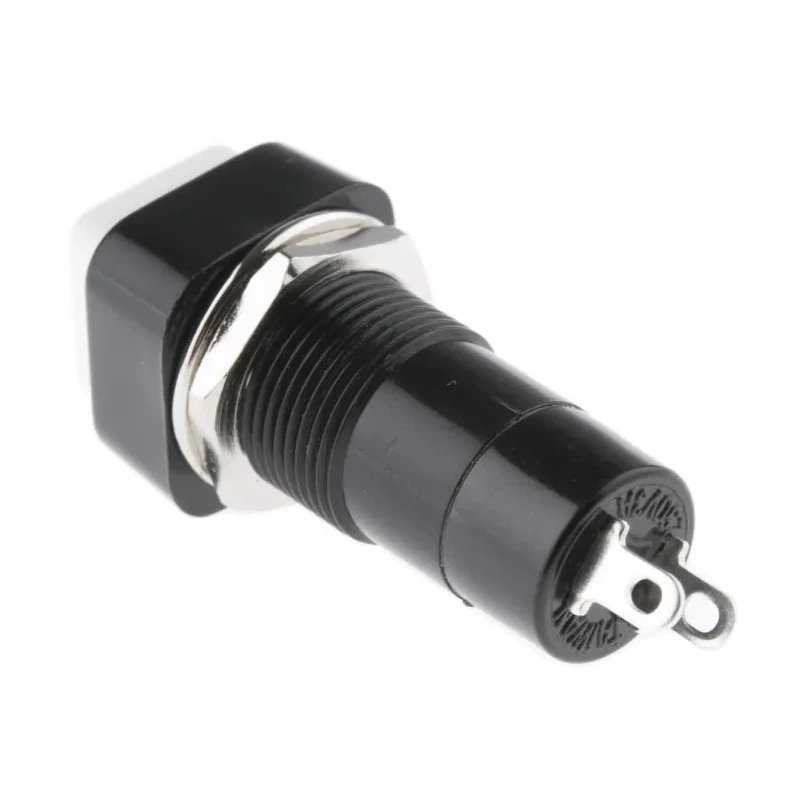

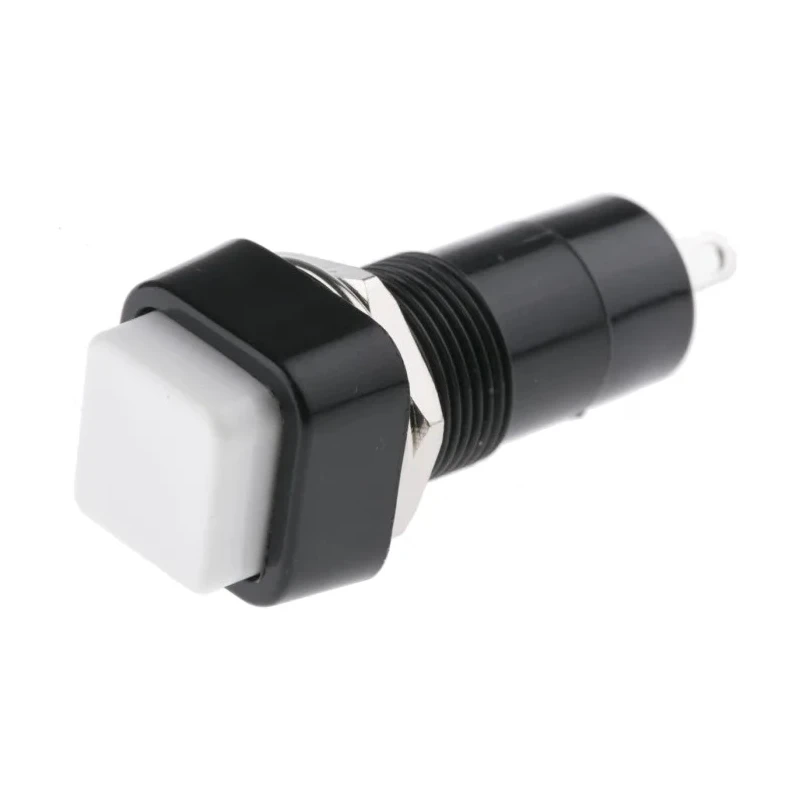

Lumberg Push Button Switch Panel Mount 12 mm Cutout SPST Latching IP40 IP67 250 V ac PBS-001A-1

Name: Lumberg Push Button Switch Panel Mount 12 mm Cutout SPST Latching IP40 IP67 250 V ac PBS-001A-1
Brand: LUMBERG
SKU: 425594
Price: 750.51 INR
Availability: InStock



Category Push Button Switch Brand LUMBERG Condition New

Specifications

Country of Origin	Taiwan
Brand	Lumberg
Model	PBS-001A-1
IP Rating	IP40, IP67
Mount Type	Panel
Series	PBS-001A
Maximum Operating Temperature	120°C
Contact Configuration	SPST
Switch Configuration	On-Off
Panel Cutout Size	12 mm
Terminal type	Solder
Standards/Approvals	UL, CSA
Switch Operation	Latching
Actuator Colour	Cream
Actuator Style	Button
Switch Contact Current	3A
Contact AC Voltage	250V ac
Lumberg Push Button Switch, Alternate, Panel Mount, 12mm Cutout, SPSTBrand	Lumberg

Key Features

The switch features a cream-colored nylon actuator button.
Designed for panel mounting with solder tag termination.
Offers a square faced 15.5 mm bezel for secure fitment.
Suitable for on-off switching with mechanical life exceeding 10,000 operations.
Rated for a maximum operating temperature of 120°C.
Switch contact current rating is 3 A AC, meeting UL and CSA standards.
Provides robust IP40 and IP67 ingress protection for harsh environments.
Manufactured with an ABS switch body for durability.

Product Description

Lumberg PBS-001A-1 push button switch is a high-quality panel-mounted latching switch designed for reliable electrical control applications requiring a 12 mm cutout. It features a cream-colored nylon button actuator mounted on an ABS body, protected with IP40 and IP67 ratings, making it suitable for industrial and automation equipment exposed to dust and moisture.

The switch uses a single-pole single-throw (SPST) contact configuration with on-off latching operation, enabling secure circuit activation. It is rated for 250 V AC voltage and 3 A contact current, complying with UL and CSA safety standards, ensuring safe and durable electrical switching.

Mounting is by panel installation with solder tag terminals for straightforward wiring. The switch bezel is square faced at 15.5 mm, providing a neat and robust fit into operator control panels.

Mechanical durability extends beyond 10,000 operations, supporting long-term use in manufacturing, electrical panels, HVAC controls, and instrumentation. Its maximum operating temperature rating of 120°C allows use in demanding environments.

Applications include industrial control systems, automation panels, machinery start/stop functions, and other electrical switch controls requiring a compact, reliable push button actuator. Its IP rated housing protects internal components from dust ingress and water jets.

The actuator button is cream in color and does not feature illumination. This product offers a latching switch operation with a single contact configuration. Designed to fit a 12 mm diameter panel cutout, suitable for compact installations.

Termination is via solder tags, enabling firm and stable electrical connections. Conforms to IP40 and IP67 ingress protection, supporting use in industrial and harsh environments. Operates safely up to 250 V AC voltage and handles up to 3 A contact current.

Meets UL and CSA certification standards for electrical safety compliance. Robust ABS body construction ensures durability and electrical insulation. Manufactured in Taiwan, Province Of China. Browse EnvMart’s extensive selection of Push Button Switches for suitable components in your electrical control and automation projects.
