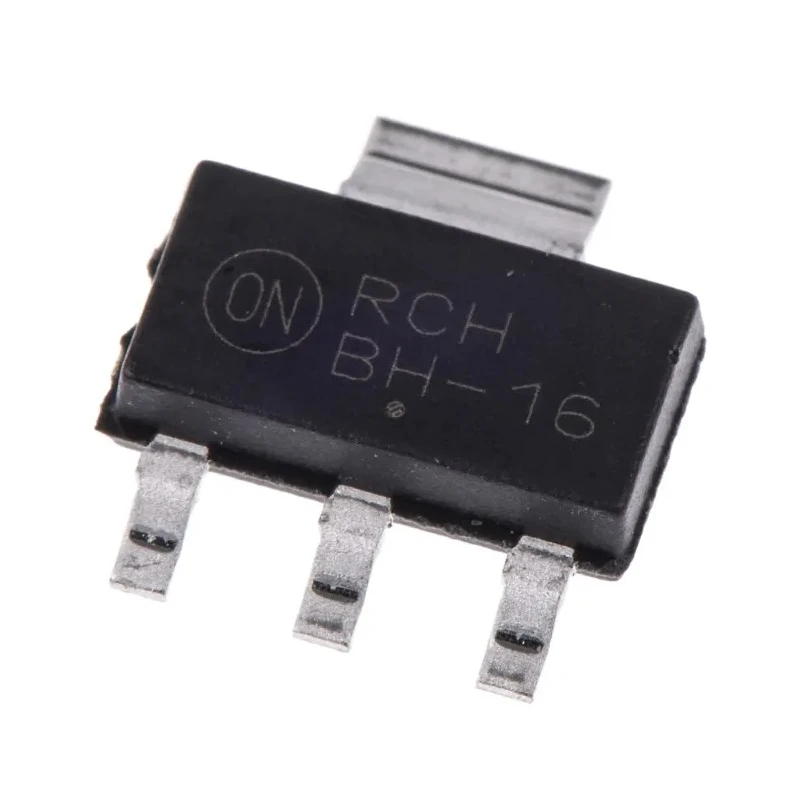

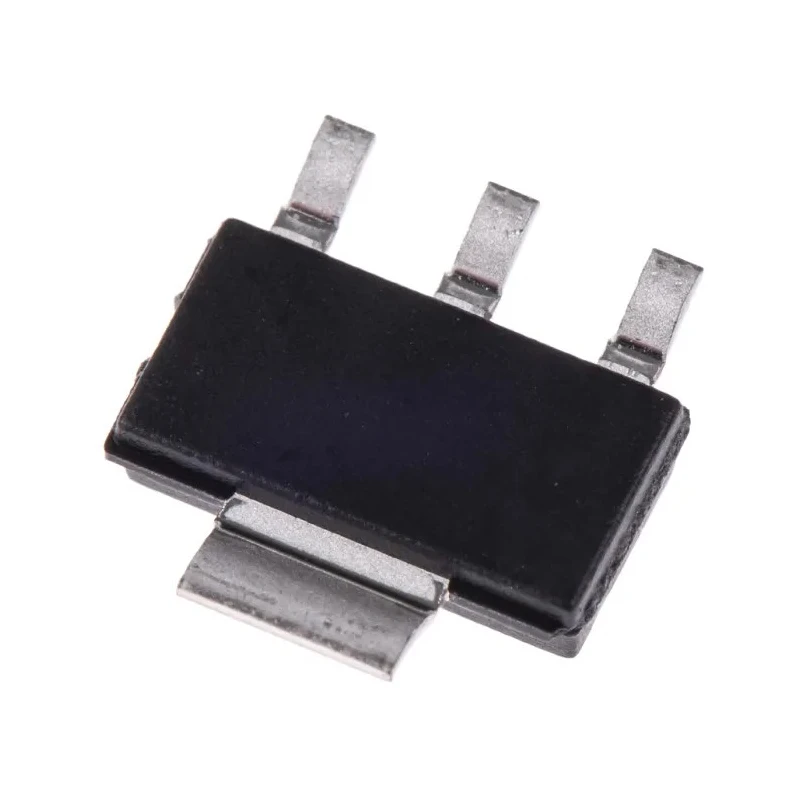

onsemi NPN Bipolar Transistor BCP56-16T1G, 1A, 80V, SOT-223, Surface Mount, 4-Pin

The onsemi BCP56-16T1G is a versatile NPN bipolar transistor engineered for demanding surface-mount applications requiring robust performance and reliability. With its SOT-223 package and surface-mount design, this device can be easily positioned onto printed circuit boards for efficient signal amplification, switching, and current control in a variety of electronic and industrial contexts.

Rated for a maximum collector current of 1A and a collector-emitter voltage of 80V, the BCP56-16T1G accommodates moderate voltage and current loads typically encountered in power management, signal amplification, and driving loads in industrial, automotive, and commercial systems. Its power dissipation of 1.5W ensures sound thermal management for dense circuit environments.

This transistor's NPN configuration, combined with a minimum DC current gain of 25, makes it well-suited for amplification circuits and switching operations, where reliable current transfer is critical. The device supports a maximum transition frequency of 130MHz, enabling fast response to input signals, which is valuable in high-speed electronics.

The SOT-223 package features four pins for secure surface mount integration, and the single transistor configuration simplifies PCB layout and assembly. The device is built to operate efficiently across a broad temperature range from -65°C to 150°C, making it suitable for both laboratory and rugged field applications.

Manufactured under the AEC-Q101 automotive standard, the BCP56-16T1G is qualified for automotive systems requiring enhanced reliability and compliance. Other applications include HVAC controls, industrial automation, consumer electronics, and embedded systems.

Its compact physical dimensions - 6.7mm in length, 3.7mm in width, and 1.75mm in height - enable integration into space-constrained designs, while its surface-mount form factor ensures ease of assembly in production environments.

General-purpose NPN bipolar transistor suitable for up to 1A current applications. 80V maximum collector emitter voltage rated for moderate power requirements. Surface mount SOT-223 package for integration on PCBs. Maximum power dissipation of 1.5W supports various electronic designs.

Operates reliably from -65°C to 150°C for wide thermal management scenarios. Single transistor configuration with polarity NPN. Features a minimum DC current gain of 25 and transition frequency up to 130MHz. Complies with AEC-Q101 automotive standard for enhanced reliability.

Typical use cases span industrial electronics, automotive modules, power regulation, signal switching, and amplification. Browse more onsemi Bipolar Transistors and related semiconductors in the EnvMart category for electronic components, power devices, and discrete semiconductors.
