Nexperia Resistor-Equipped NPN Transistor 100 mA, 50 V, 3-Pin TO-236 PDTC114ET,235

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Resistor-Equipped NPN Transistor 100 mA, 50 V, 3-Pin TO-236 PDTC114ET,235

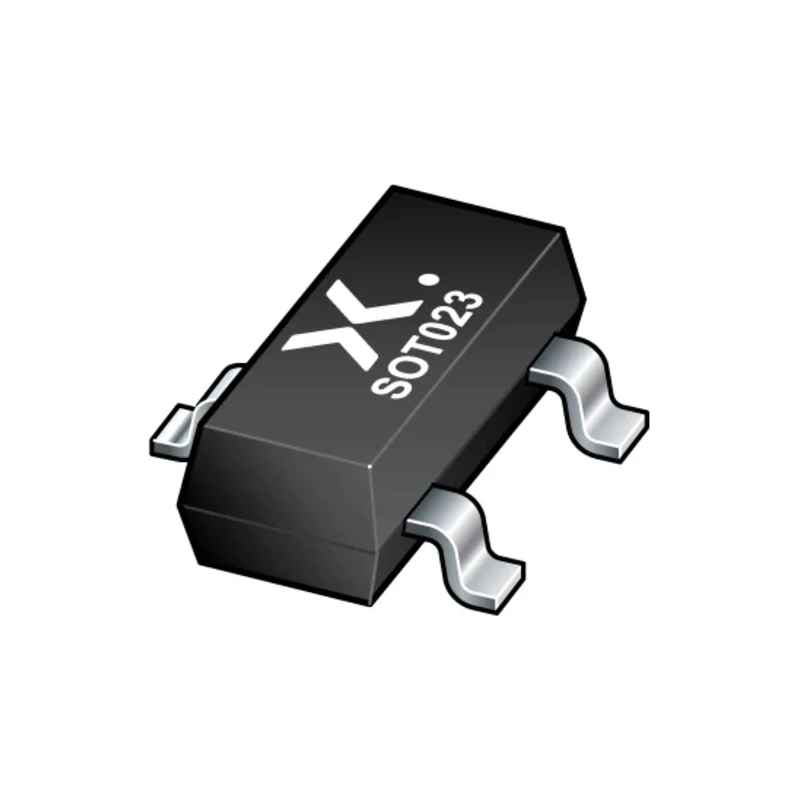

Name: Nexperia Resistor-Equipped NPN Transistor 100 mA, 50 V, 3-Pin TO-236 PDTC114ET,235
Brand: Nexperia
SKU: 414852
Price: 0.02 USD
Availability: InStock



Category Bipolar Transistors Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.1mm
Length	3mm
Model	PDTC114ET,235
Width	1.4mm
Mount Type	Surface
Series	PDTC114E
Maximum Operating Temperature	150°C
Package Type	TO-236
Minimum Operating Temperature	-65°C
Pin Count	3
Maximum Collector Emitter Voltage Vceo	50V
Minimum DC Current Gain hFE	30
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	10V
Maximum Collector Base Voltage VCBO	50V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	250mW
Maximum DC Collector Current Idc	100mA
Transistor Configuration	Single
onsemi MMUN2211LT1G Digital Transistor, 50 V NPN Surface SOT-23, 3-PinBrand	onsemi

Key Features

This transistor provides a 100 mA maximum DC collector current capability.
It features a maximum collector emitter voltage of 50 V to withstand moderate voltages.
Equipped with built-in bias resistors to simplify circuit design and reduce component count.
The compact TO-236 surface mount package facilitates automated placement and space savings.
Designed for operation in a temperature range from -65°C to 150°C, suitable for harsh environments.
Ideal for digital applications in automotive and industrial sectors as a cost-effective alternative in switching loads.
Compatible with control of integrated circuit inputs to improve design efficiency.

Product Description

Nexperia PDTC114ET,235 Resistor-Equipped NPN Transistor is a surface-mounted device in a compact TO-236 plastic package. It supports a collector current of up to 100 mA and a maximum collector emitter voltage of 50 V, making it suitable for various automotive and industrial digital control applications.

The transistor integrates built-in bias resistors, which simplify circuit designs by reducing external components needed for biasing and consequently lowering the overall component count and assembly costs. Its 3-pin surface mount form factor enables automated pick and place, enhancing production efficiency and reducing footprint.

This NPN bipolar transistor features a minimum DC current gain of 30, maximum power dissipation of 250 mW, and a maximum emitter base voltage of 10 V. It operates safely within temperatures ranging from -65°C to 150°C, making it robust enough for demanding environments.

Common use cases include digital load switching, control of integrated circuit inputs, and serving as a cost-saving alternative to similar BC847/857 transistor series in automotive and industrial electronics segments.

This transistor supports a 100 mA collector current, suitable for low power signal switching. The device is housed in a space-efficient 3-pin TO-236 package optimized for surface mount technology. Built-in bias resistors help reduce the number of external components for simplified circuit layouts.

Rated to operate at temperatures from -65°C to 150°C ensuring reliability in automotive and industrial contexts. The transistor offers a maximum power dissipation of 250 mW for stable performance in switching applications.

Designed according to automotive standard AEC-Q101, ensuring high quality and reliability required by the automotive industry. Its compact dimensions of 3 mm length, 1.4 mm width, and 1.1 mm height facilitate integration into dense PCB layouts.

Explore EnvMart to find a broad range of Bipolar Transistors and semiconductor components from leading manufacturers like Nexperia, suitable for advanced electronic designs and industrial applications.
