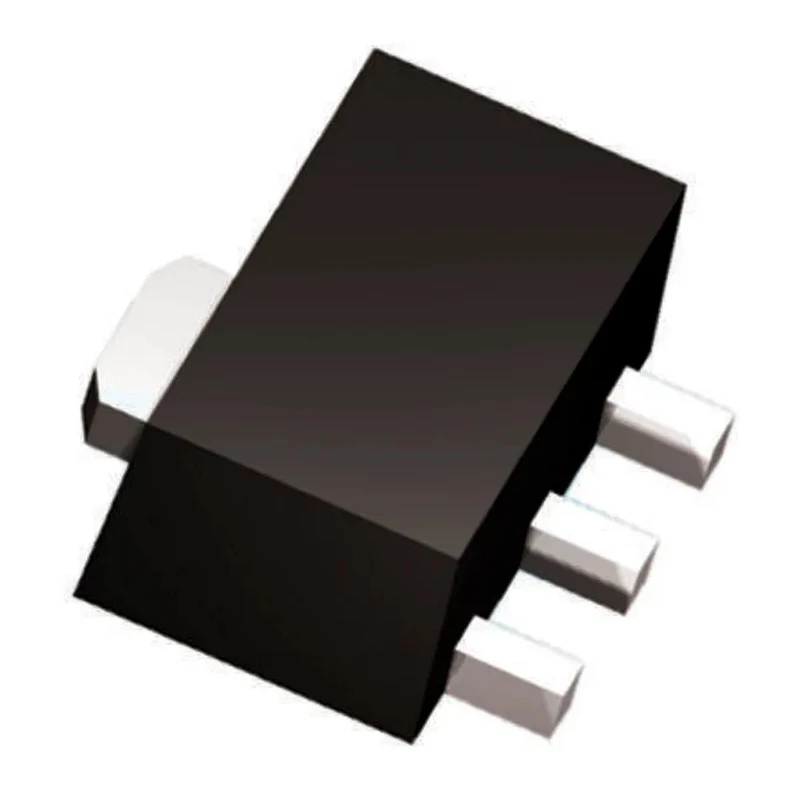

Nexperia NPN Transistor 1 A 60 V 4-Pin Surface Mount UPAK Package BCX55-10,115

Nexperia BCX55-10,115 is a specialized general purpose NPN bipolar transistor designed for surface mounting in electronic circuits, capable of handling a maximum collector current of 1 ampere and a collector-emitter voltage of 60 volts. Packaged in a small 4-pin UPAK format, it is ideal for integration in space-constrained environments requiring reliable and efficient switching performance.

This transistor features a minimum DC current gain of 40, a maximum power dissipation rating of 1.25 watts, and a high transition frequency of 180 MHz, making it suitable for amplification and high-frequency signal processing tasks in industrial, automotive, and consumer electronics applications. The device operates effectively over a broad temperature range from -55°C to 150°C, ensuring robustness in harsh or varying conditions.

Its compliance with RoHS directives and certified automotive standard AEC-Q101 guarantees environmental safety and quality for use in automotive electronics and other critical applications. The compact dimensions (length 4.6 mm, width 2.6 mm, height 1.6 mm) make this transistor an excellent choice for modern PCB designs where space optimization is critical.

Supports continuous collector current up to 1 ampere ensuring reliable performance. Maximum collector-emitter voltage of 60 volts for robust voltage handling. Surface mount UPAK package with a compact 4-pin design for efficient PCB integration.

Wide operating temperature range from -55°C to 150°C for durable operation. Minimum DC current gain of 40 for effective amplification. Maximum power dissipation of 1.25 watts ensures thermal stability. High transition frequency of 180 MHz suitable for high-frequency applications.

RoHS compliant and meets automotive AEC-Q101 quality standard. Compact dimensions ensure suitability for space-constrained electronic designs.

This transistor is widely used in electronic component manufacturing, automotive systems, industrial equipment, and consumer electronics for switching and amplification functions. Its combination of robust electrical characteristics and industry-standard certifications facilitates reliable, long-term operation in demanding industrial and commercial applications.

Explore the extensive range of Nexperia Bipolar Transistors in the EnvMart catalogue for additional options and technical resources to optimize your electronic design projects.
