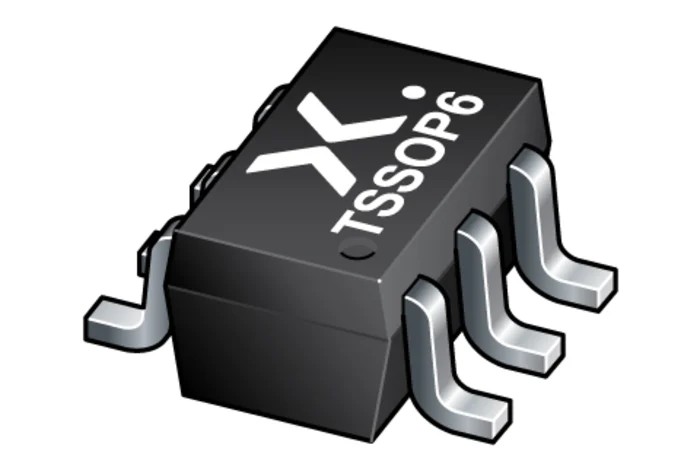

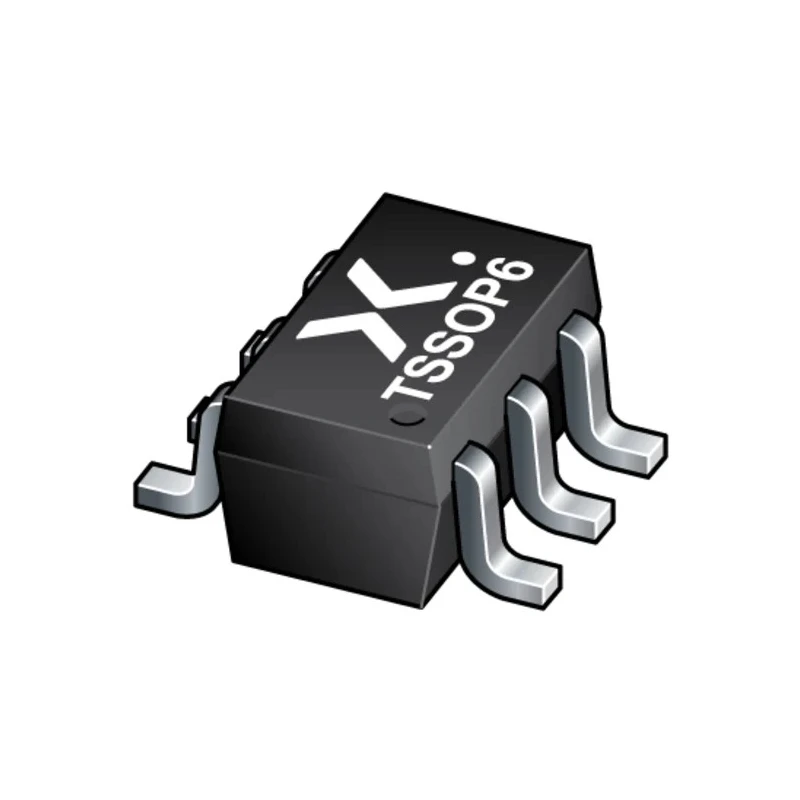

Nexperia Bipolar Transistor 100 mA NPN + PNP 45 V 6-Pin SOT-363 BC847BPN,135

The Nexperia BC847BPN,135 is a dual bipolar transistor designed for general-purpose switching and amplification in electronic and electrical circuits. This device integrates both NPN and PNP transistors in a single, highly compact SOT-363 surface mount package, featuring six pins. The combined transistor configuration functions as a current mirror, which provides closely matched transistor pairs that reduce component count and simplify circuit design.

With a maximum DC collector current of 100 mA and a collector-emitter voltage rating of 45 V, the BC847BPN,135 transistor meets the demands of moderate power applications. It offers a maximum power dissipation of 400 mW, enabling reliable performance with effective heat management in compact assemblies.

Operating reliably within a wide temperature range from -65°C to 150°C, this transistor suits industrial, automotive, and general electronic environments. It has a minimum DC current gain of 200, ensuring strong amplification. The transistor’s low collector capacitance and low collector-emitter saturation voltage further enhance switching speed and efficiency.

Compact dimensions (2.2 mm length, 1.35 mm width, and 1.1 mm height) enable high-density PCB layouts and minimize board space usage, which is critical in modern electronic devices.

Key applications include general switching, amplification, and current mirror configurations in electronic circuits across industrial controls, consumer electronics, automotive systems, and communication equipment.

Supports a maximum collector current of 100 mA. Rated for 45 V maximum collector-emitter voltage. Small 6-pin SOT-363 surface mount package for compact PCB footprints. Current mirror transistor configuration provides matched NPN and PNP pairs.

Power dissipation up to 400 mW enables efficient operation. Operates over a broad temperature range from -65°C to 150°C. Minimum DC current gain (hFE) of 200 for enhanced amplification. Low collector capacitance improves switching performance.
