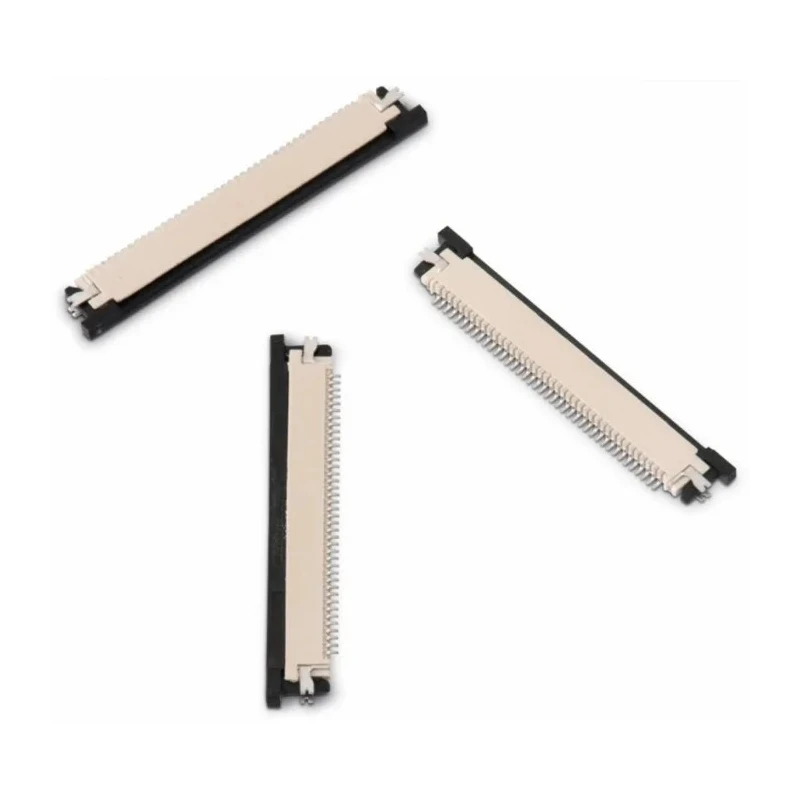

Wurth Elektronik WR-FPC 0.5 mm Pitch 33 Way Horizontal Female FPC Connector Surface Mount 687133183622
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V ac |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 400mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 33 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Top |
Key Features
- Low profile design ideal for high density applications.
- Flip lock actuator enables easy insertion and secure locking of the FPC.
- Contains 33 contacts made of phosphor bronze with tin over nickel plating.
- Supports operating voltage of 50V AC and current of 400mA.
- Constructed with liquid crystal polymer housing for durability.
- Surface mount type with horizontal orientation and top contact position.
- Suitable for miniaturized electronics including displays and touch panels.
- Operating temperature range from -25°C to 85°C ensures reliability in harsh environments.
Product Description
Wurth Elektronik 687133183622 33 Way Horizontal Female FPC Connector Surface Mount is a low profile, 0.5 mm pitch Zero Insertion Force (ZIF) connector designed for high density PCB applications. It features a flip lock actuator that allows for easy insertion and secure retention of flexible printed circuits, providing reliable electrical and mechanical connections.
This connector includes 33 contacts made from phosphor bronze with tin over nickel plating for enhanced conductivity and corrosion resistance. The housing is manufactured from liquid crystal polymer, offering durability and stability under diverse operating conditions.
The surface mount, horizontal orientation with a top contact position supports compact PCB layouts. It is rated for a current of 400mA and an operating voltage of 50V AC. The connector is designed for operating temperatures ranging from -25°C to 85°C, suitable for a variety of industrial, consumer electronics, medical, and automation applications.
Additional features include brass solder tabs for secure PCB retention and 1 row configuration for easy integration. The ZIF locking mechanism minimizes damage during repeated insertions, making it ideal for displays, touch panels, tablets, mobile devices, and industrial equipment.
Low profile design provides an excellent solution for space-constrained applications. Flip lock actuator ensures easy and reliable FPC insertion and retention. Phosphor bronze contacts with tin over nickel plating enhance longevity and performance.
Liquid crystal polymer housing assures mechanical robustness. Supports 33-way connections with surface mount technology for soldering ease. Wide operating temperature range maintains performance in varied conditions. Compatible with consumer electronics, industrial automation, and medical devices.
ZIF mechanism reduces insertion force and enhances connector life.
Choose Wurth Elektronik connectors for reliable, compact, and flexible PCB interconnections. Explore our extensive catalog for more electronic components and connectors designed to meet modern application demands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector is 0.5 mm, making it suitable for high-density applications.
It features 33 contacts, which are made from phosphor bronze with tin over nickel plating for enhanced conductivity.
The maximum operating temperature is 85°C, allowing it to function reliably in various environments.
This connector is rated for a current of 400mA, suitable for a range of applications.
It utilizes a surface mount type, which facilitates easy soldering onto PCBs.
The housing is constructed from liquid crystal polymer, providing durability and stability.
The connector has a horizontal orientation, which is ideal for compact PCB layouts.
It supports an operating voltage of 50V AC, making it suitable for various electronic applications.
It features a Zero Insertion Force (ZIF) mechanism that minimizes damage during repeated insertions.
This model is suitable for miniaturized electronics, including displays, touch panels, tablets, and mobile devices.
The minimum operating temperature is -25°C, ensuring reliable performance in colder environments.
It has a top contact position, which aids in the efficient connection of flexible printed circuits.
