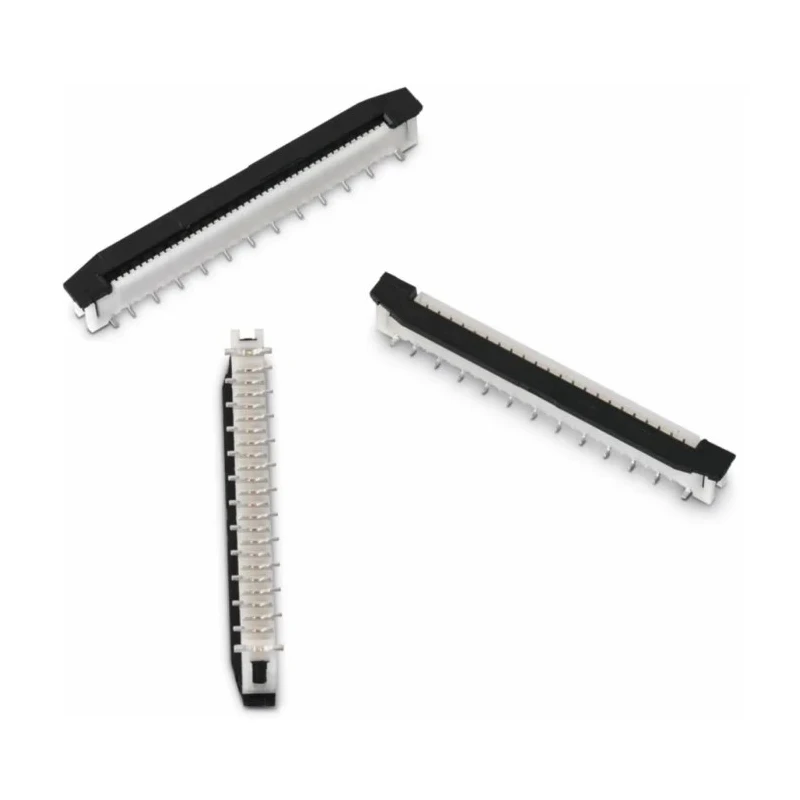

Wurth Elektronik WR-FPC 1 mm Pitch 12 Way Vertical Female FPC Connector ZIF Vertical Contact 686112183822

Wurth Elektronik 686112183822 is a high-quality FPC Connector featuring a 1 mm pitch and 12-way vertical female contacts terminated with ZIF vertical contact technology. This surface mount connector from the WR-FPC series offers a compact design ideal for high density electronic assemblies such as displays, touch panels, and screens.

The connector utilizes phosphor bronze contact material and tin over nickel plating for enhanced electrical conductivity and corrosion resistance. The slide lock actuator mechanism enables easy insertion of flexible printed circuits with reliable electrical and mechanical retention.

Rated for a current of 1 ampere and voltage of 125V AC, this connector performs efficiently in environments with operating temperatures ranging from -25°C to 85°C. Its single row configuration and vertical orientation optimize PCB space and ease of assembly.

This product complies with RoHS standards, reflecting Wurth Elektronik's commitment to environmentally friendly manufacturing practices. Typical applications span consumer electronics including personal computers, tablets, mobile phones, cameras, industrial and medical equipment.

Features a slide lock actuator for easy insertion and high retention force. Constructed with phosphor bronze contacts for excellent durability. Supports 1A current and 125V AC voltage ratings. Surface mount type with vertical orientation for compact PCB layout.

RoHS compliant for environmental safety. Operating temperature between -25°C and 85°C for wide application range. Tin over nickel plating ensures corrosion resistance. Single row, 12 contacts female connector. Explore more from Wurth Elektronik and browse the FPC Connector category at EnvMart for complementary components and accessories.
