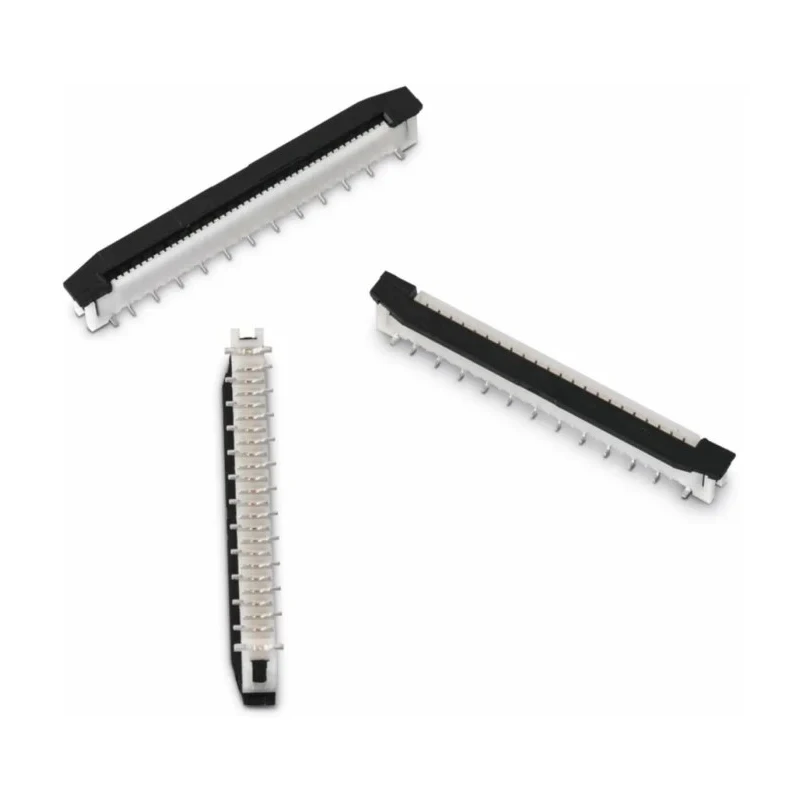

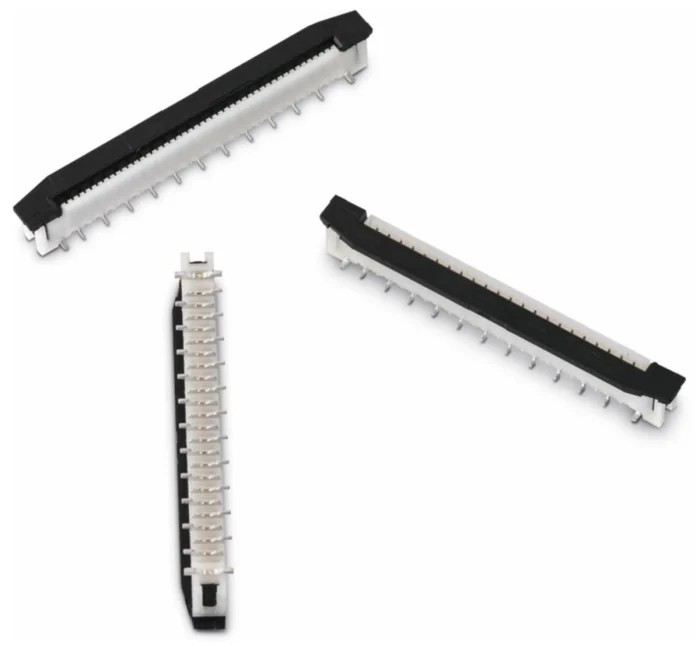

Wurth Elektronik WR-FPC 1 mm Pitch 16 Way Vertical Female FPC Connector ZIF Vertical Contact 686116183822

Wurth Elektronik 686116183822 is a 16-way vertical female FPC connector with a compact 1 mm pitch designed for surface mounting and high-density electronic assembly applications. This ZIF vertical contact connector belongs to the WR-FPC series, featuring a slide lock actuator for effortless insertion and secure retention of flexible printed circuits. The connector contacts are made from phosphor bronze and plated with tin over nickel, ensuring reliable electrical performance and durability.

Operating at a voltage rating of 125V AC and a current rating of 1A, this connector withstands minimum and maximum operating temperatures ranging from -25°C to 85°C. It supports a single row configuration and incorporates a locking mechanism to maintain stable mechanical and electrical engagement under vibrational or thermal stress.

The compact and robust design makes it ideal for miniaturized, high-density applications, such as displays, touch panels, personal computing devices, tablets, mobile phones, cameras, as well as industrial equipment and medical devices. The WR-FPC series connectors are designed to meet stringent quality and RoHS compliance standards.

The ZIF mechanism reduces the risk of damage during cable insertion, enhancing assembly efficiency and product longevity. The slide lock actuator allows easy opening to insert the FPC and secure closure for firm connection. This combination optimizes performance in sensitive electronic environments.

Wurth Elektronik connectors provide versatile solutions for manufacturers seeking reliable, compact connectors suitable for modern electronic device requirements. Compact 1.0 mm pitch design suitable for high-density applications.

16 contacts made of phosphor bronze with tin over nickel plating. Zero Insertion Force (ZIF) vertical contact termination enhances reliability. Slide lock actuator provides secure mechanical and electrical connection. Rated for 1A current and 125V AC voltage operating from -25°C to 85°C.

Single row vertical orientation with locking mechanism for retention. RoHS compliant ensuring environmental safety. Suitable for industrial, consumer electronics, and medical devices. Explore more Wurth Elektronik connectors and FPC Connector options at EnvMart for your electronic component needs.
