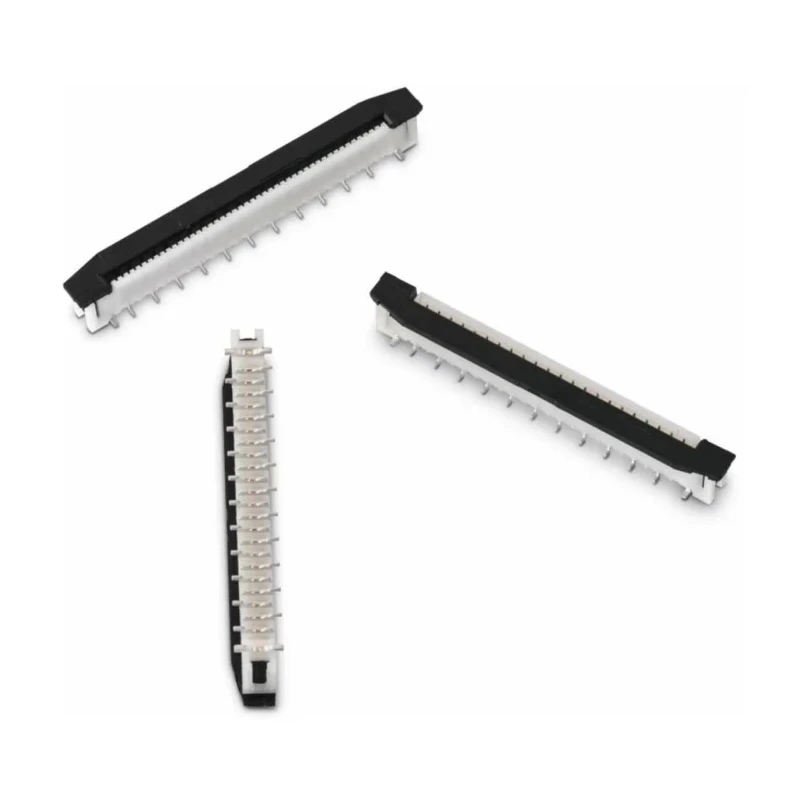

Wurth Elektronik WR-FPC 1 mm Pitch 6 Way Vertical Female FPC Connector Surface Mount 686106183822
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V ac |
| Brand | Wurth Elektronik |
| Orientation | Vertical |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
Key Features
- The connector features a 1.0 mm pitch suitable for high-density applications.
- It has 6 contact points made of phosphor bronze for excellent conductivity.
- The surface mount type allows vertical orientation installation on PCBs.
- Includes a ZIF (Zero Insertion Force) slide lock actuator for easy FPC insertion and secure retention.
- Contact plating is tin over nickel to enhance corrosion resistance and durability.
- The housing material is polyamide, providing robust mechanical strength and insulation.
- Operating temperature ranges from -25°C to 85°C, supporting diverse environmental conditions.
- Designed as part of the WR-FPC series with one row of female contacts.
Product Description
Wurth Elektronik 686106183822 is a high-quality FPC Connector with a 1 mm pitch and 6-way vertical female configuration, designed for surface mount technology (SMT) applications. This WR-FPC series connector includes a slide lock actuator providing zero insertion force (ZIF) for easy insertion and secure retention of flexible printed circuits (FPCs). It is ideal for miniaturized, high-density electronic assemblies.
The contacts are made of phosphor bronze with tin over nickel plating to ensure excellent electrical conductivity and durability. The housing is constructed from polyamide material, offering robust insulation and mechanical strength, making it suitable for demanding industrial environments.
Electrical specifications include a rated voltage of 125V AC and a current carrying capacity of 1 ampere. The operating temperature range from -25°C to 85°C supports reliable operation under varied environmental conditions. The connector is configured with six contacts arranged in a single row, female gender, and features a vertical orientation for PCB mounting.
The sliding lock mechanism enhances connection security by preventing accidental disconnections, making it suitable for critical applications in fields such as consumer electronics, industrial equipment, medical devices, and display technologies.
The connector supports high-density applications with its compact design and 1 mm pitch. Easy FPC insertion with ZIF slider lock enhances assembly efficiency. Durable materials ensure longevity and dependable performance.
Wide operating temperature range accommodates industrial and commercial environments. Secure locking mechanism for reliable electrical and mechanical connections. Ideal for use in consumer, industrial, medical, and display electronics.
This part is a trusted choice in the Wurth Elektronik WR-FPC series, widely used for flexible PCB connections in compact electronic assemblies. Browse more FPC Connectors and related components on EnvMart to find compatible parts and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector features a 1.0 mm pitch, making it suitable for high-density applications.
This model has 6 contact points arranged in a single row, configured as female contacts.
The maximum operating temperature is 85°C, allowing it to function in various environmental conditions.
It supports surface mounting, allowing for vertical orientation installation on PCBs.
The housing is made of polyamide, while the contacts are constructed from phosphor bronze with tin over nickel plating.
The rated voltage is 125V AC, and it has a current carrying capacity of 1 ampere.
It features a Zero Insertion Force (ZIF) slide lock actuator for easy insertion and secure retention of flexible printed circuits.
The minimum operating temperature is -25°C, which supports its use in diverse environments.
This connector is suitable for applications in consumer electronics, industrial equipment, medical devices, and display technologies.
The connector is designed for vertical orientation, which is ideal for compact electronic assemblies.
It utilizes surface mount termination, making it compatible with various PCB designs.
Yes, this connector is part of the WR-FPC series, which is designed for flexible PCB connections.
